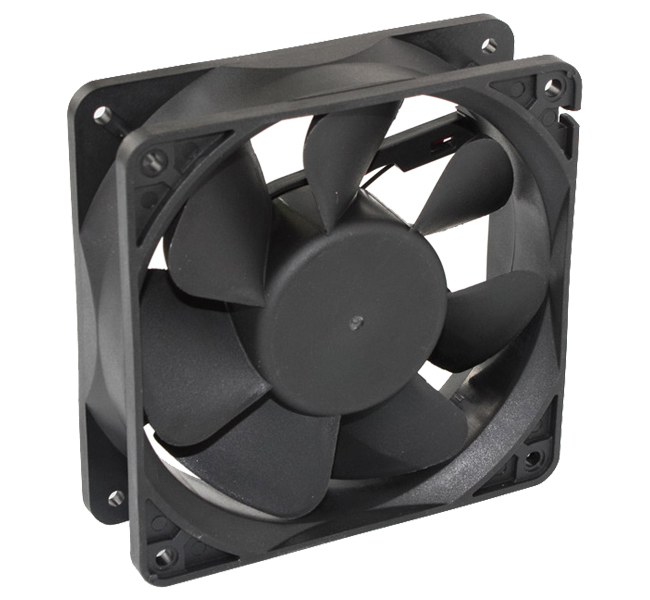

12038 Small DC Axial Fan

This series of fans consists of an aluminum alloy shell, asynchronous motor, single flange cylindrical shell, and fan blades. It has the characteristics of large air volume, low vibration, and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control devices, large electronic equipment, cabinet, electric welding machine, and so on.

power：3.6W-7.2W
Air volume：79.66CFM-119.49CFM
Rotating speed：2400RPM-3000RPM

Please click the inquiry button below to contact us

Click here to inquire
分类： , ,

描述

Ambient Condition:

Temperature:-10C-+60C Sleeve Bearing
-10C-+70C 1 Sleeve& 1 Ball Bearing
-30C-+70C 2 Ball Bearing
Humidity permissible: 65-75%
Atmosperic Pressure: 55Kpa(G) 74.8Kpa(H)
Vibration permissible: Frequence10-55Hz double, amplitude1.5mm
Impact permissible: Peak acceleration )150m/s

Insulation:500V DC less than 100MΩ

Polarity Protection:Circuit is protected when Vcc&GND are exchanged,thecircuit will not be bruned within 10 seconds
Life span:30000hrs(sleeve bearing)(25ºC)  40000hrs(1 sleeve & ball bearing)(25ºC) 50000hrs(2ball bearing)(25ºC)
Fan material:PBT 94ULV
Out casing:PBT 94ULV
Lead Wire:UL 1007 26AWG(+)Red,(-)Black (F)Ysllow



Technique parameters

Model Bearing System Rated Voltage (V) Operation Voltage Current

(A )

 Input Power(W) Speed

(RPM)

 Air Flow

(CFM)

 Static   Pressure  (mm-H2O) Niose Level
(dB-A)		 Weight

(g)
1238H12B(S) Ball Sleeve 12 10.8-13.2 0.6 7.2 3000 119.49 7.81 44.47 265
1238M12B(S) 0.45 5.4 2700 107.54 6.66 41.51
1238L12B(S) 0.3 3.6 2400 79.66 5.26 39.98
1238H24B(S) Ball Sleeve 24 21.6-26.4 0.4 9.6 3000 119.49 7.81 44.47
1238M24B(S) 0.3 7.2 2700 107.54 6.66 41.51
1238L24B(S) 0.2 4.8 2400 79.66 5.26 39.98
