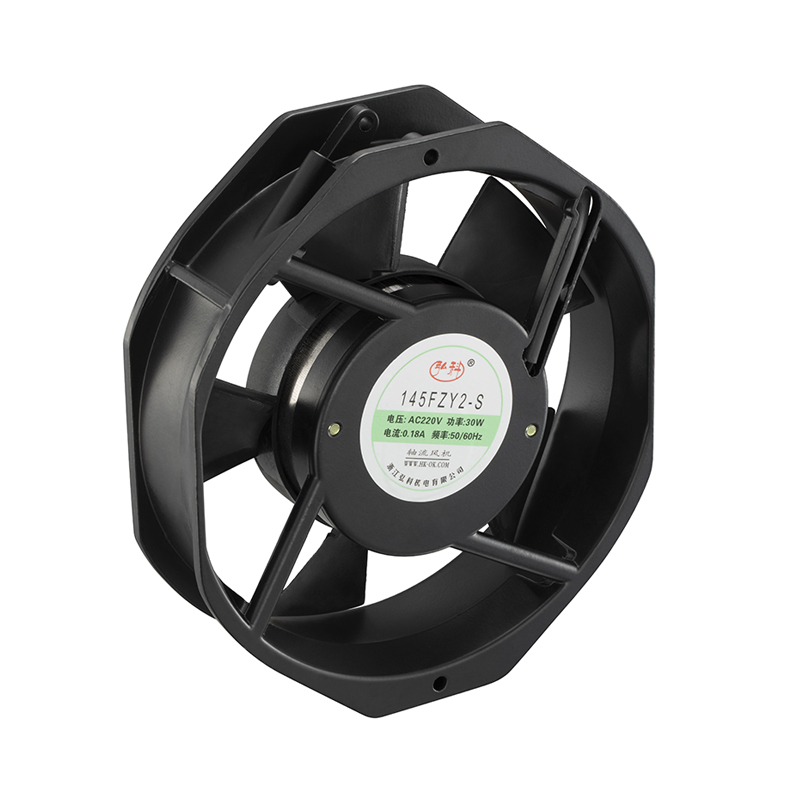

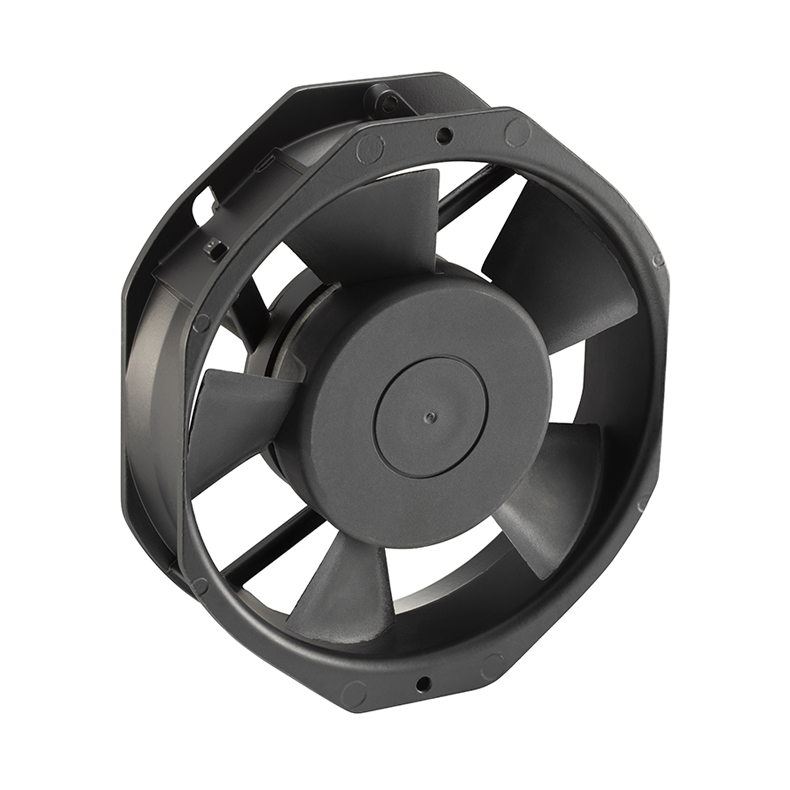

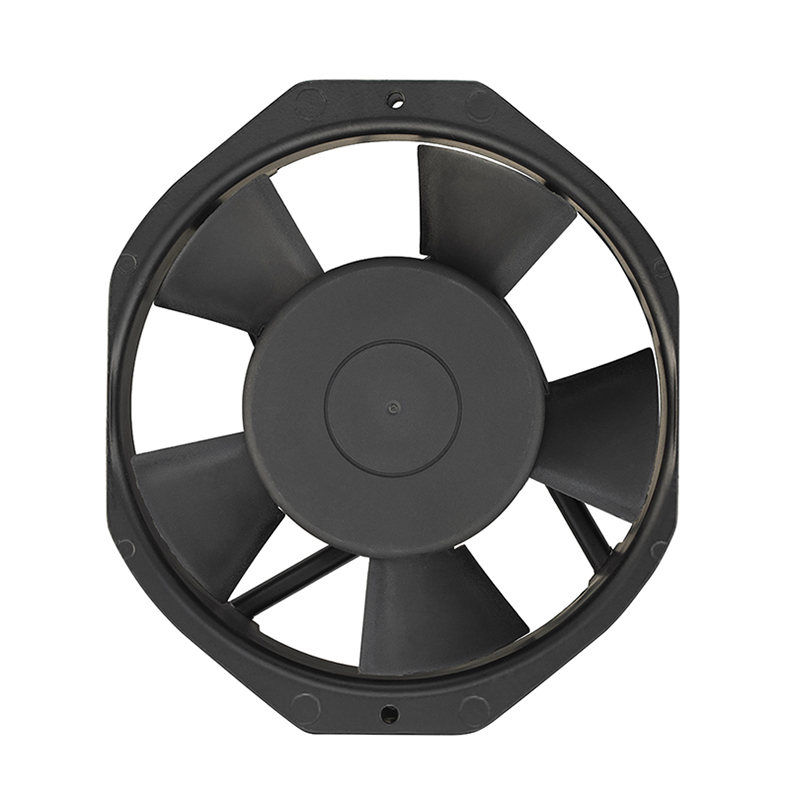

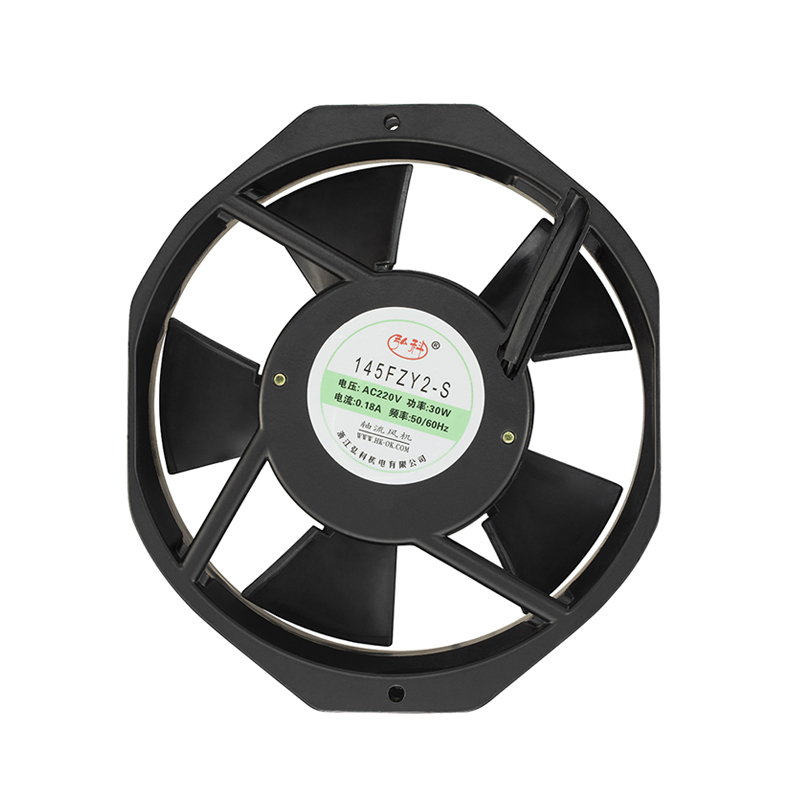

145FZY small axial fan

This series of fans consists of an aluminum alloy shell, asynchronous motor, single flange cylindrical shell, and fan blades. It has the characteristics of large air volume, low vibration, and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control devices, large electronic equipment, cabinet, electric welding machine, and so on.

power：26W-300W
Air volume：159CFM-172CFM
Rotating speed：2400RPM-2600RPM

Please click the inquiry button below to contact us

Click here to inquire
Categories: , ,

Description

Specification:

This series of fans consists of aluminum alloy shell, asynchronous motor, single flange cylindrical shell and fan blades. It has the characteristics of large air volume, low vibration and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control device, large electronic equipment, cabinet, electric welding machine and so on.


Technique parameters

Model Voltage Frequency Current Power Rotating speed Air Volume Noise Capacitance
(UF/VDB)		 Weight
145FZY2-S 220V 50Hz 0.13A 27W 2400RPM 159CFM 52dBA CBB22
1UF/400V		 0.8kg
145FZY2-S 220V 50Hz 0.15A 30W 2600RPM 172CFM 57dBA 0.8kg
145FZY3-S 380V 50Hz 0.1A 26W 2400RPM 159CFM 52dBA CBB21
334J630V		 0.8kg
145FZY3-S 380V 50Hz 0.12A 30W 2600RPM 172CFM 57dBA 0.8kg
