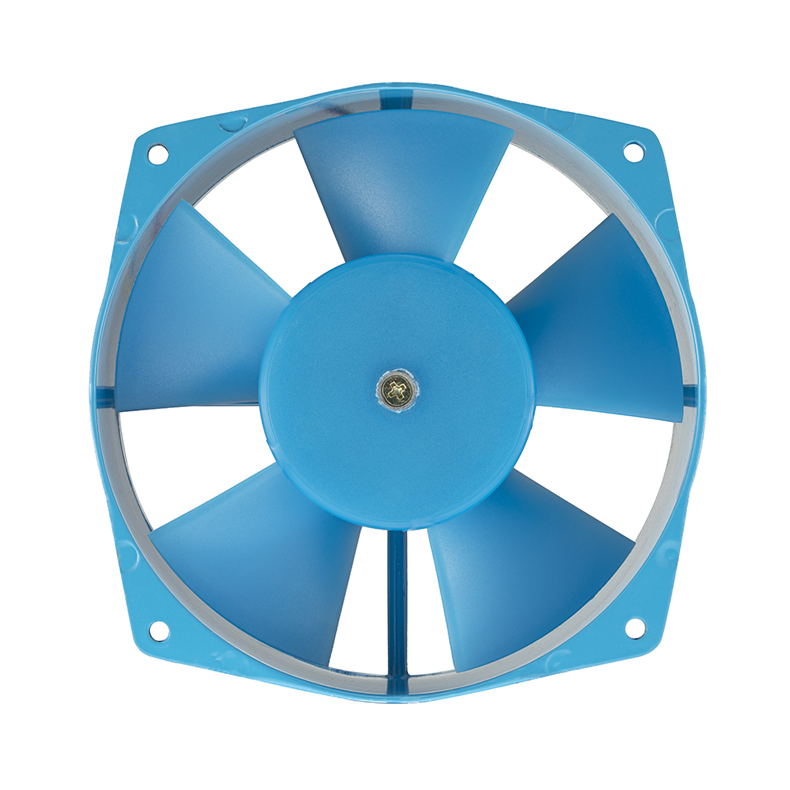

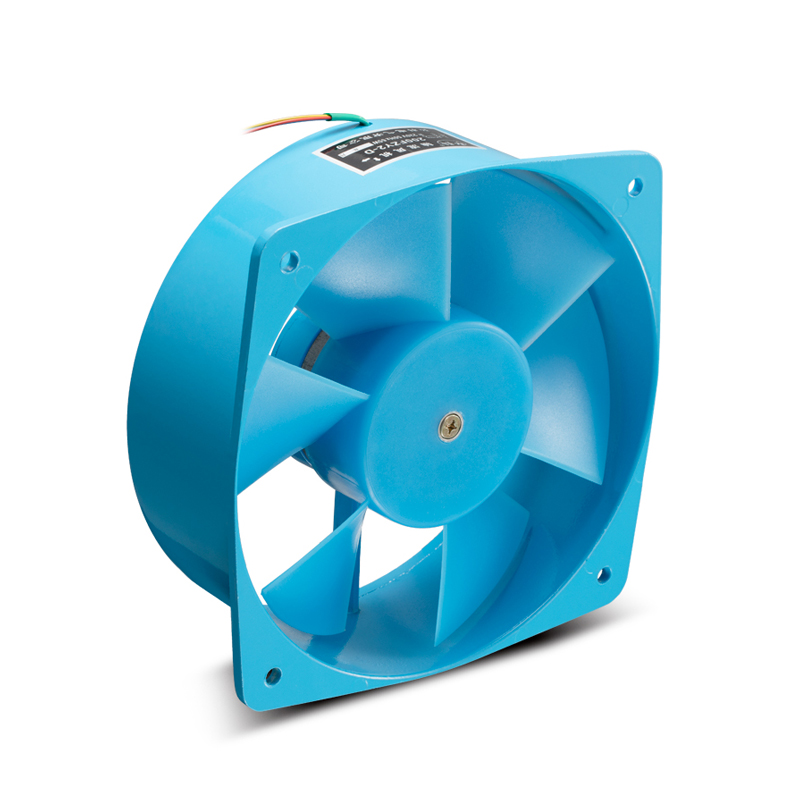

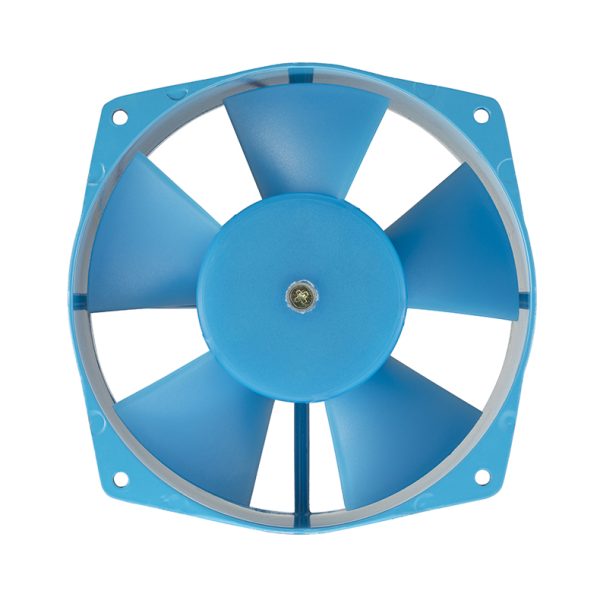

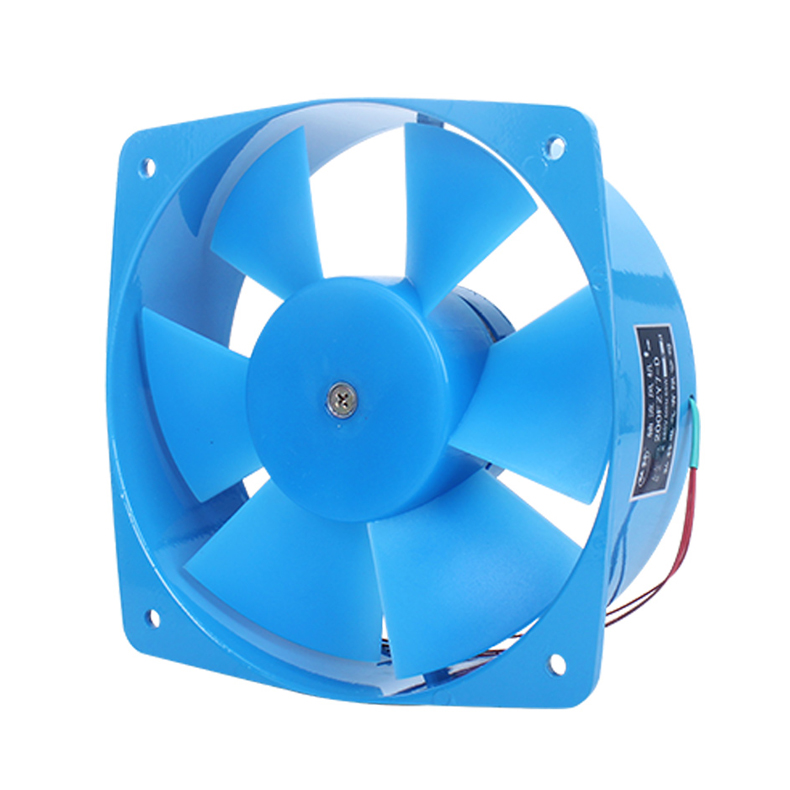

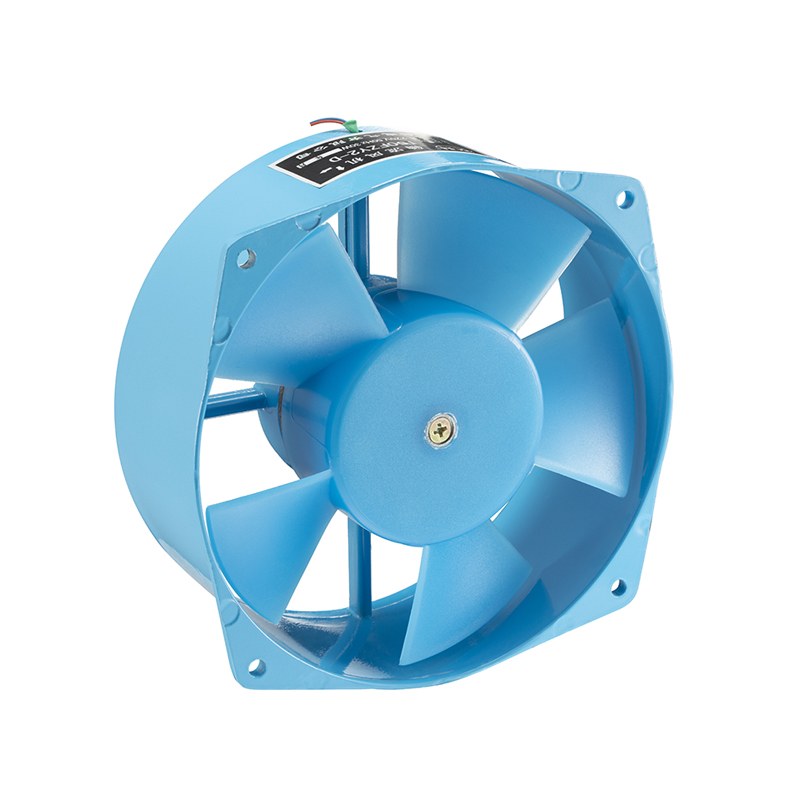

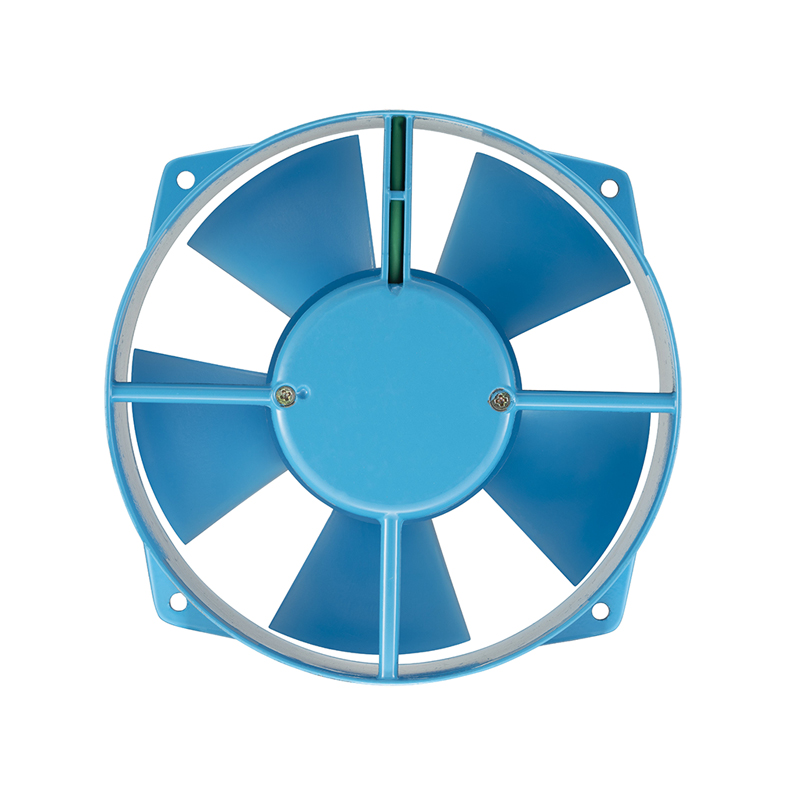

150FZY blue small axial fan

This series of fans consists of a single-phase electro-pneumatic asynchronous motor, single flange cylindrical casing, and fan blades. It has the characteristics of large air volume, low vibration, and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control devices, large electronic equipment, cabinet, electric welding machine, and so on.

power：26W-30W
Air volume：159CFM-172CFM
Rotating speed：2400RPM-2600RPM

Please click the inquiry button below to contact us

Click here to inquire
Categories: , ,

Description

Specification:

This series of fans consists of aluminum alloy shell, asynchronous motor, single flange cylindrical shell and fan blades. It has the characteristics of large air volume, low vibration and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control device, large electronic equipment, cabinet, electric welding machine and so on.

Technique parameters

Model Voltage Frequency Current Power Rotating speed Air Volume Noise Electric capacity
(UF/VDB)		 Weight
150FZY2-D 220V 50Hz 0.16A 30W 2800RPM 216CFM 65dBA 1/400V 0.7kg
150FZY4-D Three-phase 380V 50Hz 0.12A 40W 2800RPM 216CFM 65dBA 1/400V 0.7kg
150FZY7-D Single-phase 380V 50Hz 0.1A 45W 2800RPM 216CFM 62dBA / 0.7kg
