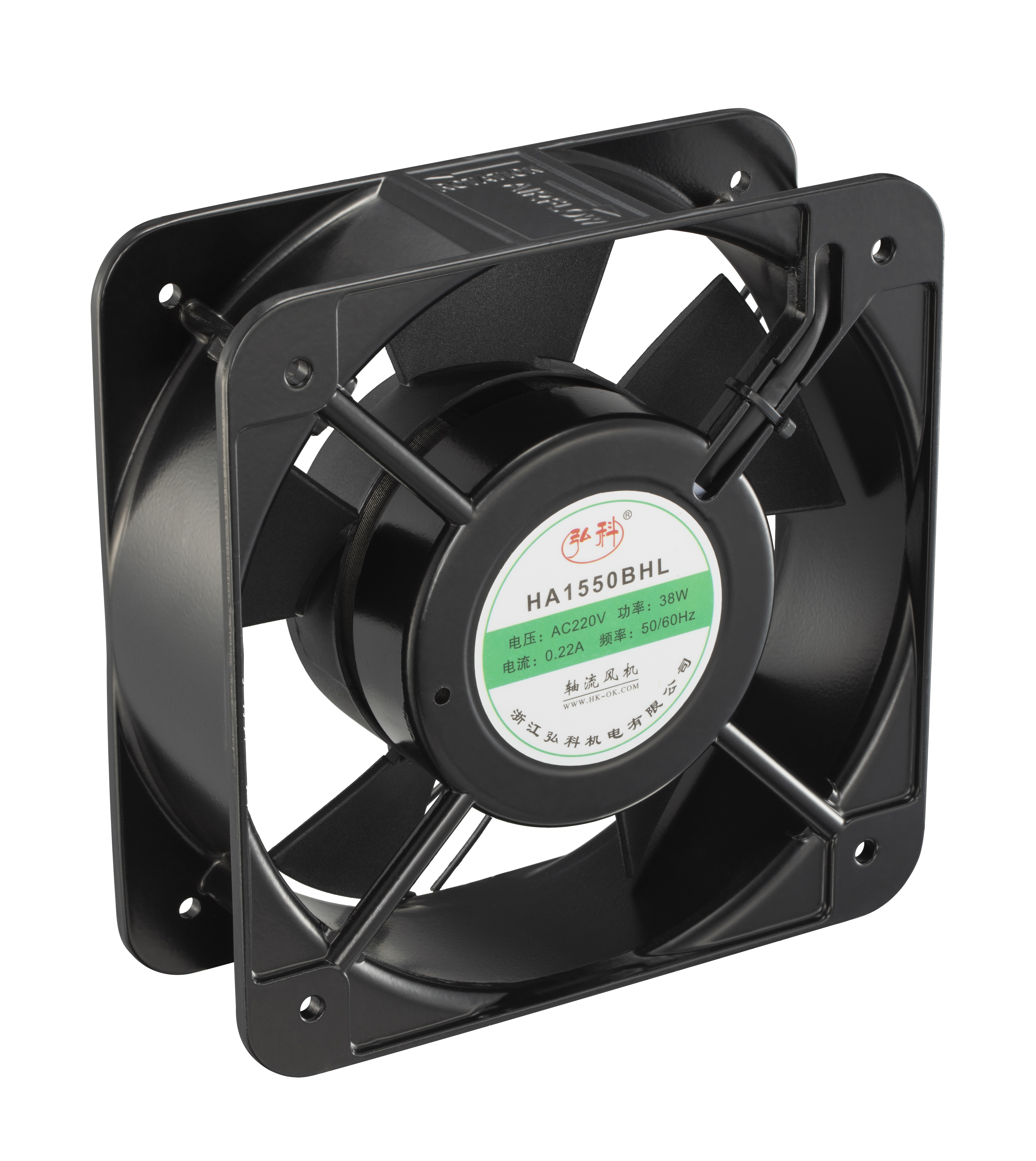

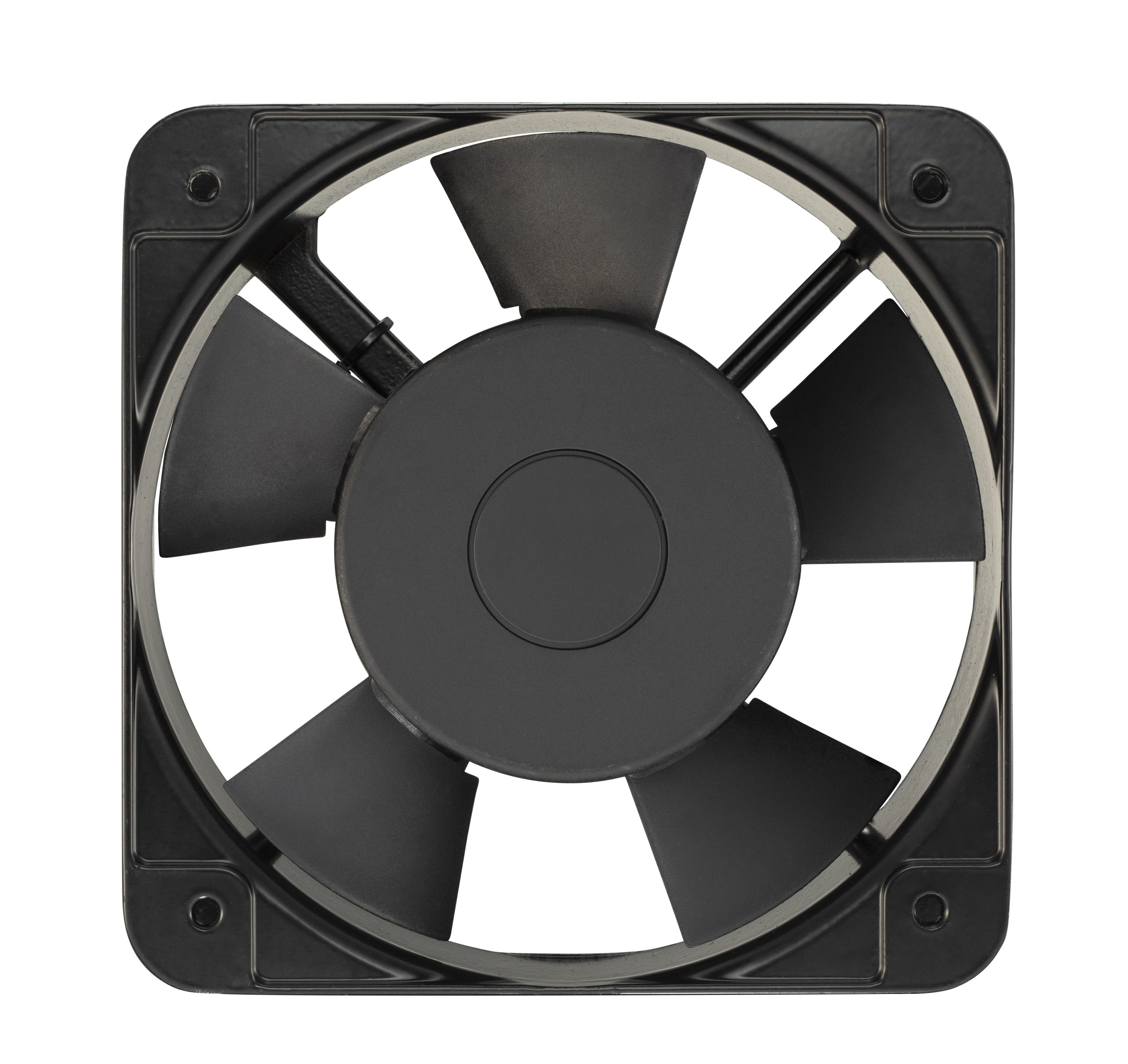

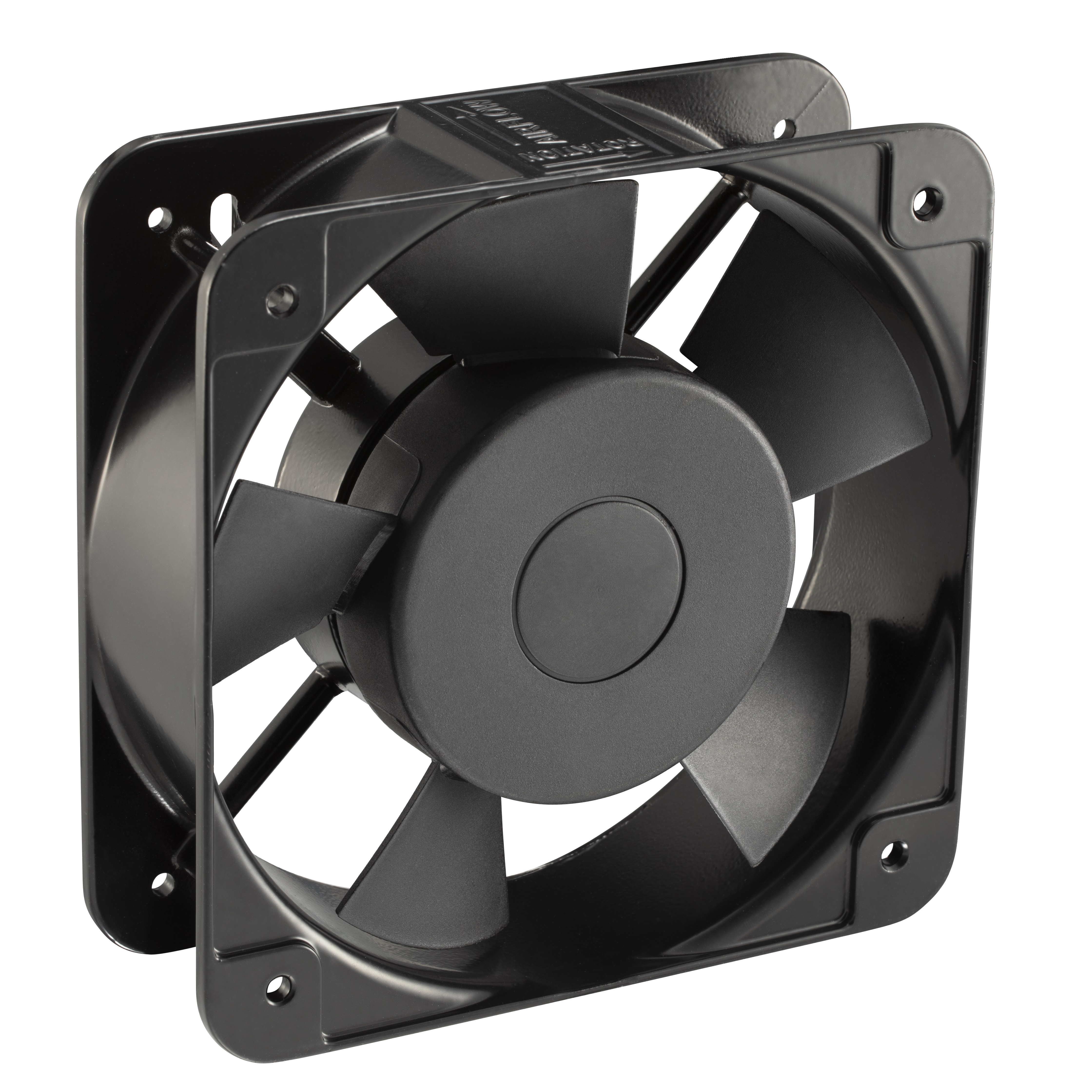

1550 small axial fan

This series of fans consists of an aluminum alloy shell, asynchronous motor, single flange cylindrical shell, and fan blades. It has the characteristics of large air volume, low vibration, and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control devices, large electronic equipment, cabinet, electric welding machine, and so on.

power：26W-29W
Air volume：280CFM-370CFM
Rotating speed：2450RPM-2850RPM

Please click the inquiry button below to contact us

Click here to inquire
分类： , ,

描述

Specification:

This series of fans consists of aluminum alloy shell, asynchronous motor, single flange cylindrical shell and fan blades. It has the characteristics of large air volume, low vibration and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control device, large electronic equipment, cabinet, electric welding machine and so on.

Specification

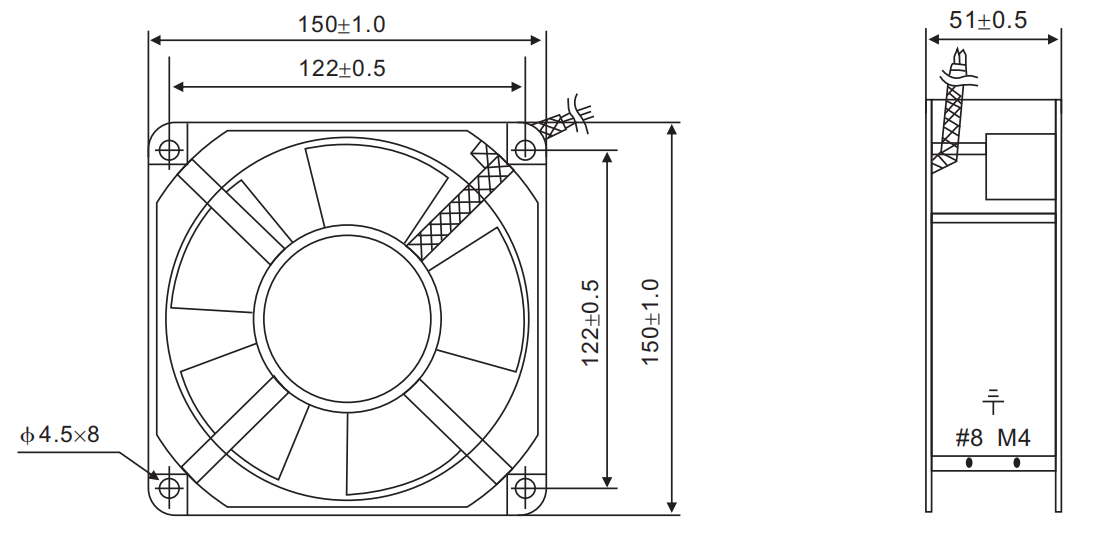

(mm)		 Model Voltage
(V)		 Frequency
(Hz)		 Current
(A)		 Power
(W)		 Speed
(RPM)		 Air Flow
(CFM)		   Pressure
(Inch/H2O)		 Niose
(dB-A)		 Weight
(Kg)
150*150*50 HA15503BHL 380 50 0.22 26 2450 280 0.38 53 0.95
HA15503BHL 380 50 0.22 29 2600 340 0.38 54
HA15502BHL 230 50 0.22 24 2450 280 0.38 50
HA15502BHL 230 50 0.22 24 2450 280 0.38 50
HA15502BHL 230 50 0.22 26.5 2600 340 0.38 54
HA15501BHL 115 50 0.22 26 2650 320 0.38 54
HA15501BHL 115 50 0.22 28 2850 370 0.38 55
