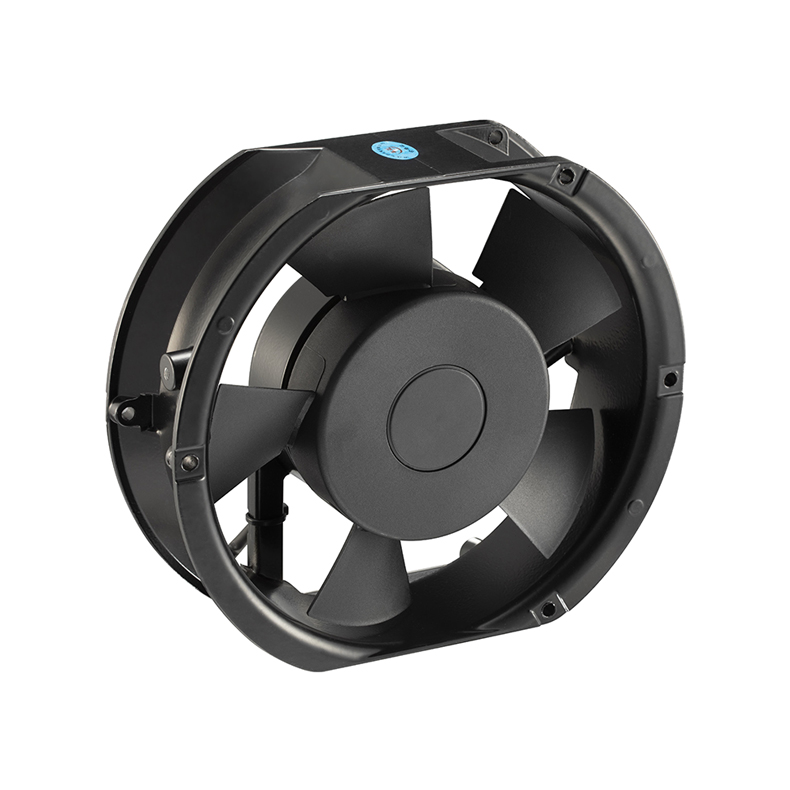

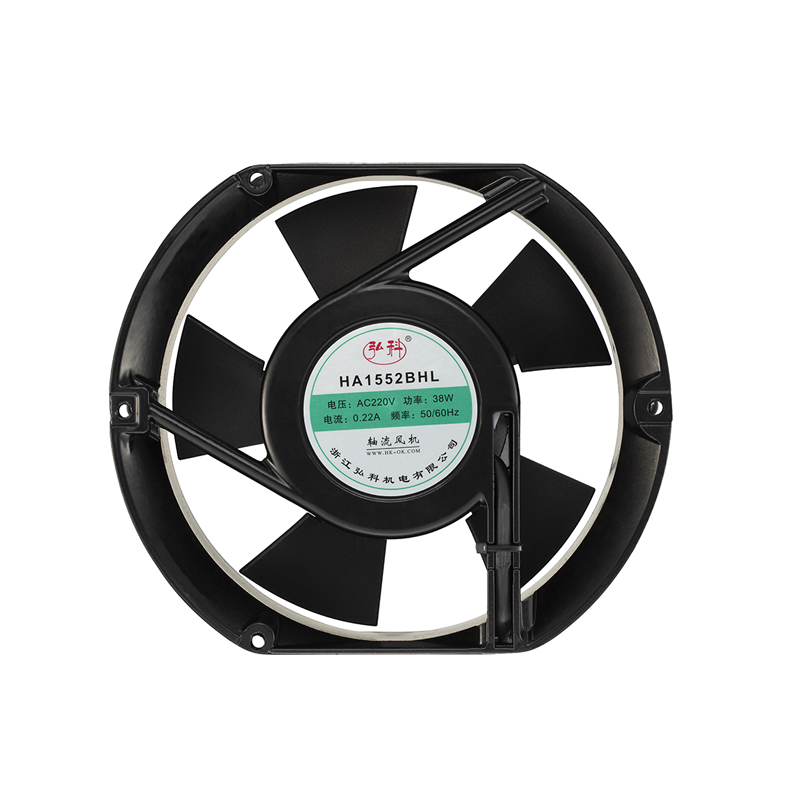

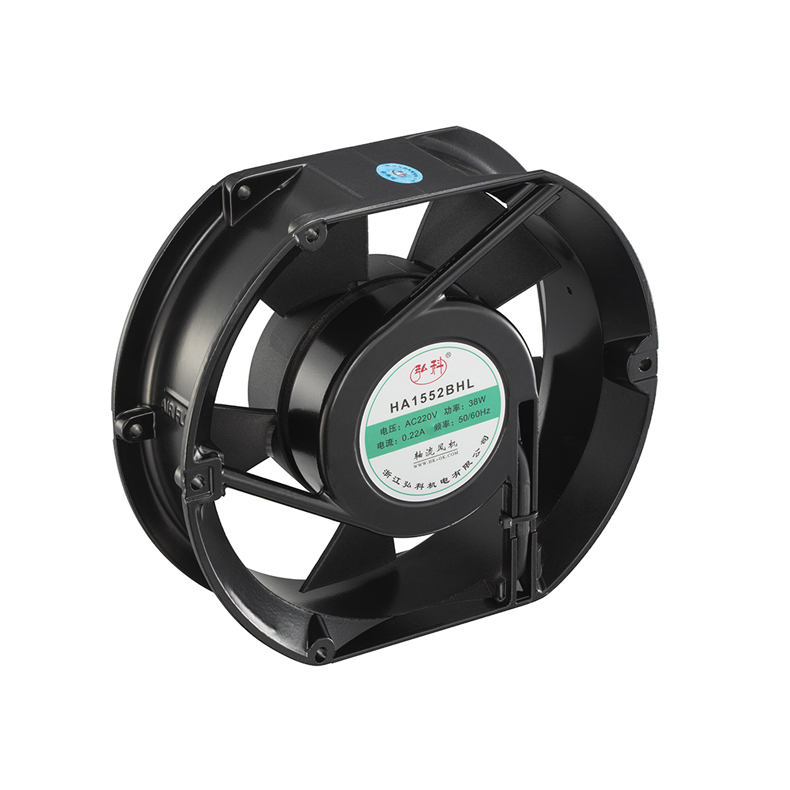

1552 small axial fan

This series of fans consists of an aluminum alloy shell, asynchronous motor, single flange cylindrical shell, and fan blades. It has the characteristics of large air volume, low vibration, and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control devices, large electronic equipment, cabinet, electric welding machine, and so on.

power：25W-31W
Air volume：180CFM-195CFM
Rotating speed：2500RPM-2700RPM

Please click the inquiry button below to contact us

Click here to inquire
Categories: , ,

Description

Specification:

This series of fans consists of aluminum alloy shell, asynchronous motor, single flange cylindrical shell and fan blades. It has the characteristics of large air volume, low vibration and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control device, large electronic equipment, cabinet, electric welding machine and so on.

Technique parameters



Model Voltage Frequency Current Power Rotating speed Air Volume Wind Pressure Noise Weight
HA1552SHL-1 115V 50Hz 0.33A 25W 2500RPM 180CFM 0.38Inch/H2O 49.6dBA 0.87kg
HA1552SHL-1 115V 60Hz 0.38A 29.8W 2700RPM 195CFM 0.52Inch/H2O 53dBA 0.87kg
HA1552BHL-2 230V 50Hz 0.18A 25W 2500RPM 180CFM 0.38Inch/H2O 49.6dBA 0.87kg
HA1552SHL-2 230V 60Hz 0.2A 31W 2700RPM 195CFM 0.52Inch/H2O 53dBA 0.87kg
HA1552SHL-3 380V 50Hz 0.14A 25W 2500RPM 180CFM 0.38Inch/H2O 49.6dBA 0.87kg
