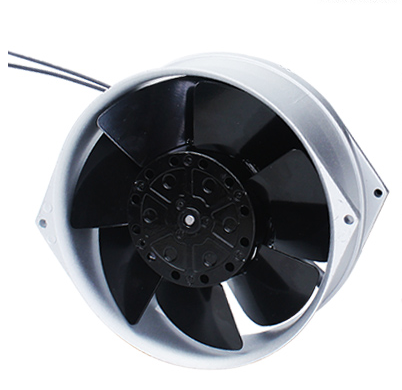

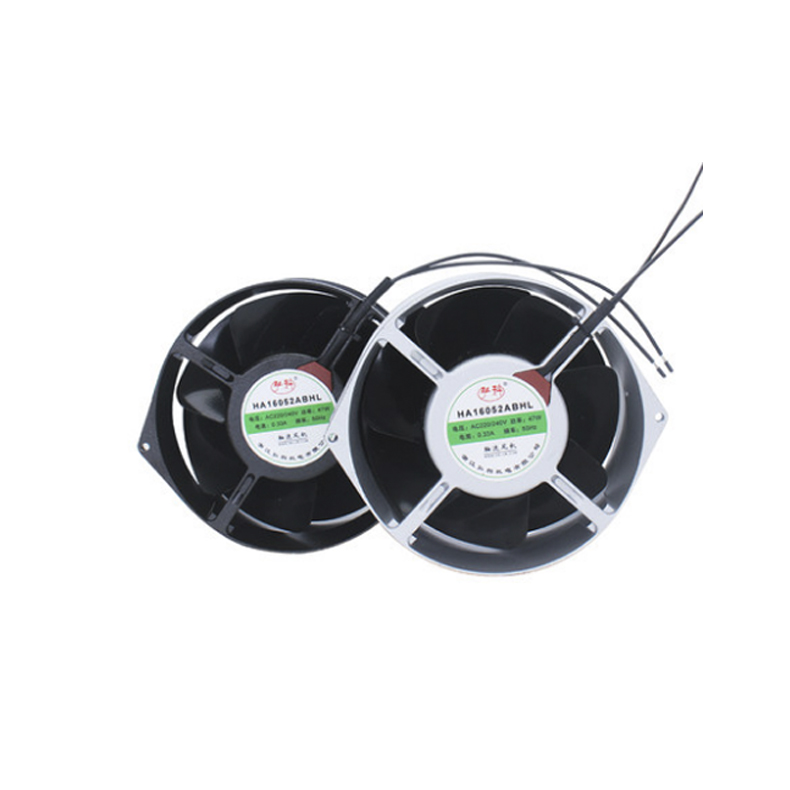

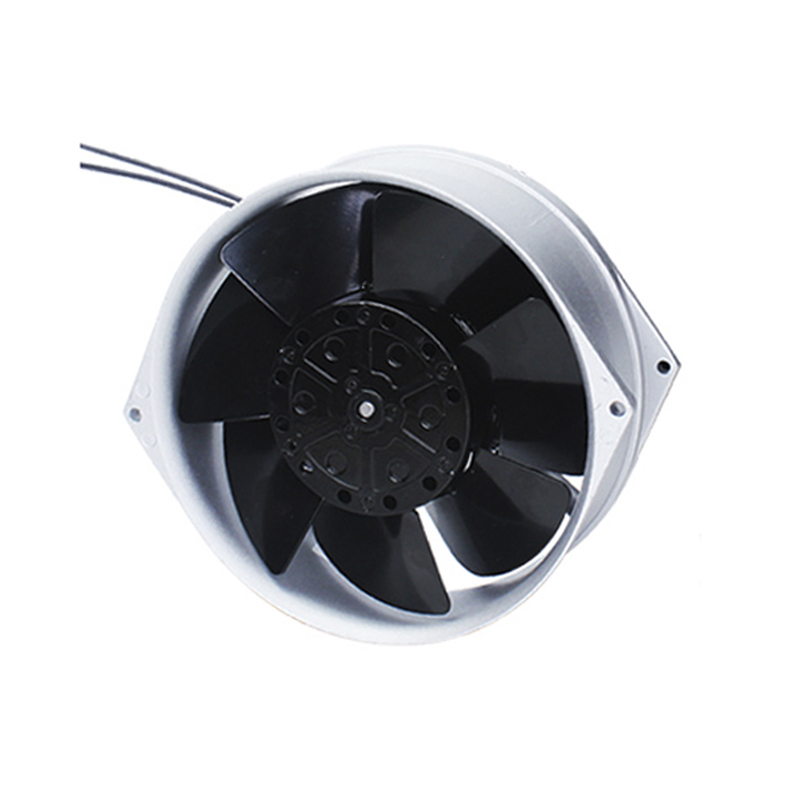

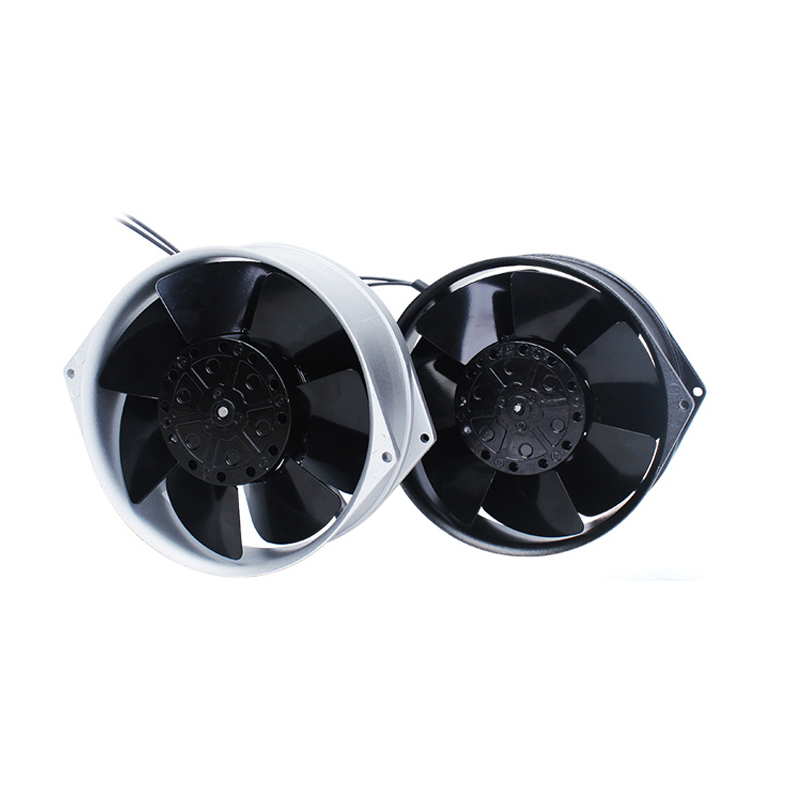

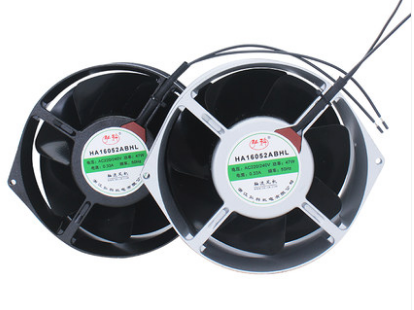

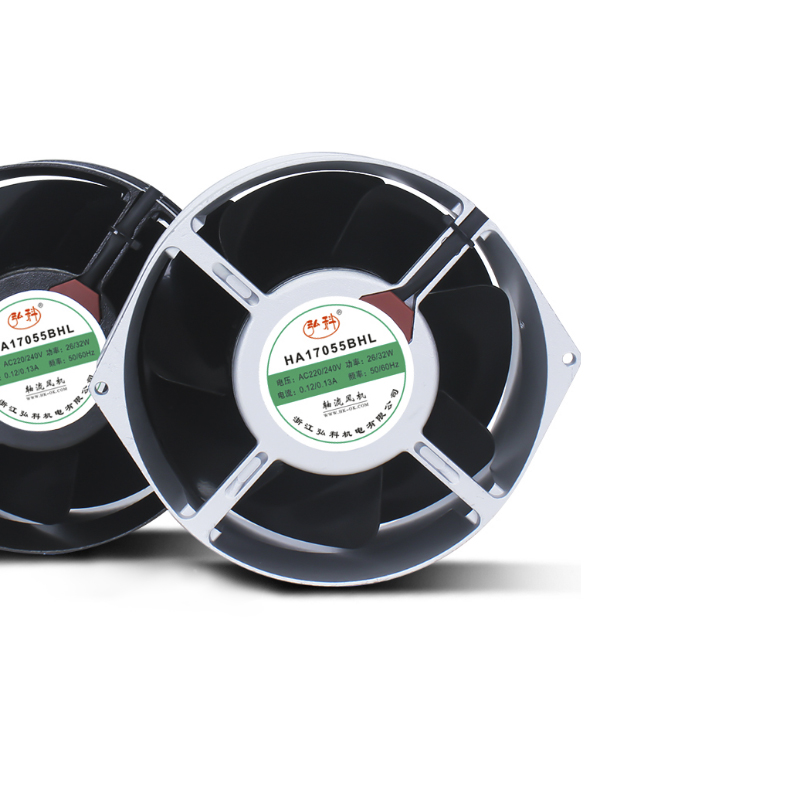

17055 small axial fan

This series of fan shells are made of thickened aluminum, which has the characteristics of high hardness, wear resistance, long service life, and smooth surface. Thickened metal fan blade, fine grinding and painting, no hand injury, high strength, not easy to deform and fracture, the large air volume, and low noise. The shell surface is treated with high-temperature baking paint, which is wear-resistant, scratch-resistant, glossy, not easy to stick ash, easy to clean, and lasting as new.

Please click the inquiry button below to contact us

Click here to inquire

Description

Specification:

This series of fans consists of aluminum alloy shell, asynchronous motor, single flange cylindrical shell and fan blades. It has the characteristics of large air volume, low vibration and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control device, large electronic equipment, cabinet, electric welding machine and so on.



Technique parameters

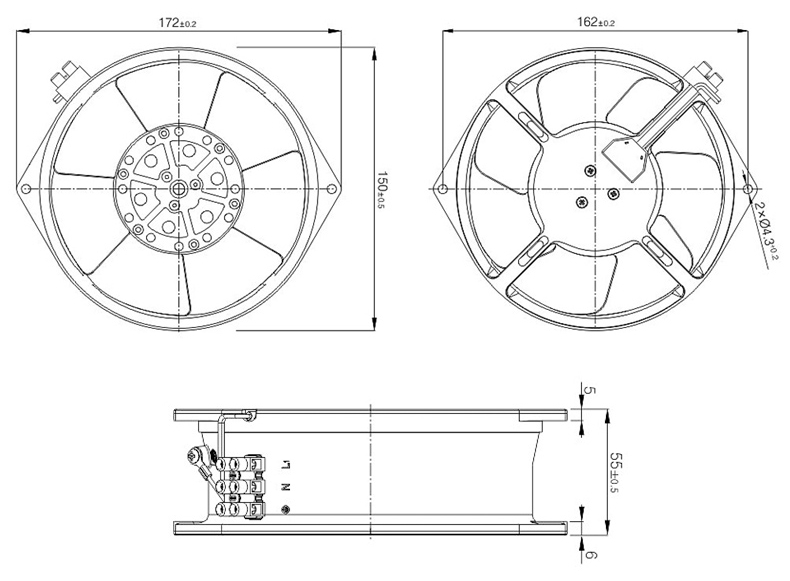

Model Voltage Frequency Rotating speed Air flow Size
HK16025MAB 115V/230V 50/60Hz 2500-2800r/min 320-380m3/h 172*150*55mm
