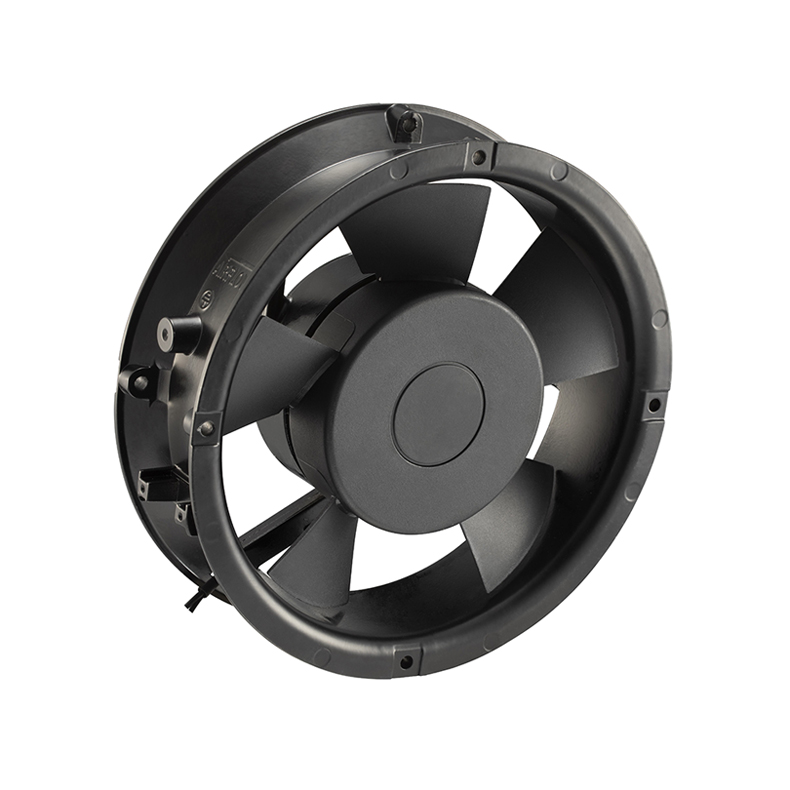

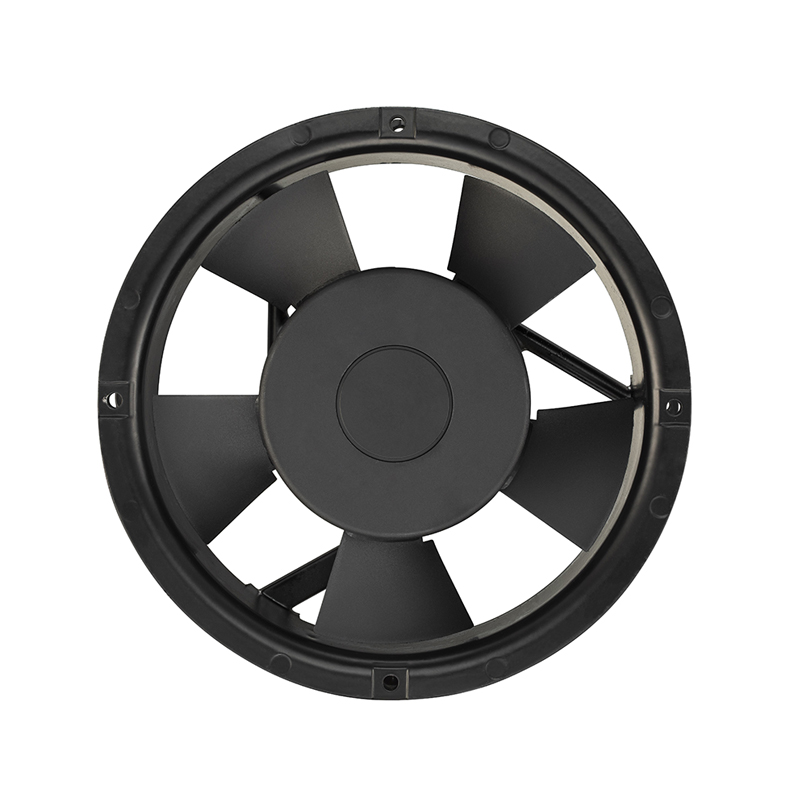

1752 small axial fan

This series of fans consists of aluminum alloy shell, asynchronous motor, single flange cylindrical shell and fan blades. It has the characteristics of large air volume, low vibration and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control device, large electronic equipment, cabinet, electric welding machine and so on.

power：24.5W-28W
Air volume：280CFM-340CFM
Rotating speed：2450RPM-2600RPM

Please click the inquiry button below to contact us

Click here to inquire
Categories: , ,

Description

Specification:

This series of fans consists of aluminum alloy shell, asynchronous motor, single flange cylindrical shell and fan blades. It has the characteristics of large air volume, low vibration and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control device, large electronic equipment, cabinet, electric welding machine and so on.

Technique parameters

Model Voltage Frequency Current Power Rotating speed Air Volume Wind Pressure Noise Weight
HA1753BHL 380V 50Hz 0.22A 26W 2450RPM 280CFM 0.48 Inch/H2O 54dBA 0.9kg
HA1753BHL 380V 50Hz 0.22A 28W 2600RPM 340CFM 0.48 Inch/H2O 58dBA 0.9kg
HA1752SHL 230V 50Hz 0.22A 24.5W 2450RPM 280CFM 0.48 Inch/H2O 53dBA 0.9kg

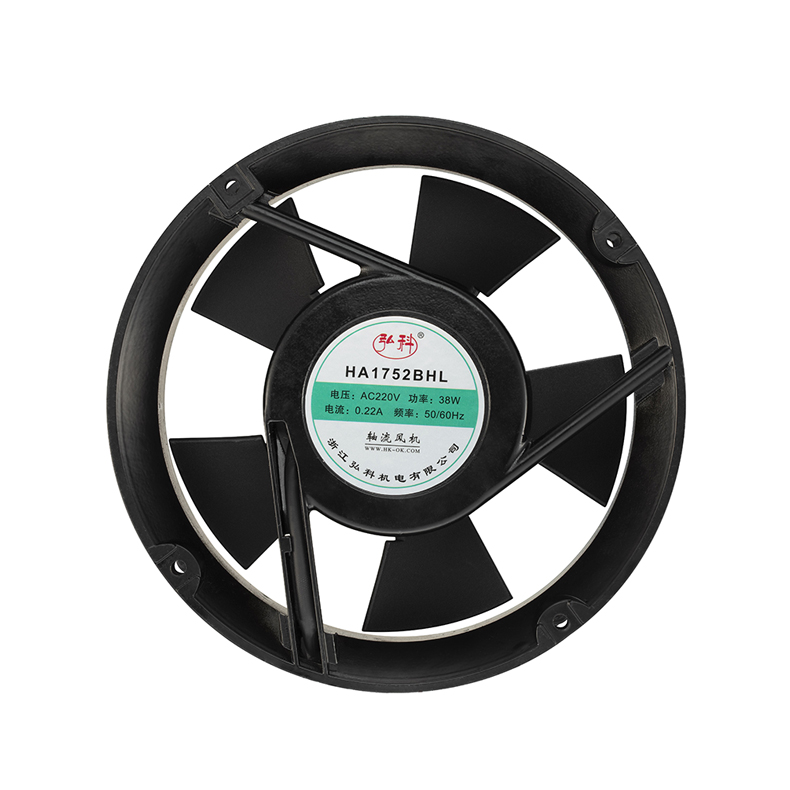

HA1752BHL 230V 50Hz 0.22A 24.5W 2450RPM 280CFM 0.48 Inch/H2O 53dBA 0.9kg
HA1752BHL 230V 50Hz 0.22A 28W 2600RPM 340CFM 0.48 Inch/H2O 58dBA 0.9kg
HA1751BHL 115V 50Hz 0.22A 26W 2650RPM 320CFM 0.48 Inch/H2O 55dBA 0.9kg
HA1751BHL 115V 50Hz 0.22A 28W 2850RPM 370CFM 0.48 Inch/H2O 58dBA 0.9kg
