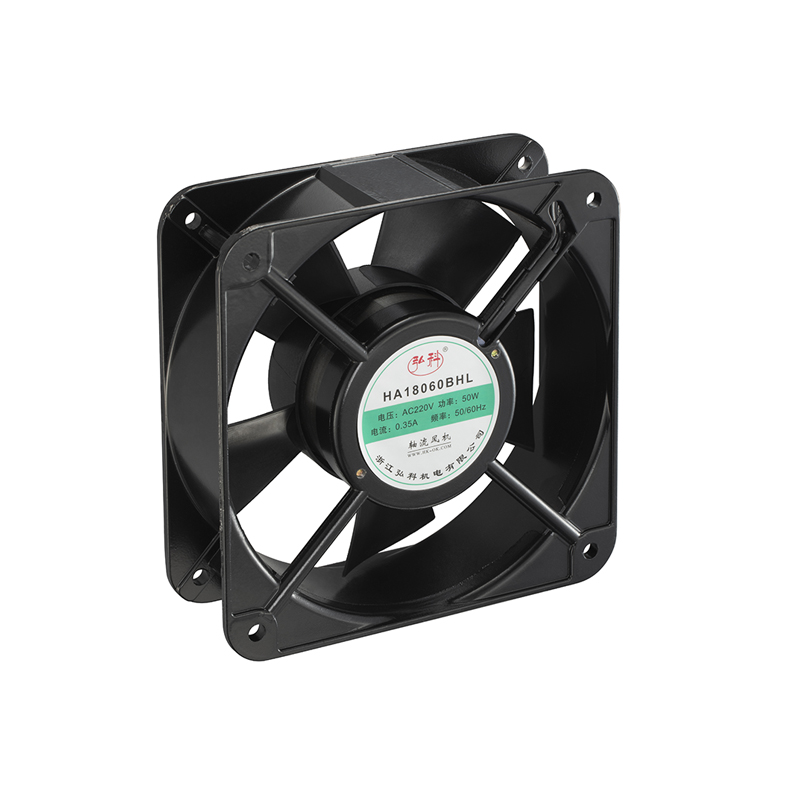

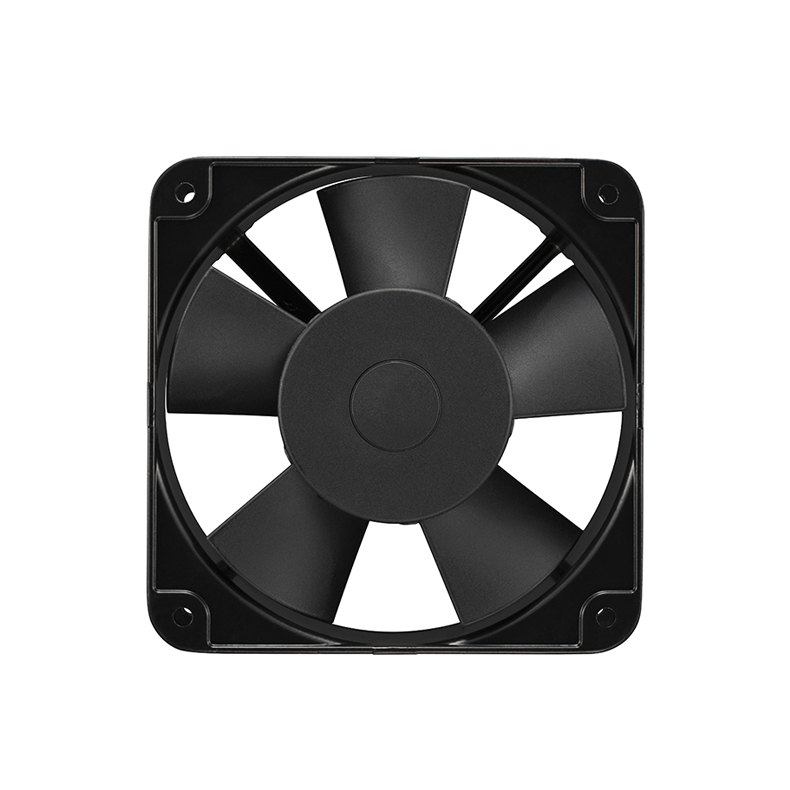

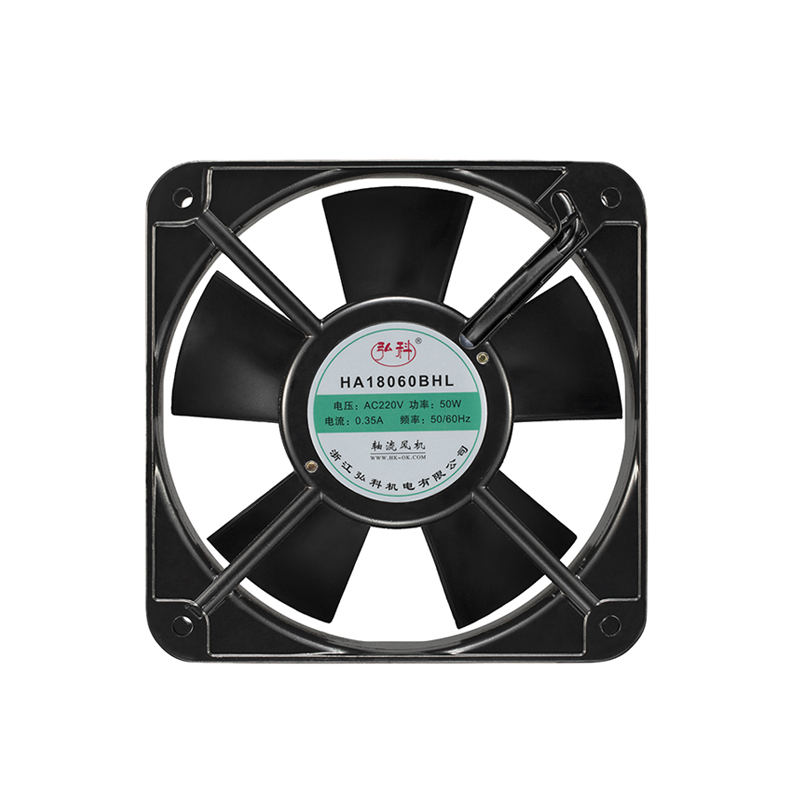

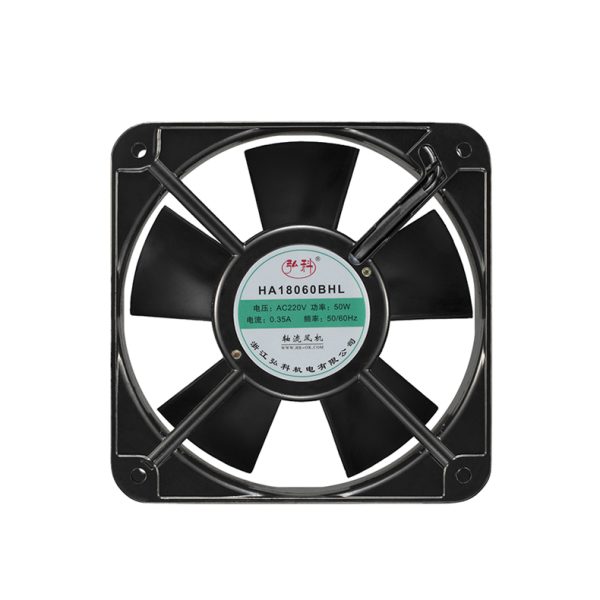

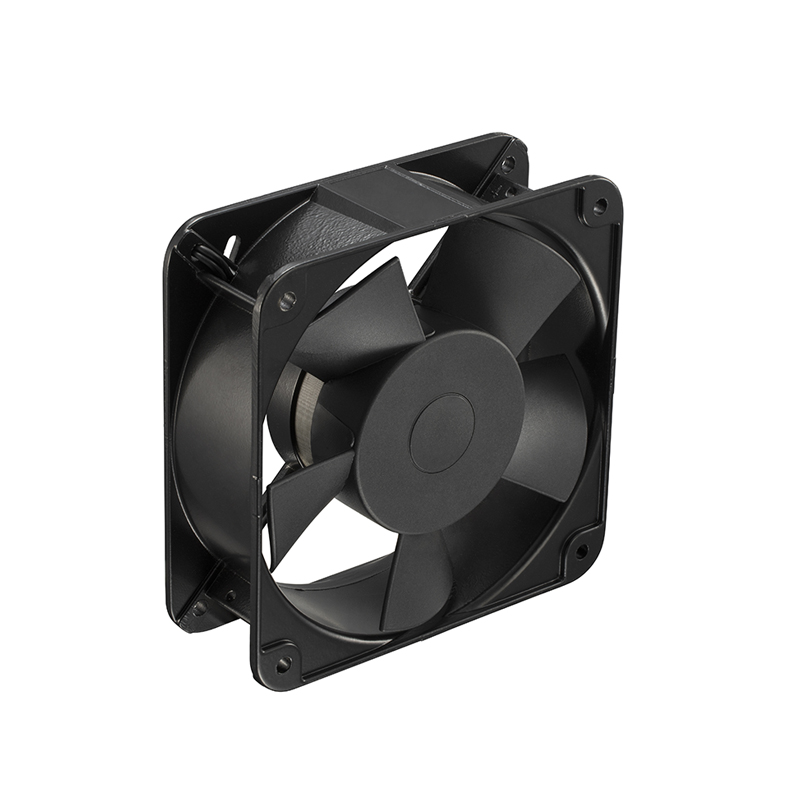

18060 small axial fan

This series of fans consists of an aluminum alloy shell, asynchronous motor, single flange cylindrical shell, and fan blades. It has the characteristics of large air volume, low vibration, and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control devices, large electronic equipment, cabinet, electric welding machine, and so on.

power：50W-60W
Air volume：255CFM
Rotating speed：2500RPM

Please click the inquiry button below to contact us

Click here to inquire
分类： , ,

描述

Specification:

This series of fans consists of aluminum alloy shell, asynchronous motor, single flange cylindrical shell and fan blades. It has the characteristics of large air volume, low vibration and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control device, large electronic equipment, cabinet, electric welding machine and so on.

Technique parameters



Model Voltage Frequency Current Power Rotating speed Air flow Pressure Noise
HA18060BHL-1 150 50 0.6A 50 2500RPM 255CFM 0.6 Inch/H2O 58dBA
HA18060BHL-2 230 50 0.35A 55 2500RPM 255CFM 0.6 Inch/H2O 58dBA
HA18060BHL-3 380 50 0.25A 60 2500RPM 255CFM 0.6 Inch/H2O 58dBA
