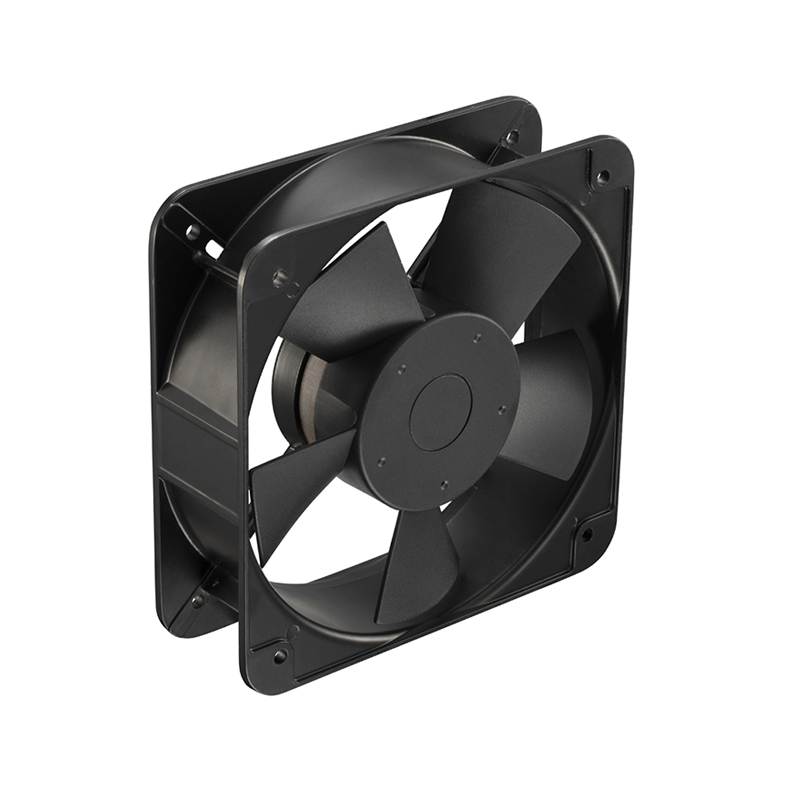

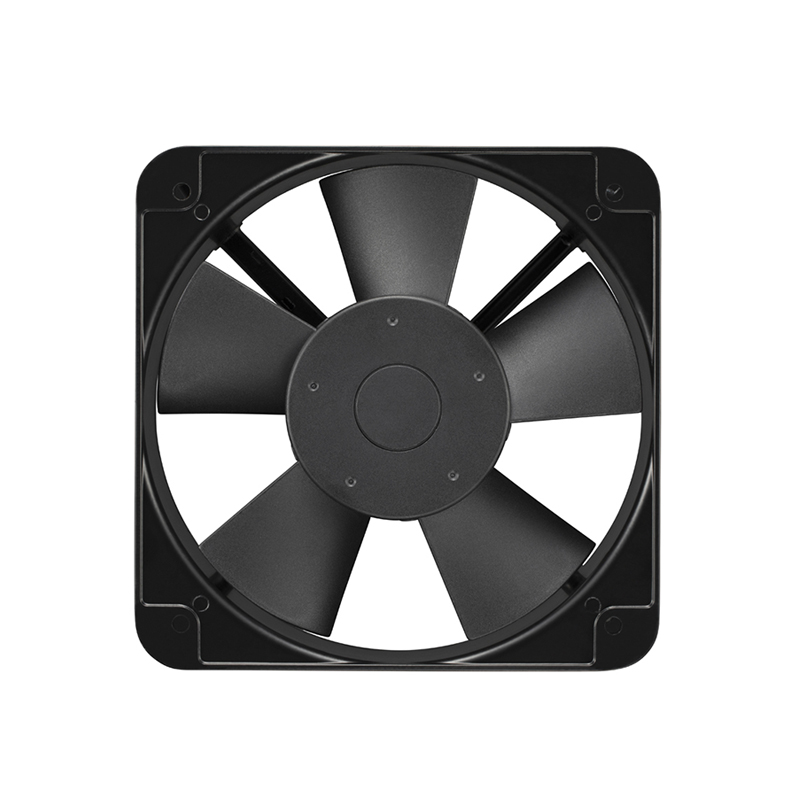

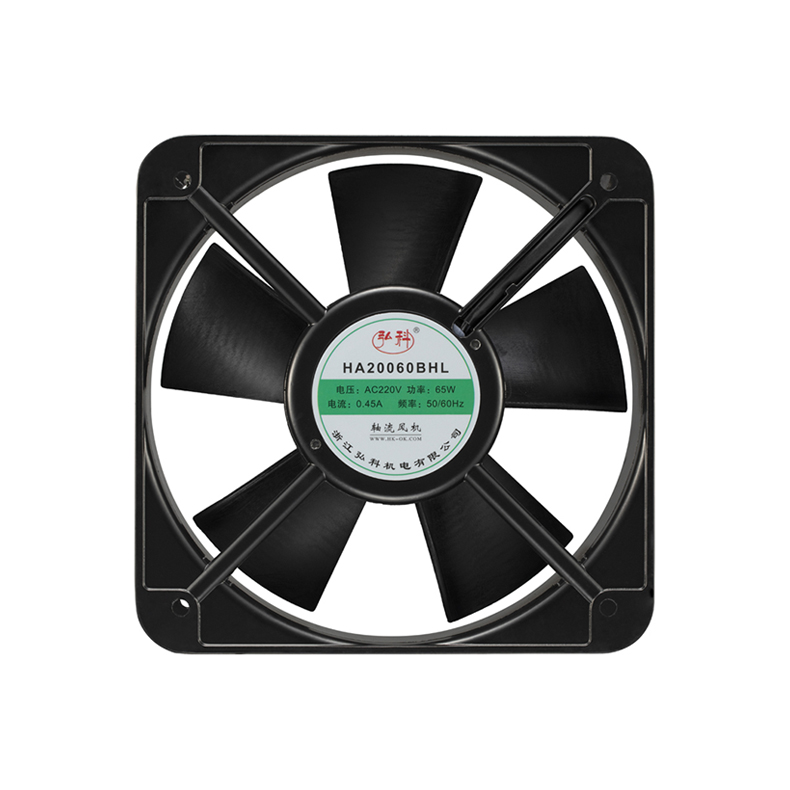

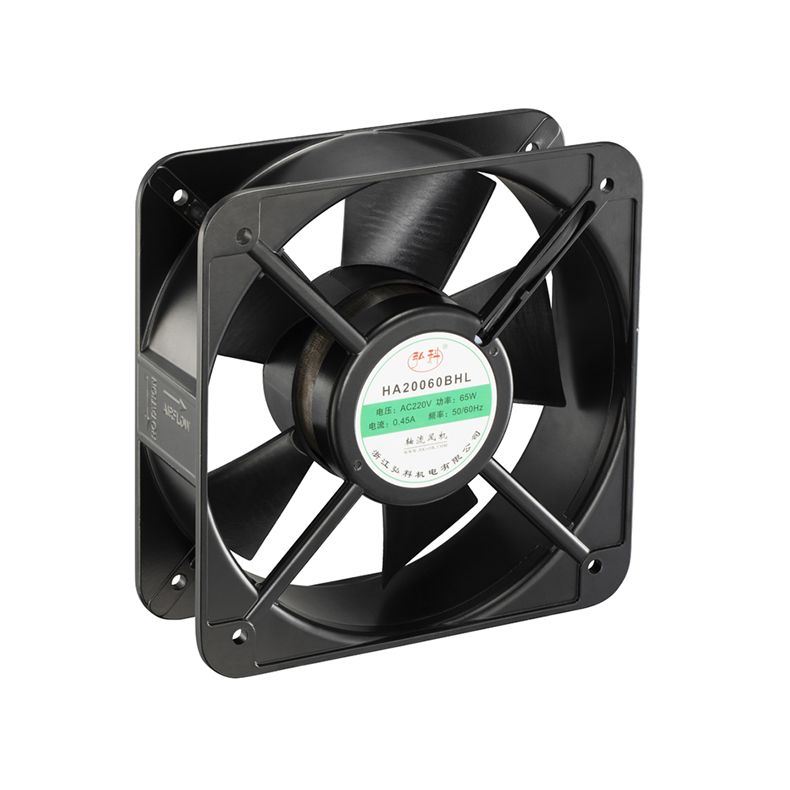

20060 small axial fan
This series of fans consists of aluminum alloy shell, asynchronous motor, single flange cylindrical shell and fan blades. It has the characteristics of large air volume, low vibration and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control device, large electronic equipment, cabinet, electric welding machine and so on.
power：70W
Air volume：285CFM
Rotating speed：2500RPM
Please click the inquiry button below to contact us
描述
Specification:
This series of fans consists of aluminum alloy shell, asynchronous motor, single flange cylindrical shell and fan blades. It has the characteristics of large air volume, low vibration and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control device, large electronic equipment, cabinet, electric welding machine and so on.
Technique parameters
| Model | Voltage | Current | Frequency | Power | Rotating speed | Air flow | Pressure | Noise |
| HA20060BHL-2 | 230 | 0.45A | 50 | 70 | 2500RPM | 285CFM | 0.65 Inch/H2O | 60dBA |
| HA20060BHL-3 | 380 | 0.28A | 50 | 70 | 2500RPM | 285CFM | 0.65 Inch/H2O | 60dBA |
