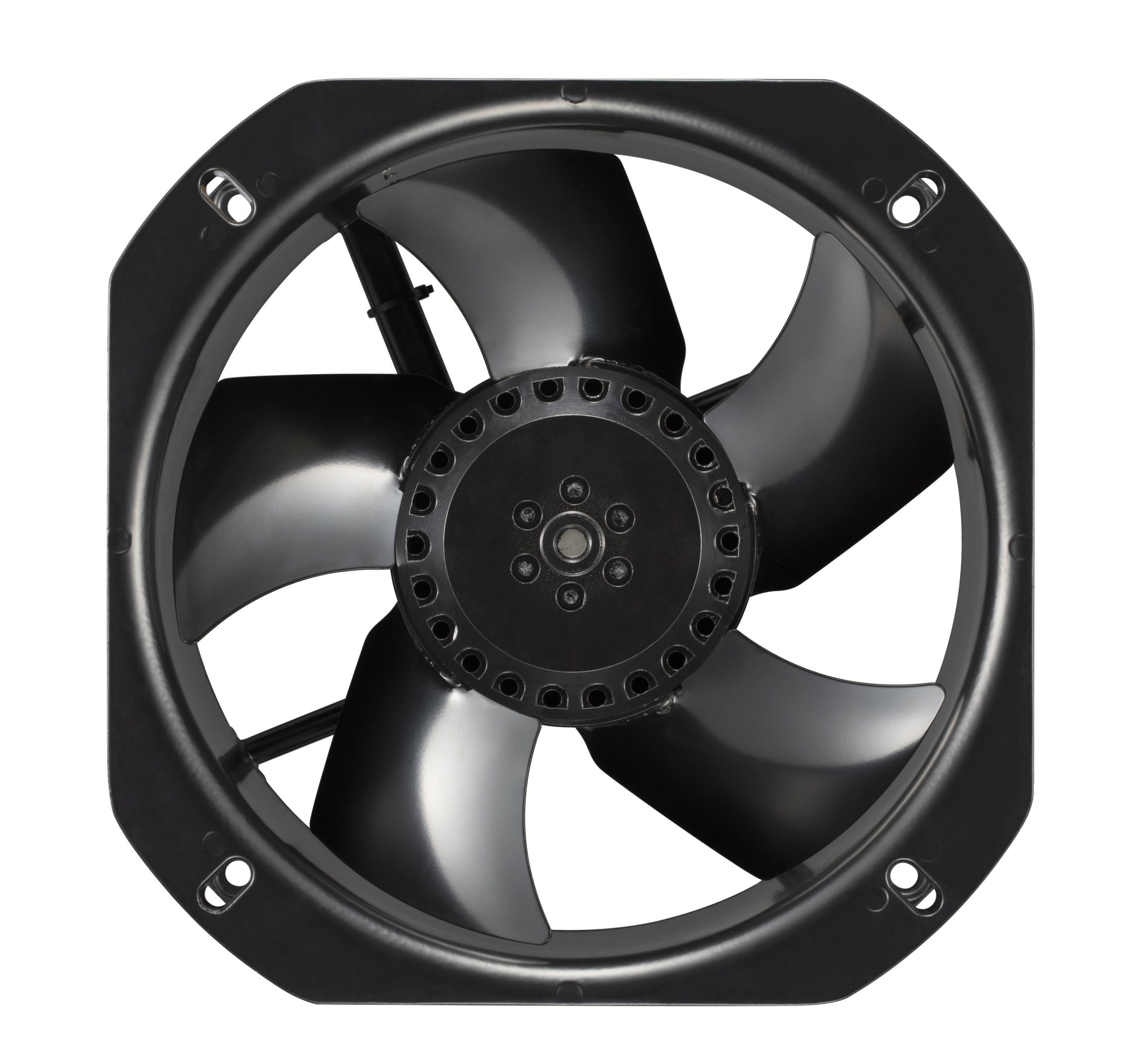

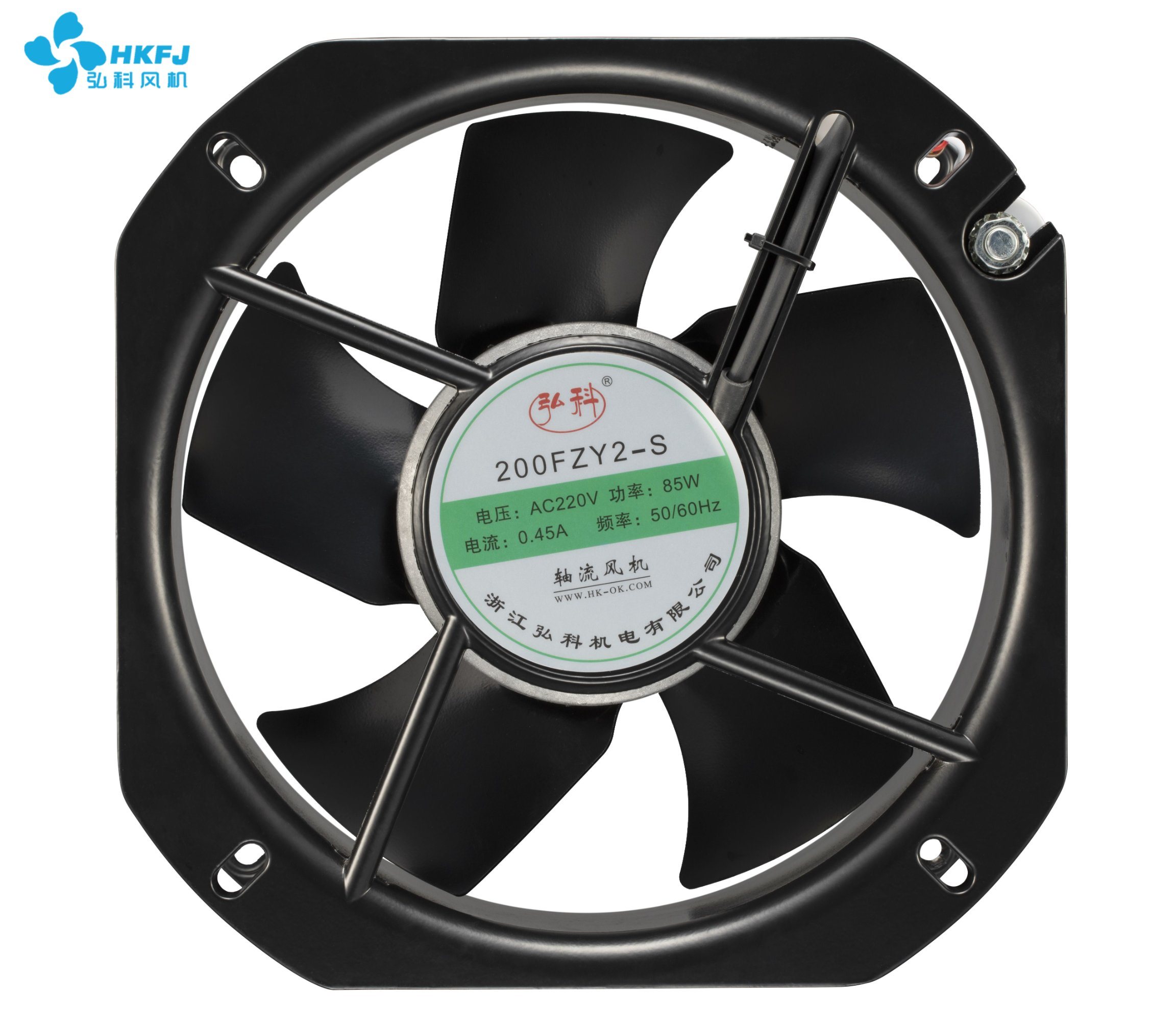

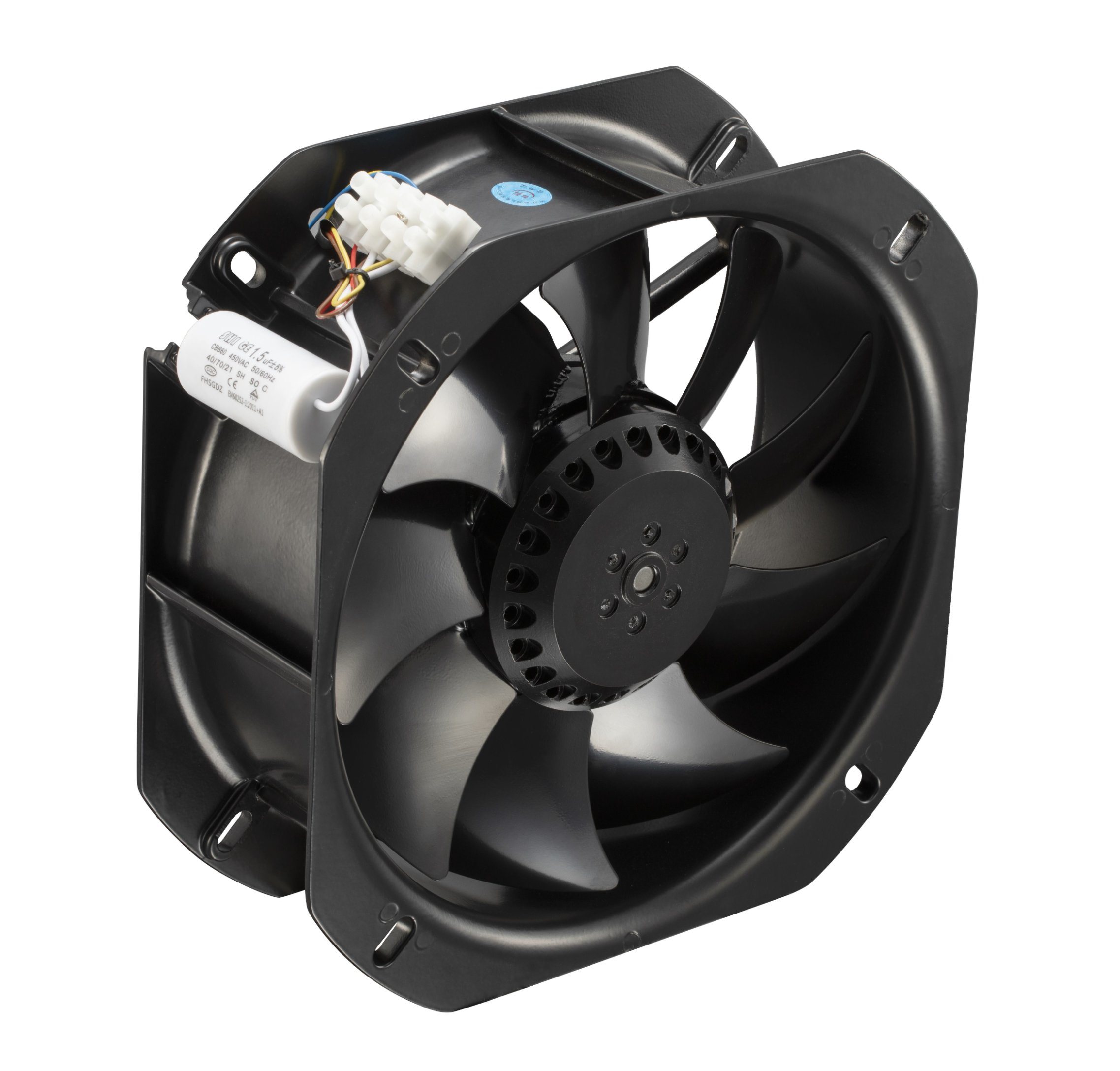

200FZY-S small axial fan
This series of fans consists of an aluminum alloy shell, asynchronous motor, single flange cylindrical shell, and fan blades. It has the characteristics of large air volume, low vibration, and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control devices, large electronic equipment, cabinet, electric welding machine, and so on.
power：40W-110W
Air volume：8.5m3/h-17m3/h
Rotating speed：1350RPM-2600RPM
Please click the inquiry button below to contact us
描述
Specification
This series of fans consists of aluminum alloy shell, asynchronous motor, single flange cylindrical shell and fan blades. It has the characteristics of large air volume, low vibration and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control device, large electronic equipment, cabinet, electric welding machine and so on.

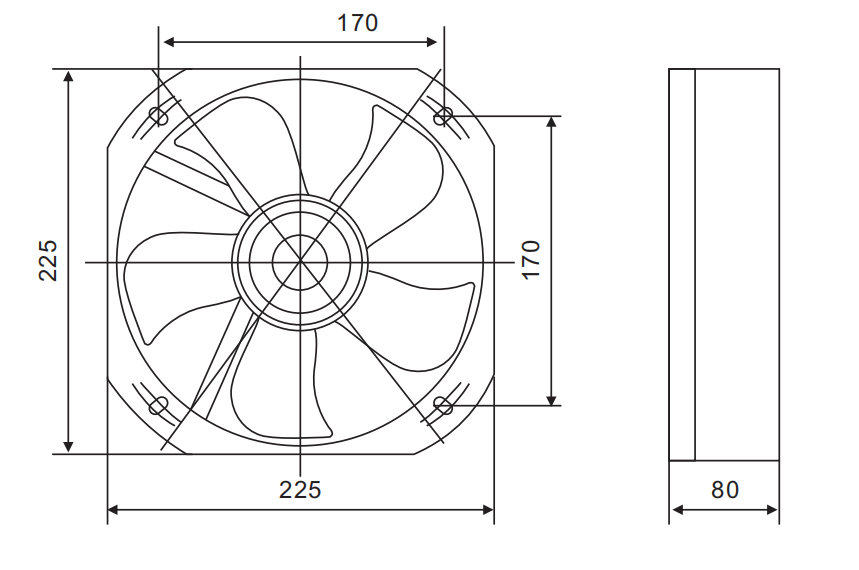

| Specification (mm) |
Model | Voltage (V) | Frequency (Hz) |
Current ( A ) |
Power (W) |
Speed (RPM) |
Air Flow (m³/min) |
Niose (dB-A) |
Capacitance (UF/VDB) |
| 225*225*80 | 200FZY2-S | 220 | 50 | 0.2 | 40 | 1350 | 8.5 | 50 | 1/500 |
| 200FZY3-S | 380 | 50 | 0.1 | 40 | 1350 | 8.5 | 50 | / | |
| 200FZY4-S | 380 | 50 | 0.1 | 40 | 1350 | 8.5 | 50 | 1/630 | |
| 200FZY6-S | 220 | 50 | 0.35 | 110 | 2600 | 17 | 65 | 2/500 | |
| 200FZY7-S | 380 | 50 | 0.3 | 110 | 2600 | 17 | 65 | / | |
| 200FZY8-S | 380 | 50 | 0.3 | 110 | 2600 | 17 | 65 | 1.5/630 |
