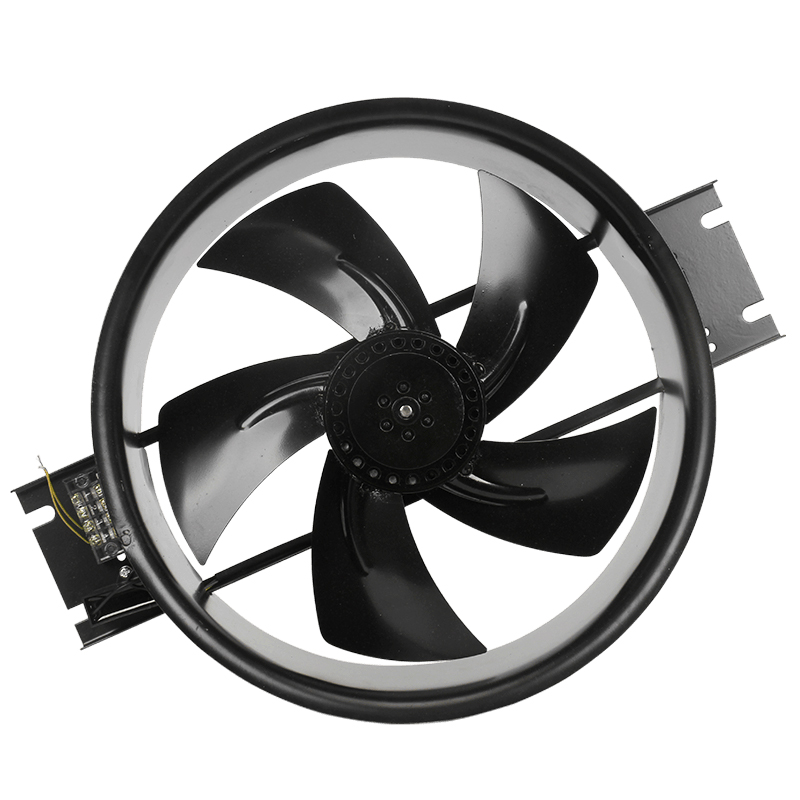

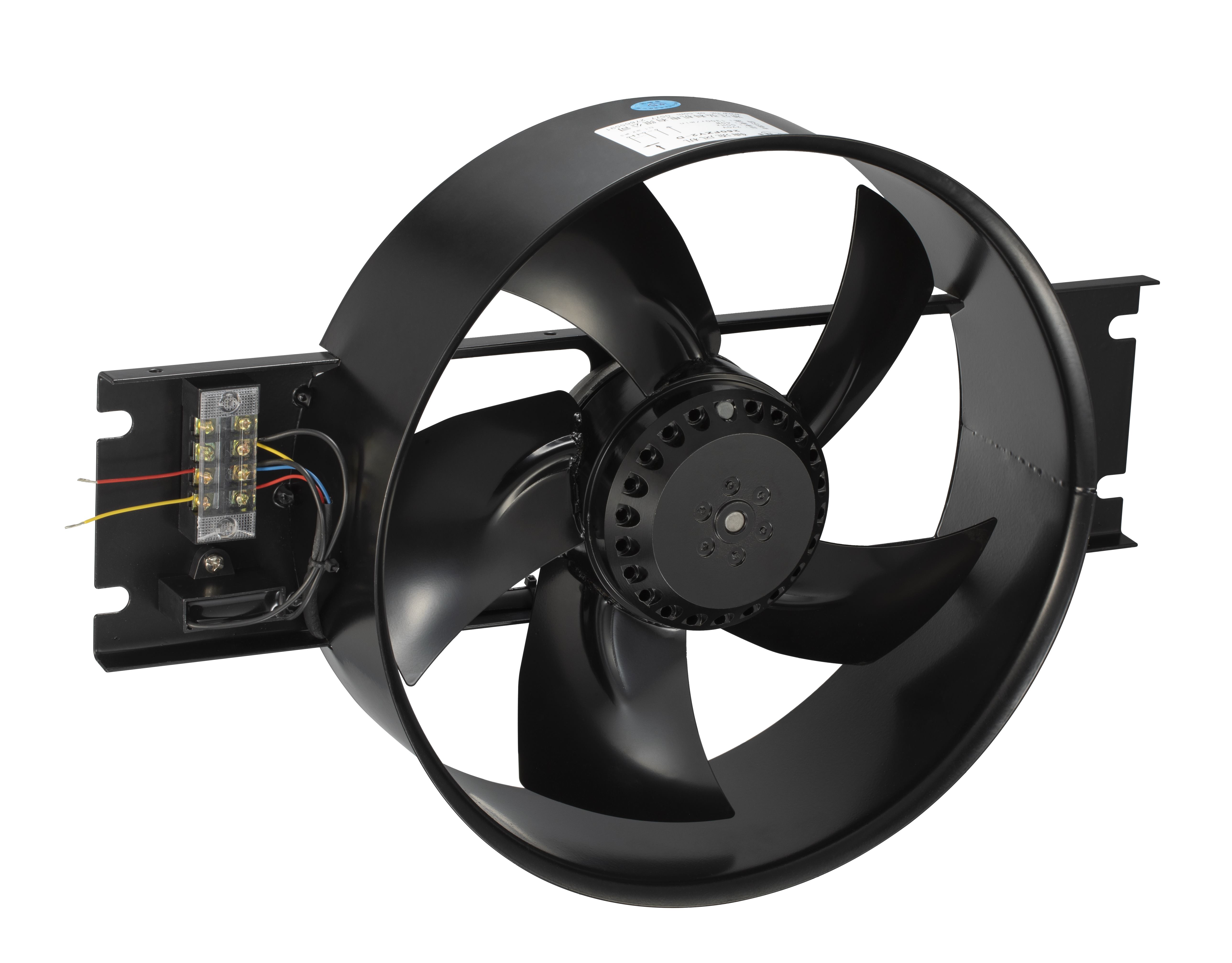

300FZY-D small axial fan
This series of fans consists of aluminum alloy shell, asynchronous motor, single flange cylindrical shell and fan blades. It has the characteristics of large air volume, low vibration and low noise. The fan is mainly used for ventilation and heat dissipation in industries requiring large air volume, such as ground automatic control device, large electronic equipment, cabinet, electric welding machine and so on.
power：80W-190W
Air volume：30m3/h-34m3/h
Rotating speed：1300RPM-2600RPM
Please click the inquiry button below to contact us
描述
Specification
Axial Fan Cooling Fan Welding UPS cooling Fan for UPS, welding machine, cabinetAluminum die-casting, surface is finished by anti-corrosion treatment with primary color or black electrophoresisanti-corrosion treatment Impeller Metal impellers are welded to motor rotor, and surface is finished by black electrophoresis anti-corrosion treatment Operation Temperature/Humidity Temperature -30ºC ~ +80ºC Humidity 0% ~ 95% Protection Motor Internal with automatic recovery thermal protector Withstand Voltage AC 1,800V , 1 min at 0.5mA, 50/60 HzInsulation System design according to IEC61858 Grade F,Protection Grade External rotor power frequency axial flow fan Turbine outlet, low noise and large air volume
| Specification | Model | Voltage(VAC) | Frequency(Hz) |
Current (AMP) |
Power (W) |
Rotating speed (RPM) |
Arvolime (m3/min) |
Noise (dBA) |
Capacitance (UF/VDB) |
weight (kg) |

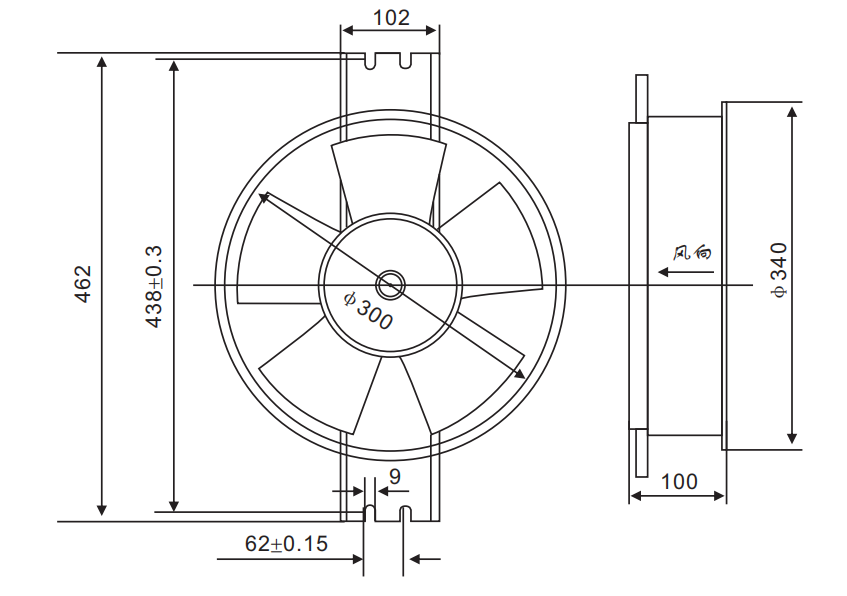

| 300x300x100 |
300FZY2-D Single-phase |
220 | 50 | 0.40 | 80 | 1300 | 30 | 65 | 2.4/500 | 3.8 |
|
300FZY3-D Three-phase |
380 | 50 | 0.20 | 80 | 1300 | 30 | 65 | / | 3.8 | |
|
300FZY4-D Single-phase |
380 | 50 | 0.22 | 80 | 1300 | 30 | 65 | / | 3.8 | |
|
300FZY6-D Single-phase |
220 | 50 | 0.95 | 190 | 2600 | 34 | 76 | 4/500 | 4.0 | |
|
300FZY7-D Three-phase |
380 | 50 | 0.35 | 190 | 2600 | 34 | 76 | 1/500 | 4.0 | |
|
300FZY8-D Single-phase |
380 | 50 | 0.55 | 190 | 2600 | 34 | 76 | 2.2/630 | 4.0 |
