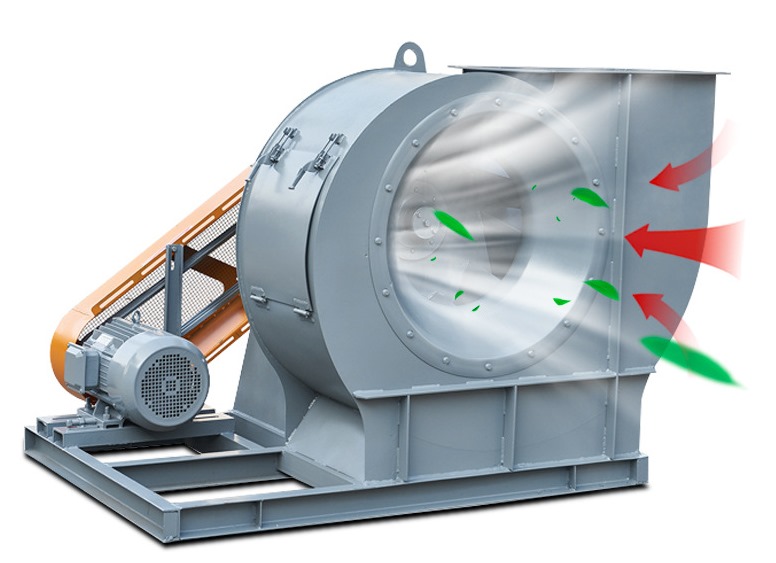

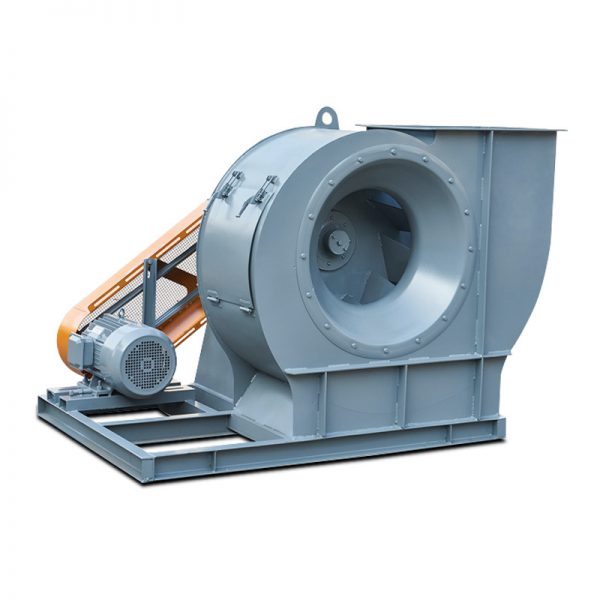

4-72C Industrial Dust Removal Exhaust Centrifugal Fan

The 4-72 series centrifugal fan can convey air and other non-hypergolic gas that is harmless to the human body, and non-corrosive to the steel. No sticky substance is allowed in the gas, and containing dust and solid particles shall be less than 150mg/m3.The gas temperature shall not exceed 80°C.The fan is characterized by favorable aerodynamic performan- ce, stable operation, low vibration, high efficiency and long service life. It is extensively used for indoor ventilation in industrial and mining enterprises, large buildings, hotels and restaurants.
The 4-72C series is a belt pulley driven centrifugal fan that is applicable for transporting gas in the high temperature environment or oily smoke environment. Its performance is nearly consistent with that of the 4-72 series. (Belt protection cover is optional).

Please click the inquiry button below to contact us

Click here to inquire
Category:

Description

Hongke 4-72C
4-72C Industrial environmental protection dust removal and exhaust pipe exhaust fan centrifugal fan

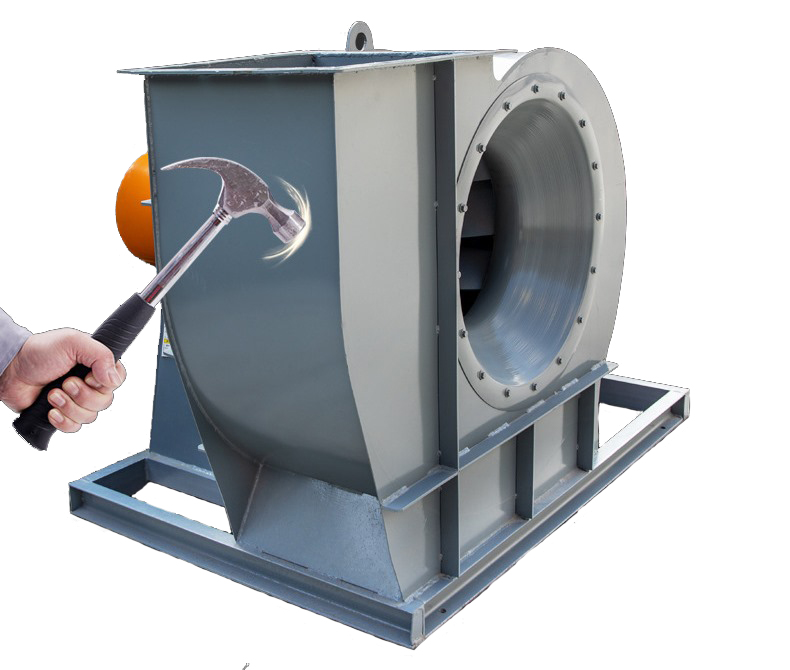

Thickened carbon steel shell
It is precisely formed by laser cutting and the surface is smooth and flat, the appearance is beautiful.It is anti-corrosion and wear-resistant.

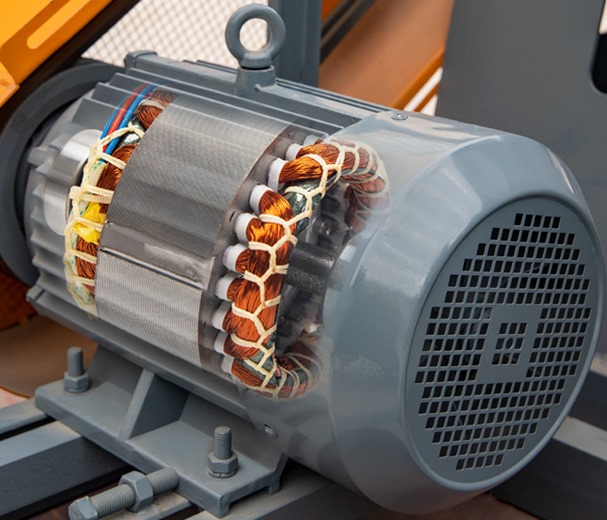

All copper motor
The all-copper motor has the characteristics of high efficiency, less heat, and not easy to burn out.

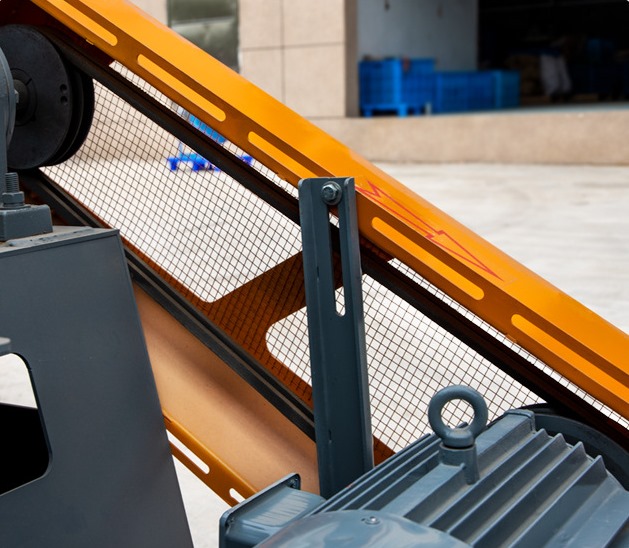

Belt transmission
Two belts drive the motor to rotate, which can reduce working noise and facilitate installation and maintenance.

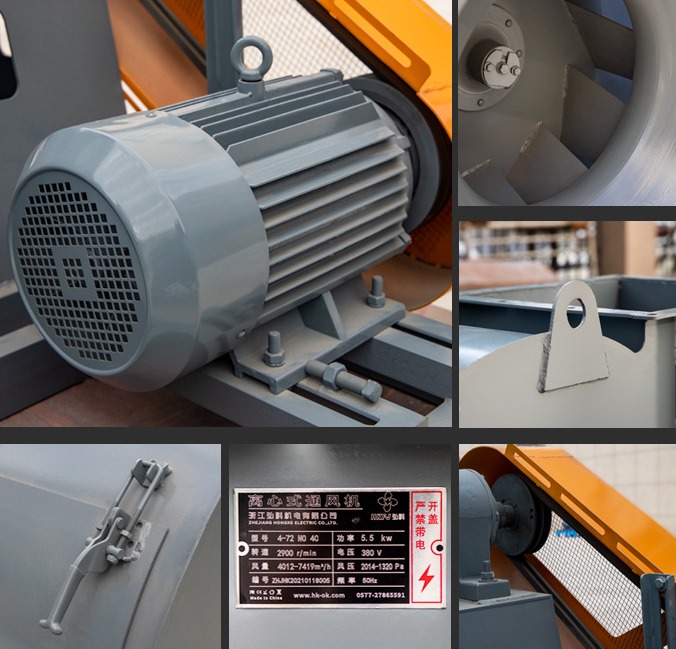

Product details
Backward inclined impeller and belt drive make the operation stable

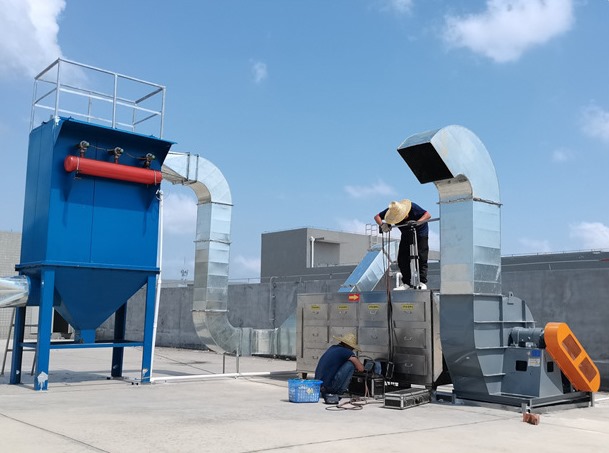

usage scenarios
This fan is widely used in power plants, boiler plants, paper mills, steel mills and other sites.

Technical parameters:
Model
Rotating speed
(r/mi n)
Matching motor
(Kw-p)
Air Flow
(m3/h)
Full pressure
(pa)
6.0C
2530
22-2
15242-21333
3488-2760
2400
18.5-2
14459-20237
3139-2484
2240
15-2
10314-20628
2734-1733
2000
11-4
9209-18418
2176-1380
1800
7.5-4
8288-16576
1760-1116
1600
5.5-4
7367-14734
1389-881
1250
3-4
5756-11511
846-537
6.3C
2350
22-2
16389-22939
3318-2626
2200
18.5-2
15342-21474
2908-2303
2050
15-4
14297-20010
2525-1998
1900
11-4
13260-18546
2169-1718
1600
7.5-4
11158-15618
1538-1218
1300
5.5-4
9066-12689
1015-804
7.1C
2000
30-2
19965-27944
3052-2415
1920
22-4
19166-26826
2813-2226
1800
18.5-4
15736-25265
2422-1801
1600
15-4
13987-22635
1914-1423
1450
11-4
12676-20513
1573-1168
1200
5.5-4
10490-16976
1076-800
8C
2150
45-2
30702-42972
3102-2455
1800
37-4
28105-36427
2920-2302
1800
30-4
25704-35977
3139-2484
1600
22-4
21848-30580
2268-1795
1450
18.5-4
15826-29344
2032-1400
1400
15-4
19992-27982
1899-1503
1250
11-4
13643-25297
1507-1106
1250
7.5-4
12224-15705
1209-1166
1120
11-4
17487-22666
1124-887
1120
5.5-4
10914-14022
963-929
1000
7.5-4
15614-20237
895-707
9C
1300
22-4
26432-36996
2072-1640
1450
30-4
29482-41265
2780-2040
1550
37-4
30092-42118
2686-2125
1650
45-4
33548-46956
3338-2642
10C
1470
55-4
40999-55854
3271-2589
1360
45-4
37931-53091
2800-2216
1250
37-4
34863-48797
2373-1877
1120
30-4
31237-43722
1902-1505
1000
18.5-4
27890-39038
1514-1199
900
15-4
25101-35134
1225-970
800
11-4
22312-31230
967-766
710
7.5-4
19802-27717
761-603
12C
1210
90-4
89630-67930
3420-2630
1120
75-4
53978-75552
2746-2172
1000
45-4
48195-60397
2185-1969
1000
55-4
63953-67457
1859-1729
900
37-4
43375-60712
1767-1399
800
30-4
45391-53996
1321-1104
800
22-4
38556-41973
1395-1376
710
18.5-4
34218-47895
1097-869
630
15-6
30362-42498
863-684
13C
1280
132-4
78433-109780
4191-3317
1200
110-4
73531-102918
3681-2915
1120
90-4
68629-96057
3209-2540
1050
75-4
64339-90054
2820-2232
960
55-6
58825-82335
2358-1866
890
45-6
54535-76331
2026-1604
14C
1120
132-4
85716-119973
3722-2945
1050
110-4
80358-112475
3271-2589
990
90-6
75767-106048
2908-2301
930
75-6
71175-99621
2566-2031
850
55-4
65052-91051
2144-1696

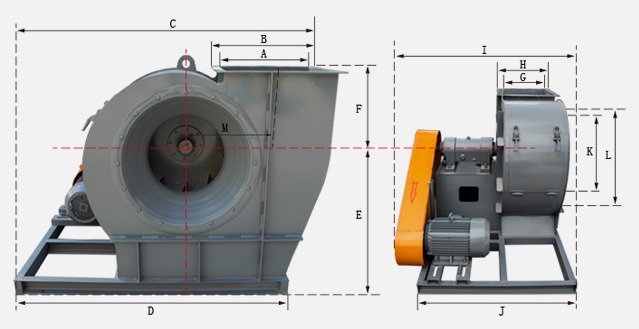

Model A B c D E F G H I J K L M
6C 480 560 1600 1350 638 404 420 500 1150 965 600 632 417
6. 3C 500 580 1593 1380 667 424 440 520 1161 985 630 676 437
7. 1C 568 648 1760 1480 798 465 490 570 1200 1030 710 760 493
8C 640 720 2000 1750 858 535 560 640 1440 1180 800 850 556
9C 720 820 2228 1850 970 600 630 730 1715 1510 900 950 628
10C 800 900 2340 2000 1058 665 700 800 1740 1500 1000 1050 705
12C 960 1060 2660 2270 1267 794 840 940 2000 1700 1200 1250 12C
