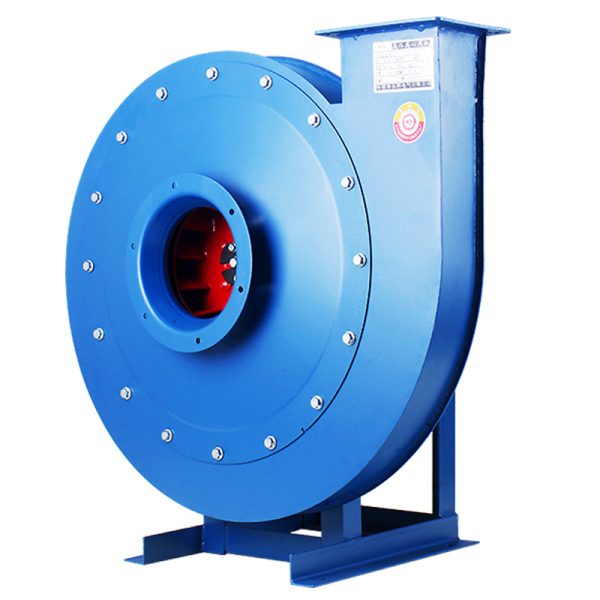

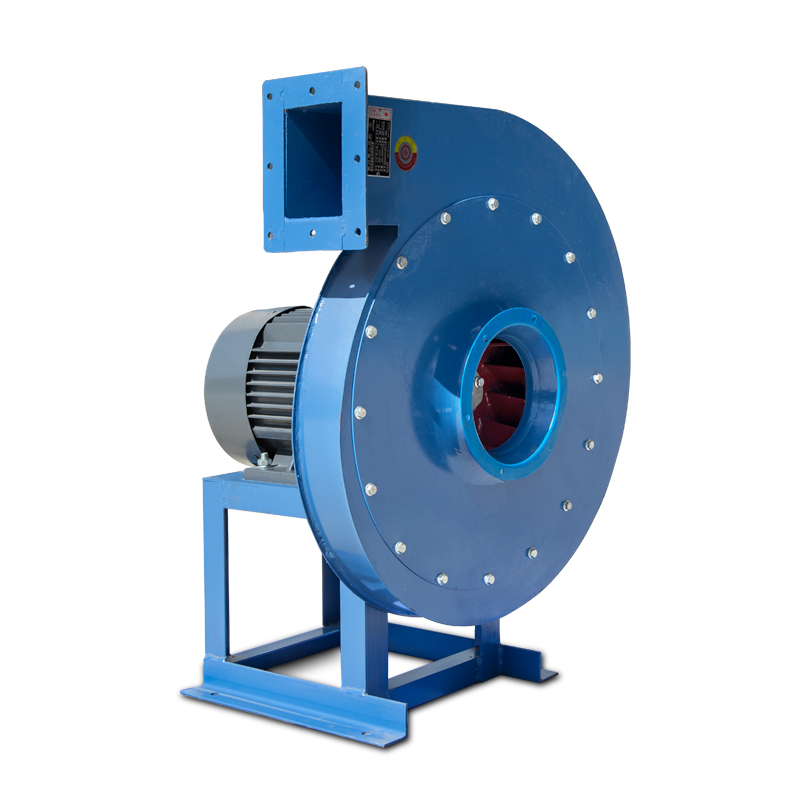

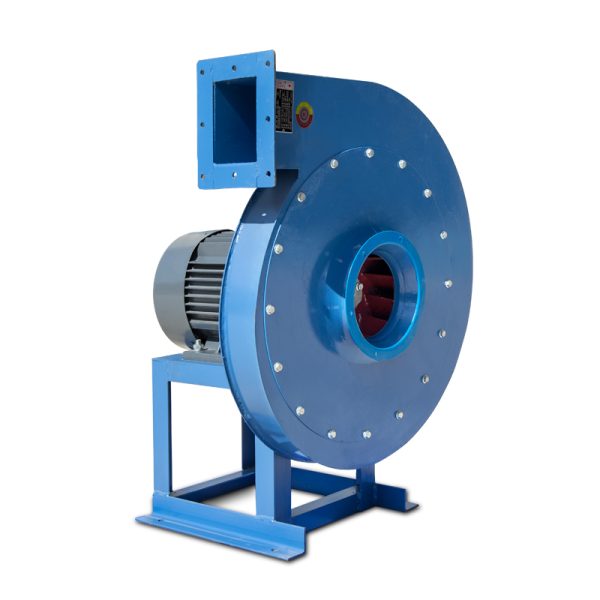

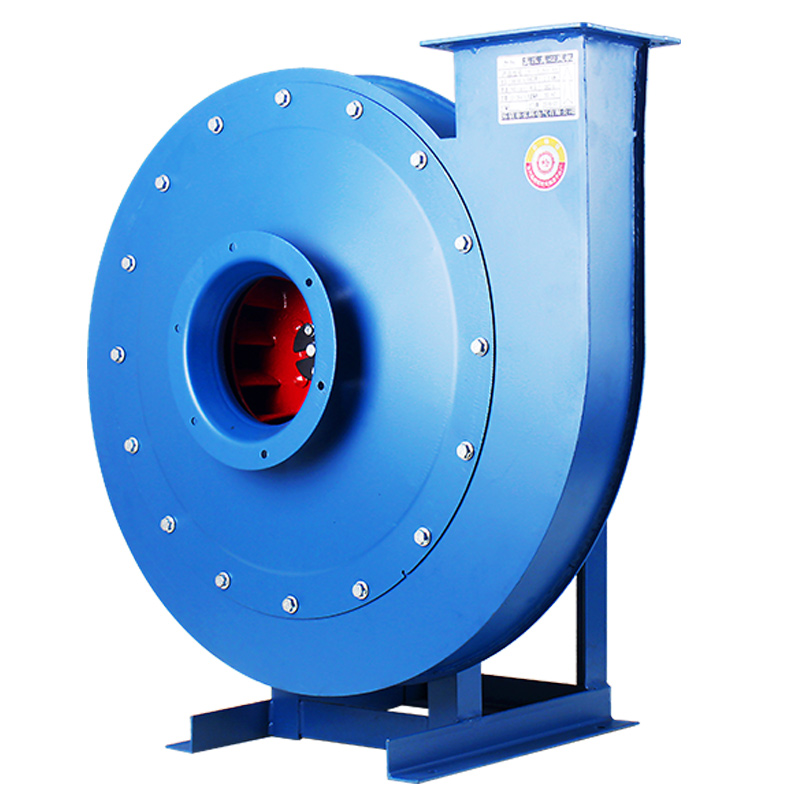

9-19 series high pressure centrifugal fan

9-19 series high-pressure centrifugal fans can be extensively used in conveying materials, air as well as non-corrosive, and non-hypergolic gas containing no viscous substance. The temperature of the conveyed medium is generally not more than 80ºC, and dust and solid particles shall be less than 150mg/m3. It is suitable for high pressure forced ventilation in general forging, glass, ceramics, radio, electroplating, storage batteries, and other industries as well as materials conveying in processing industries such as grain, feed, mineral powder, and plastics.

Power：0.75KW-30KW
Air volume：390m3/h-6978m3/h
Rotating speed：2900r/min

Please click the inquiry button below to contact us

Click here to inquire
分类： ,

描述

Specification:

9-19 high pressure centrifugal fan

High wind pressure｜Large air volume｜Multi-angle installation

Copper core motor

Pure copper coil, large rotating torque, strong power and stable operation

Cold rolled steel impeller

Made of cold-rolled steel plate, high hardness, not easy to deform, and strict dynamic balance calibration

Seismic design

Integrated base, triangle mechanical fixation, reduce vibration, ensure smooth operation of the fan

Product details

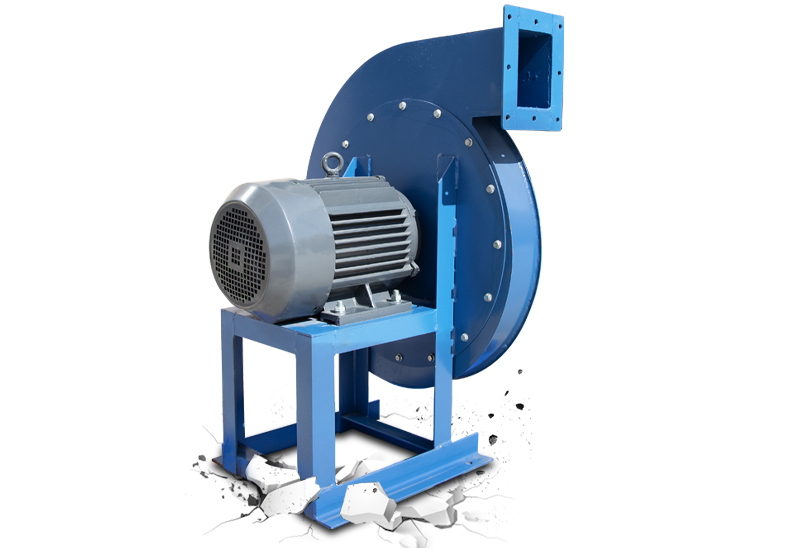

Copper core motor Lifting ring Multi-wing impeller Multi-angle air outlet

Technique parameters:

Machine number Equipped with motor
Rotating speed(r/min)		 Flow(m3/h) Full pressure(pa)
Model Power(kw-P)
3.15A Y801-2 0.75-2 2900 390-810 1919-1953
3.55A Y90S-2 1.5-2 2900 560-760 2545-2590
4A Y90L-2 2.2-2 2900 824-1264 3584-3597
Y100L-2 3-2 2900 1410-1704 3507-3253
4.5A Y112M-2 4-2 2900 1174-2062 4603-4447
Y132S1-2 5.5-2 2900 2281-2504 4297-4112
5A T132S1-2 7.5-2 2900 3166-3488 5697-5323
T160M1-2 11-2 2900 1610-3488 5323-5080
5.6A T160M-2 11-2 2900 2262-3619 7182-7109
T160L-2 18.5-2 2900 3996-4901 6954-6400
6.3A Y160L1-2 18.5-2 2900 3220-5153 9149-9055
Y200L2-2 30-2 2900 5690-6978 8857-8148





Machine number A C D D1 E E1 H H1 Φ Φ1
3.15A 220 290 155 95 130 70 225 300 190 130
3.55A 240 310 165 105 142 82 265 375 190 130
4A 340 415 195 135 155 95 310 465 260 200
4.5A 340 420 200 140 160 100 315 490 260 200
5A 370 440 215 155 180 120 335 500 260 200
5.6A 430 440 235 175 190 130 370 540 290 230
6.3A 450 540 290 190 210 150 435 550 340 290
