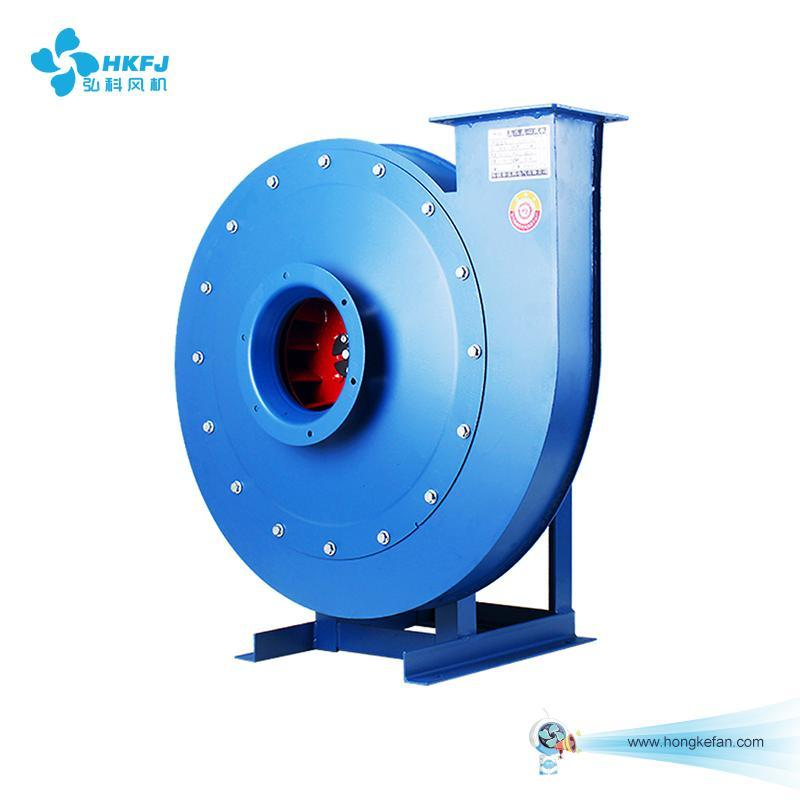

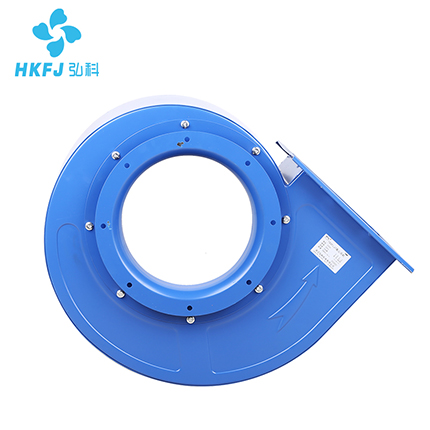

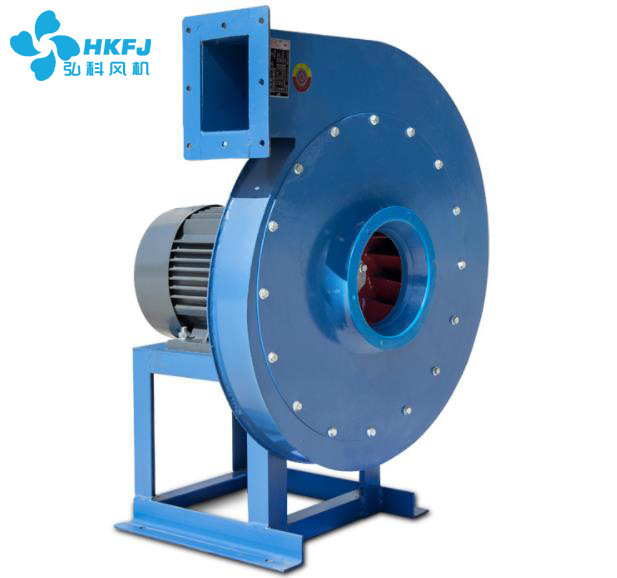

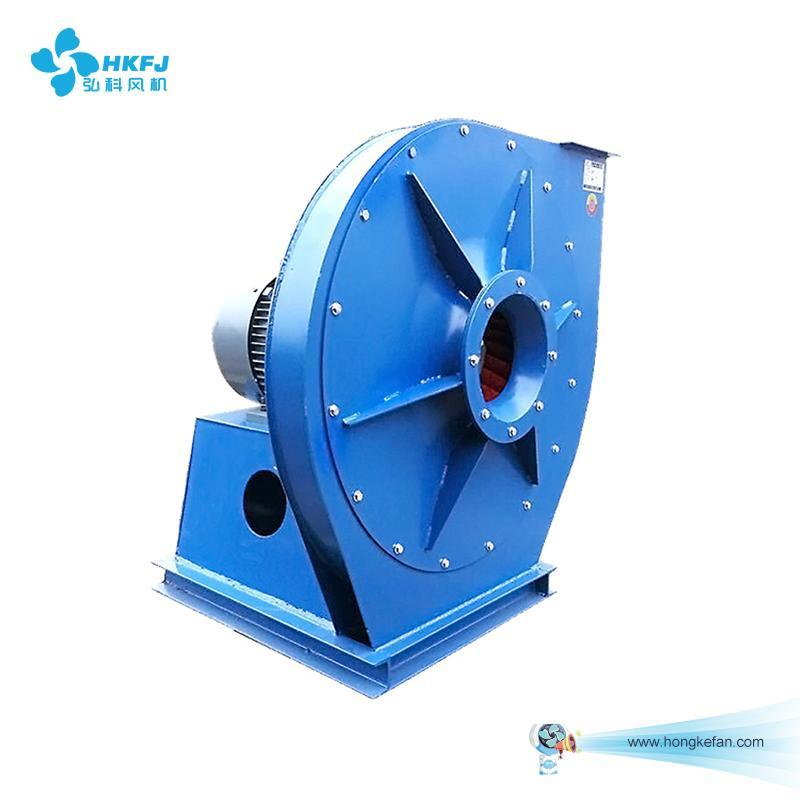

9-26 series high pressure centrifugal fan

9-26 series high-pressure centrifugal fans can be extensively used in conveying materials, air as well as non-corrosive, and non-hypergolic gas containing no viscous substance. The temperature of the conveyed medium is generally not more than 80ºC, and dust and solid particles shall be less than 150mg/m3. It is suitable for high pressure forced ventilation in general forging, glass, ceramics, radio, electroplating, storage batteries, and other industries as well as materials conveying in processing industries such as grain, feed, mineral powder, and plastics.

Power：5.5KW-55KW
Air volume：2198m³/h-13525m³/h
Rotating speed：2900r/min

Please click the inquiry button below to contact us

Click here to inquire
分类： ,

描述

Specification:

9-19 high pressure centrifugal fan

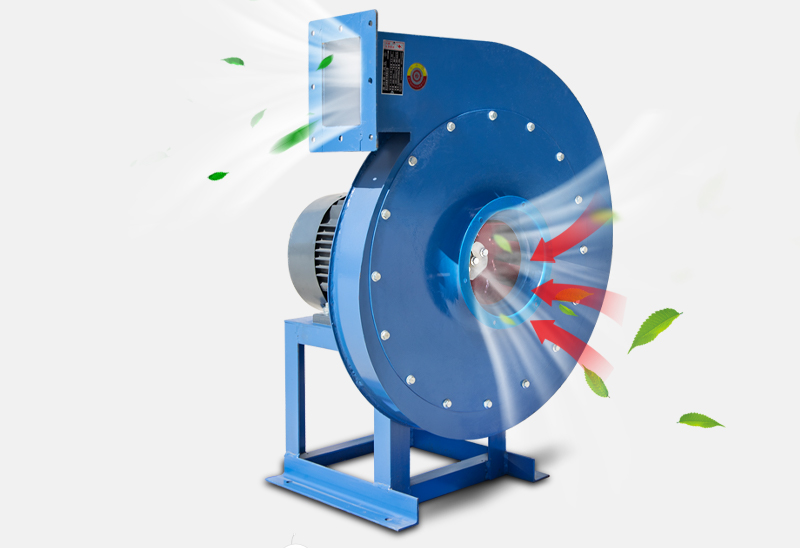

High wind pressure｜Large air volume｜Multi-angle installation

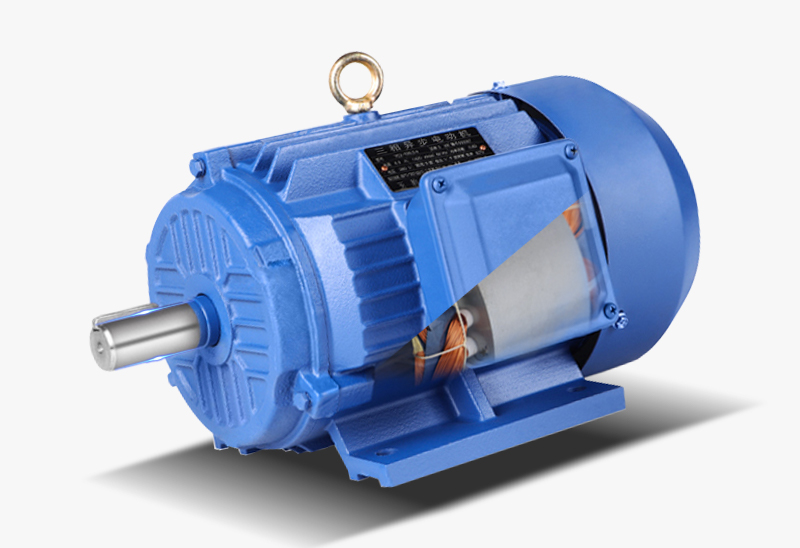

Copper core motor

Pure copper coil, large rotating torque, strong power and stable operation

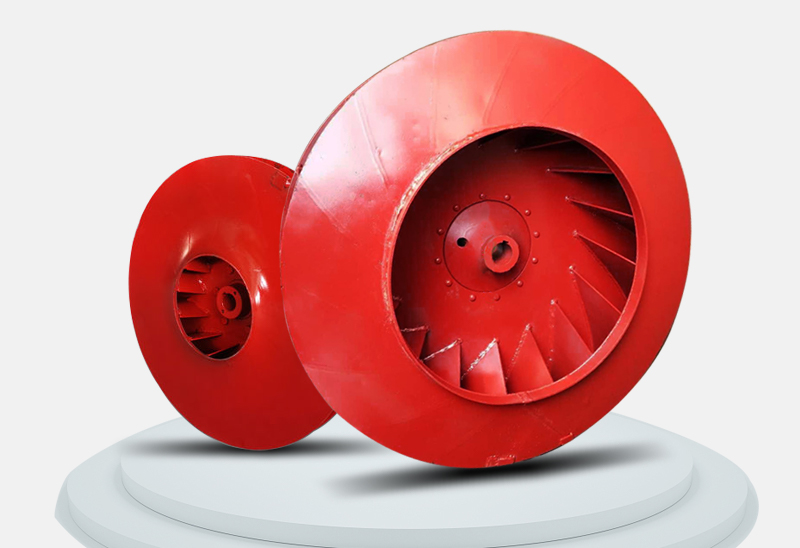

Cold rolled steel impeller

Made of cold-rolled steel plate, high hardness, not easy to deform, and strict dynamic balance calibration

Seismic design

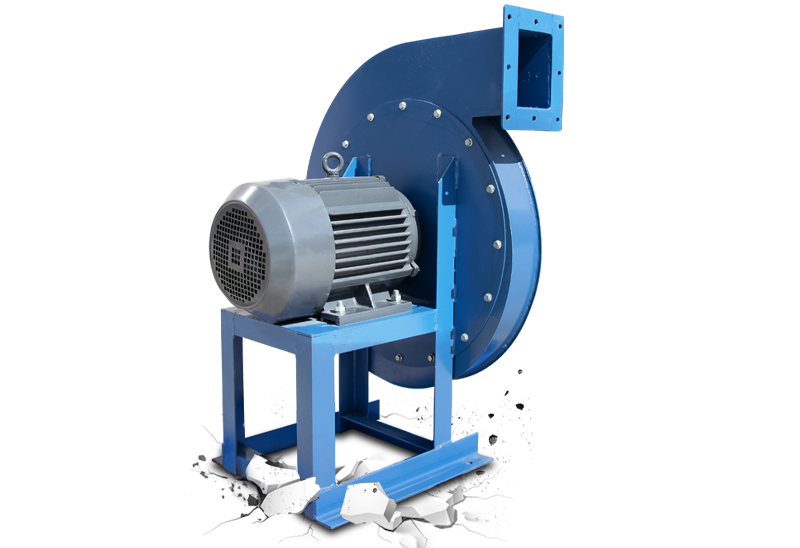

Integrated base, triangle mechanical fixation, reduce vibration, ensure smooth operation of the fan

Product details

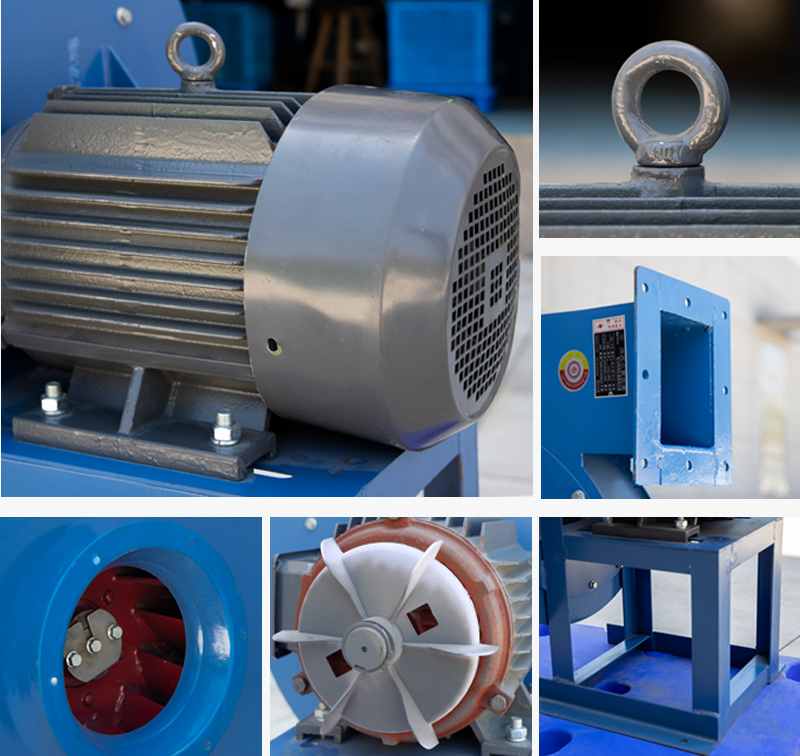

Copper core motor Lifting ring Multi-wing impeller Multi-angle air outlet

Technique parameters:



Machine number Equipped with motor
Rotating speed(r/min)		 Flow(m3/h) Full pressure(pa)
Model Power(kw-P)
4A Y132S1-2 5.5-2 2900 2198-3215 3852-3407
4.5A Y132S2-2 7.5-2 2900 3130-3685 4910-4776
Y160M1-2 11-2 2900 3963-4792 4661-4256
5A Y160M2-2 15-2 2900 4293-6349 6035-5384
Y160L-2 18.5-2 2900 4293-6762 6035-5180
5.6A Y180M-2 22-2 2900 6032-7185 7610-7400
Y200L1-2 30-2 2900 7766-9500 7218-6527
6.3A Y225M-2 45-2 2900 8588-11883 9698-8915
Y250M-2 55-2 2900 12699-13525 8636-8310

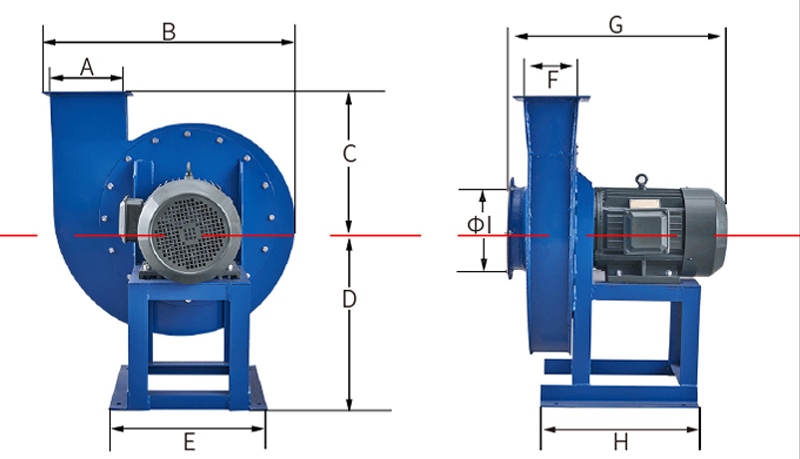

Machine number A C D D1 E E1 H H1 Φ Φ1
4A 380 475 225 195 190 130 360 460 240 195
4.5A 400 510 280 220 205 145 400 520 310 250
5A 430 530 310 240 225 165 465 540 350 280
5.6A 540 530 335 270 240 180 500 620 370 310
6.3A 600 580 400 340 270 210 560 660 410 350
