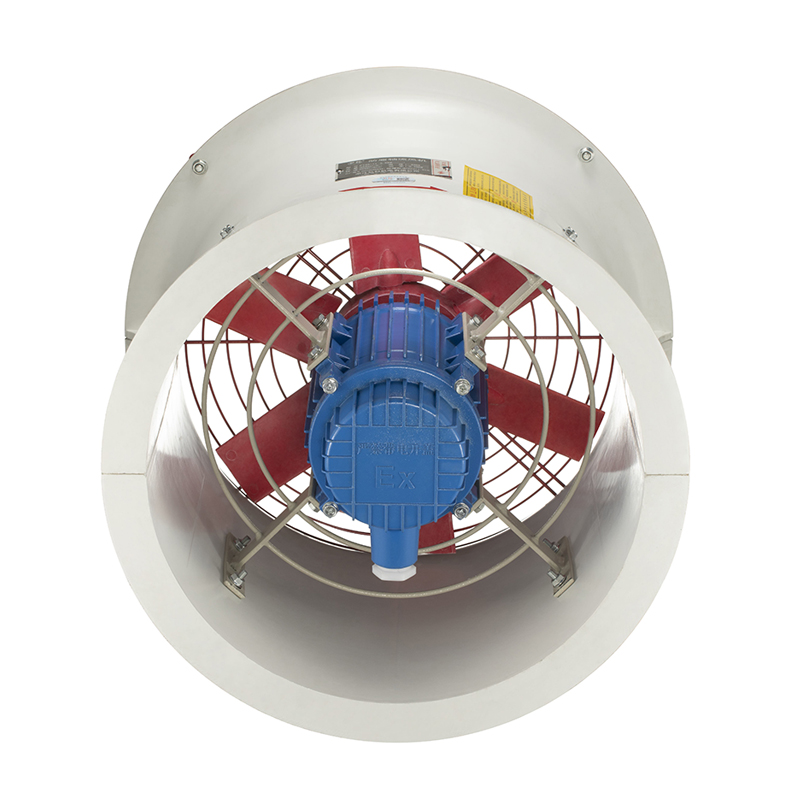

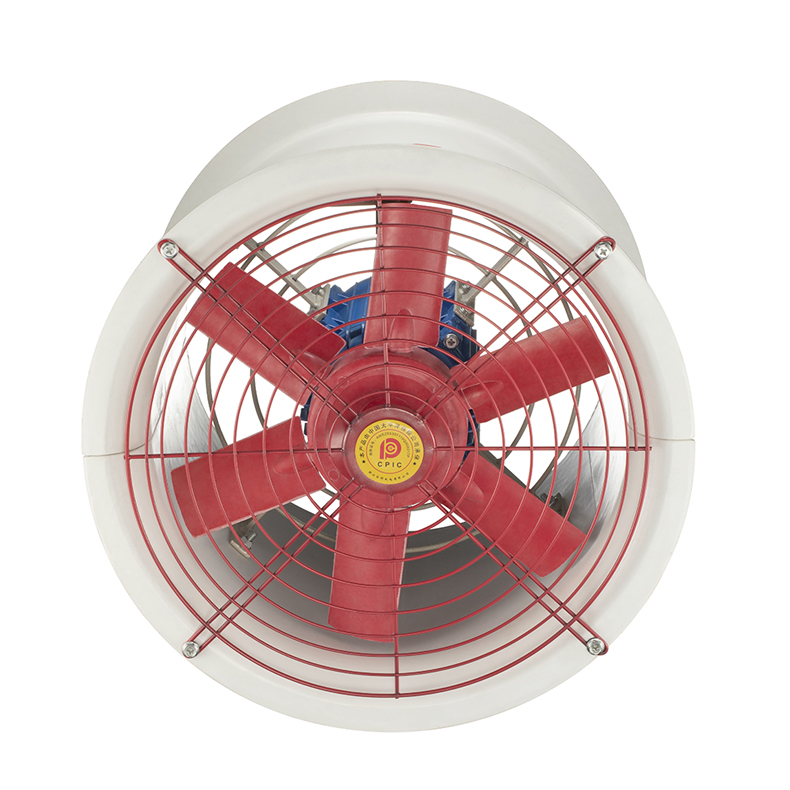

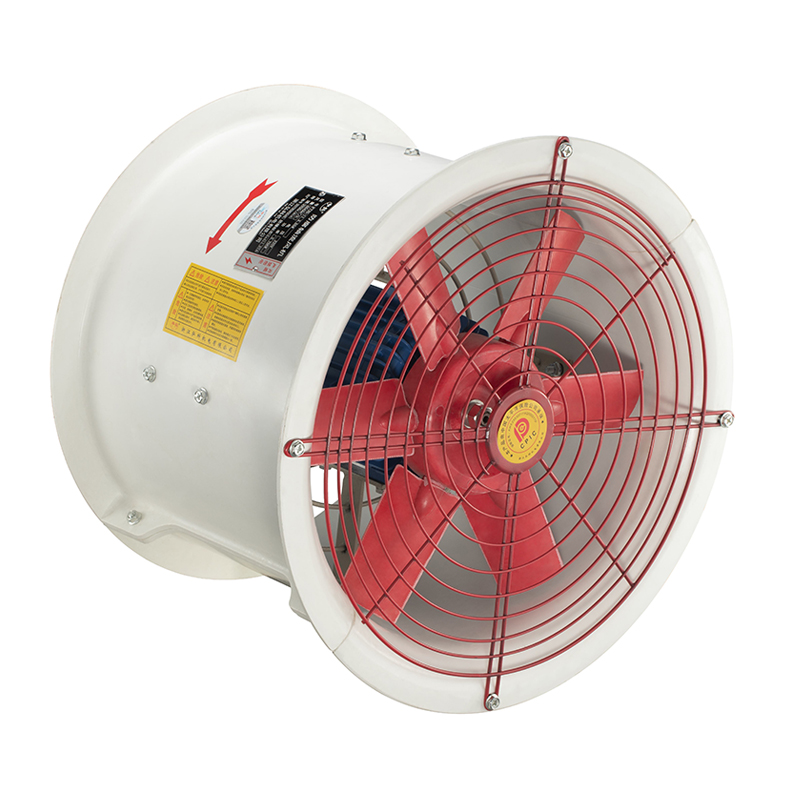

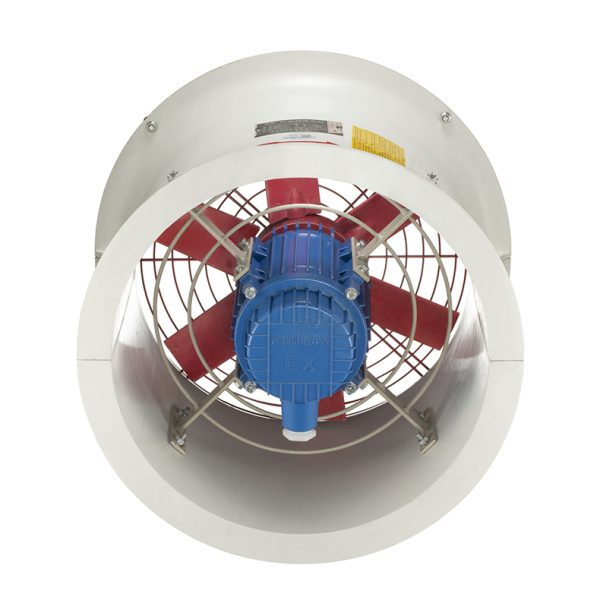

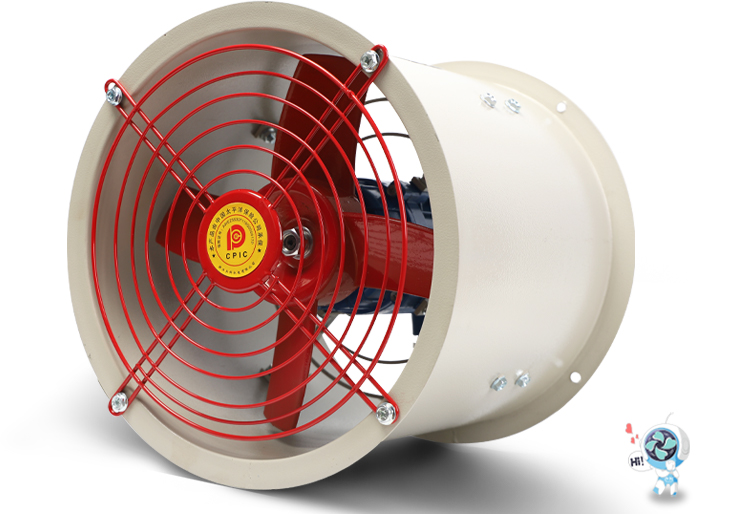

BT35-11 explosion proof fan

Description

Specification:



The BT35-11 series explosion-proof fan is also a derivative product of T35-11 series with the explosion-proof sign of “d II BT4 Gb”, that is, an explosion-proof type, belonging to the Class IIB electrical equipment. Its highest surface temperature is T4 group (135℃). Also, the equipment has the protection class of “EPLGb”, presenting a “high” protection class, that is, the equipment is not a source of ignition under normal operation or expected fault conditions. The impeller is made of aluminum. Product performances and specifications are the same as that of the T35-11 series.

Explosion-proof motors and Aluminum alloy blades

The traditional color still make people happy, and simple tonal collocation, bold stripes can transform bring new look, let you become the new darling.

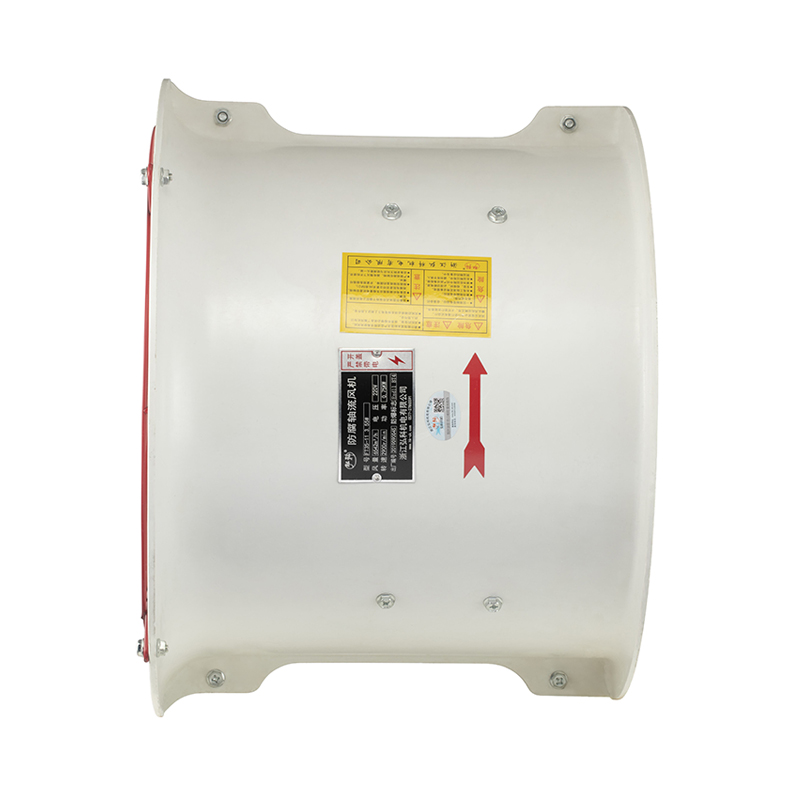

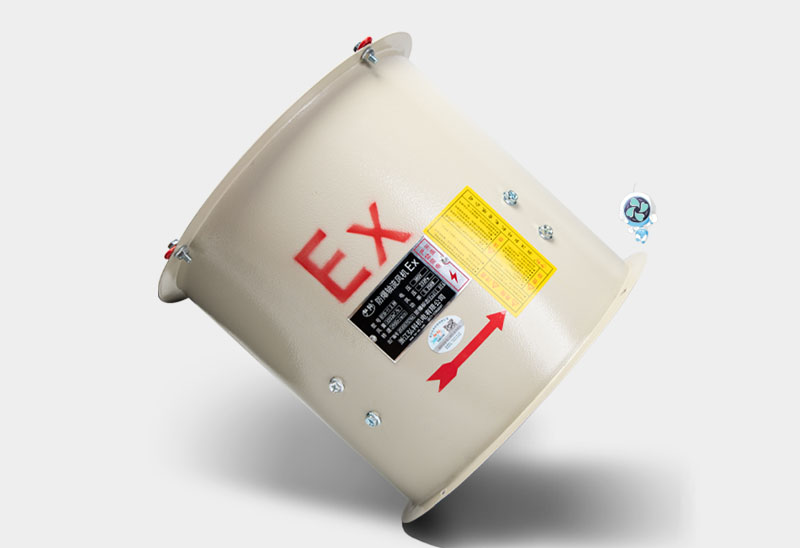

Carbon steel shell

Surface is smooth and flat ,and spray paint treatment by high temperature

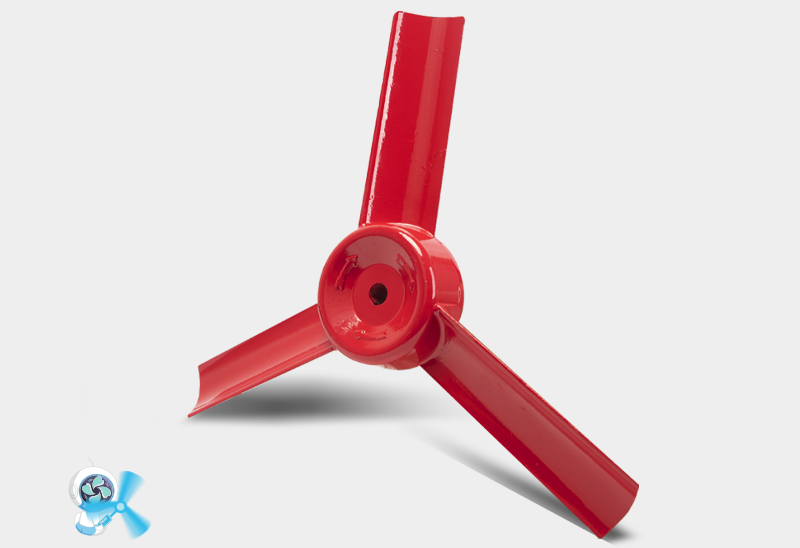

Cast aluminum fan blade

The fan blades run smoothly with large air volume and low noise

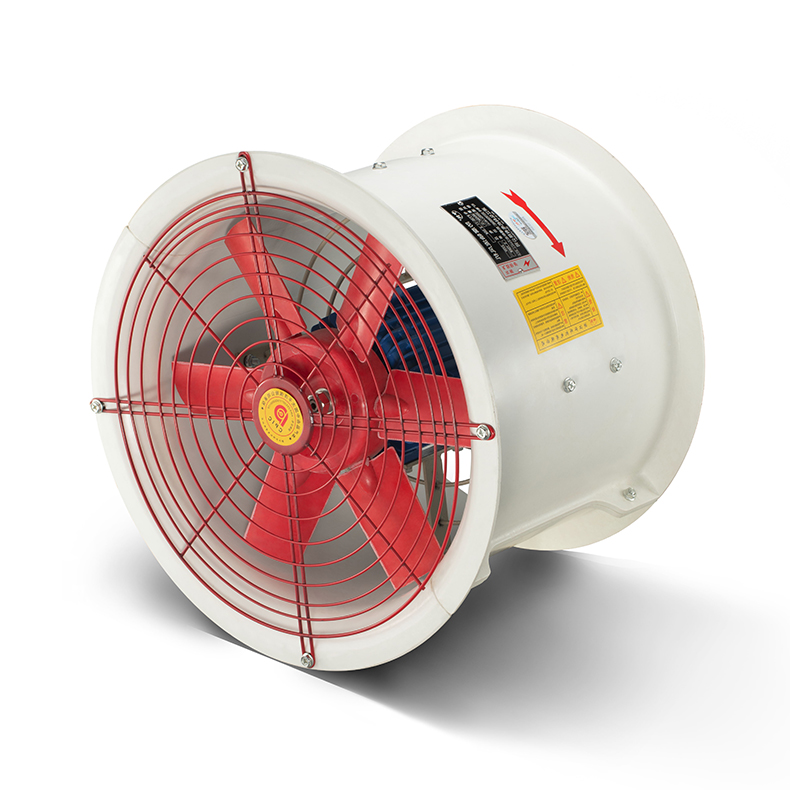

Product details

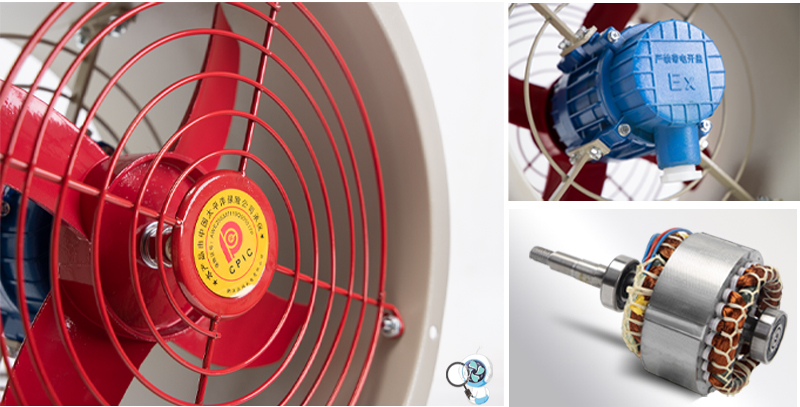

9mm safety net cover, pure copper core wire, cast aluminum explosion-proof motor

Technique parameters:

Specifications	Speed (r/min)	Air volume (m3/h)	Total Pressure (pa)	Power (kw)
BT35-11-2.8#	1450	1605	60	0.18
	2900	3202	232	0.25
BT35-11-3.15#	1450	2273	74	0.25
	2900	4545	373	0.37
BT35-11-3.55#	1450	3265	93	0.37
	2900	6542	373	0.75
BT35-11-4#	1450	4687	119	0.55
	2900	9336	474	1.1
BT35-11-4.5#	1450	6658	150	0.55
BT35-11-5#	1450	9133	185	0.75
BT35-11-5.6#	1450	12812	232	1.1
BT35-11-6.3#	1450	18250	294	1.5
	1450	19500	320	2.2
BT35-11-7.1#	1450	26120	373	3
BT35-11-8#	1450	37370	474	4
	960	24739	208	2.2
BT35-11-9#	960	35227	263	3
BT35-11-10#	960	48326	321	4
BT35-11-11.2#	960	67892	407	7.5

Specification	A	B	C	Φ	H	Mounting holes
2.8	370	350	280	314	280	4-Φ7
3.15	400	393	315	355	290	4-Φ7
3.55	448	433	355	387	335	4-Φ7
4	500	476	396	437	335	4-Φ7
4.5	555	525	445	487	352	4-Φ7
5	630	578	498	538	365	4-Φ7
5.6	683	640	560	596	407	4-Φ7
6.3	790	720	628	674	480	4-Φ7
