Cabinet heater

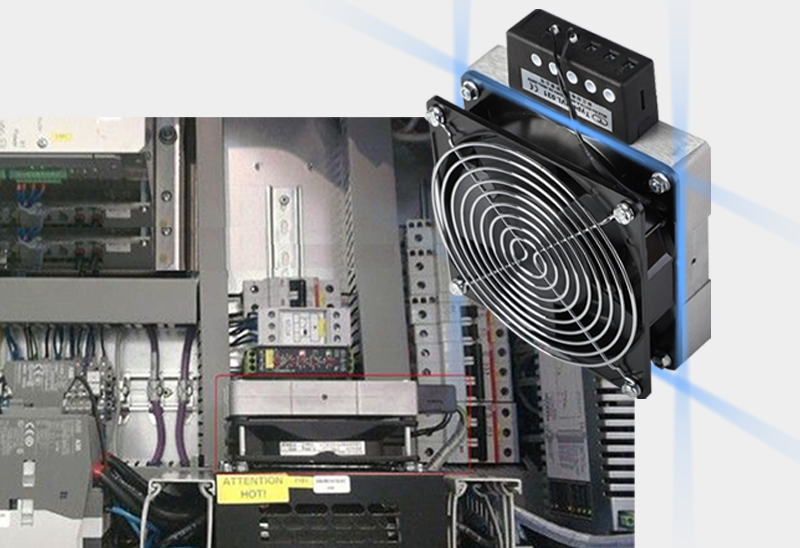

This series of products are mainly used for working when the working environment temperature is too high or too low, there is humidity or moisture production, and it is mainly used for power equipment (such as outdoor terminal boxes, high-voltage ground cabinets, handcart room switches cabinets, ring network switch cabinets)  , Underground substations, circuit breaker mechanism boxes, instrument boxes, etc.), and other occasions that require dehumidification and anti-condensation.

Power：100W-400W
Air volume：345m³/h-108m³/h

Please click the inquiry button below to contact us

Click here to inquire
分类： ,

描述

Specification:

Fast heating and rapid expansion, which can effectively solve the condensation and frosting of cabinet. Create appropriate temperature and humidity conditions for air components in the cabinet



Quickly dissipate heat

Oil-resistant, strong wind and not easy to rust

Easy to install

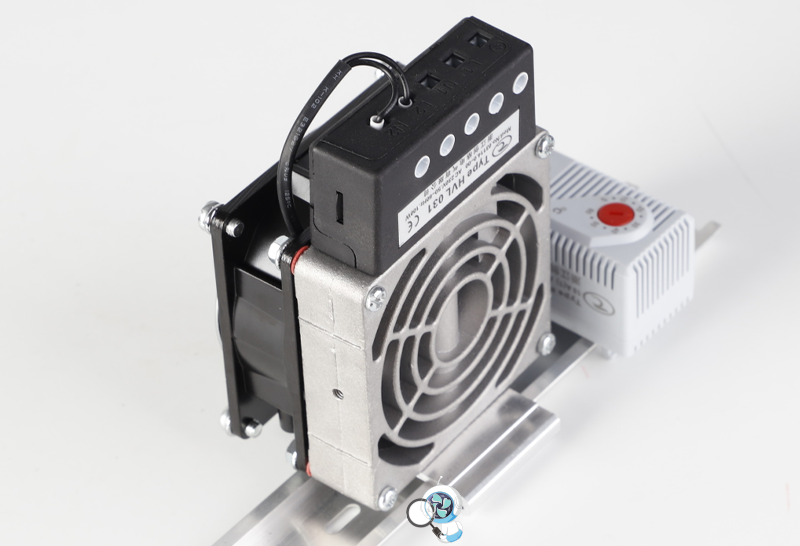

35mm standard guide rail installation, it can be easily installed into the cabinet, don’t need to perforate layout

Easy to install and clean

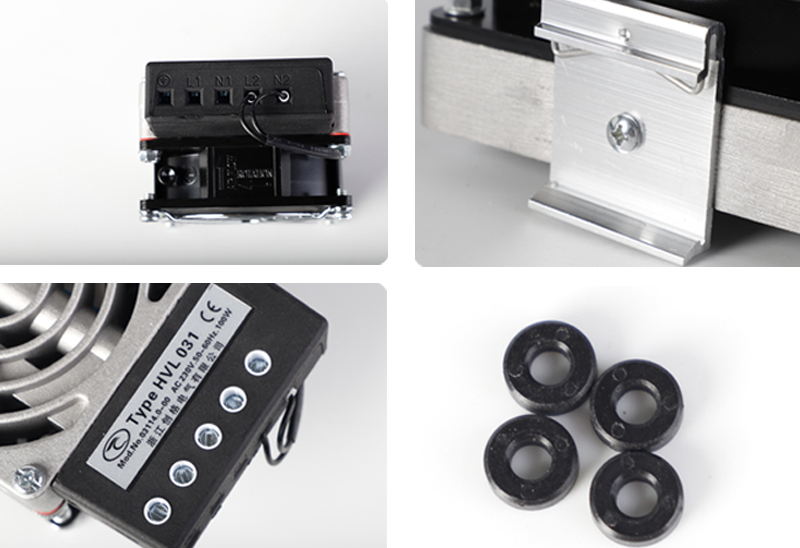

Product details

Craftsmanship, we strive for perfection in the quality of every detail

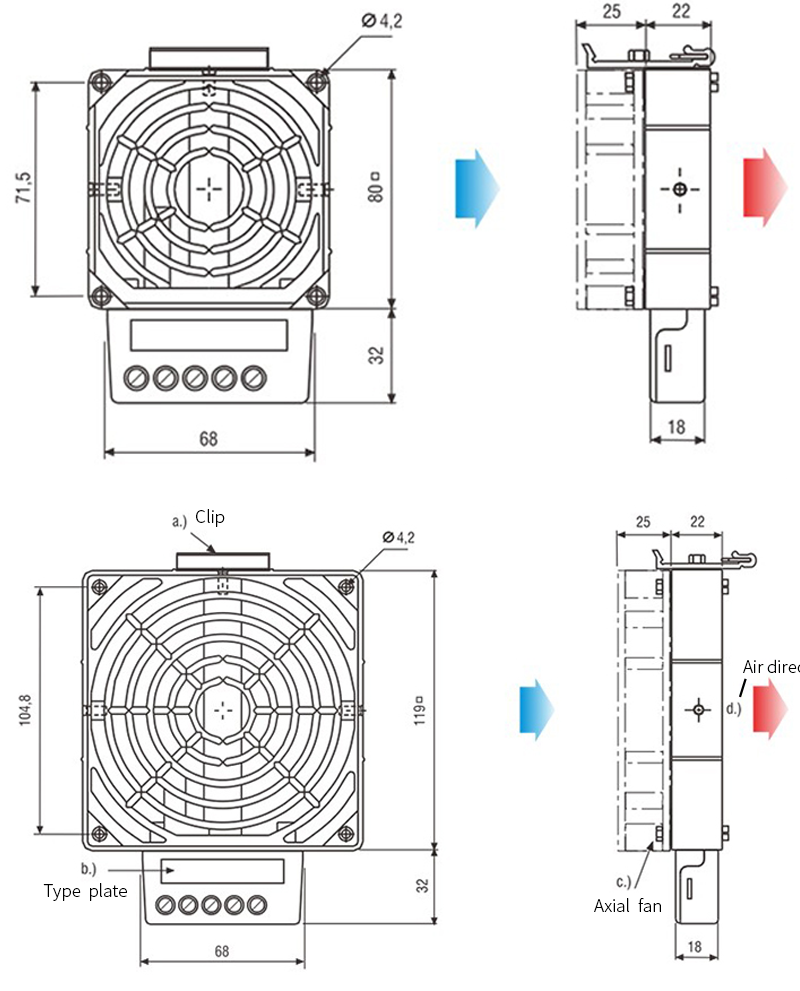

Technique parameters:

        Heatingcapabilities                   Dimensions                   Weight ( approx.)
100W 80x112x22mm 0.40kg
150W 80x112x22mm 0.40kg
200W 119x151x22mm 0.50kg
300W 119x151x22mm 0.50kg
400W 119x151x22mm 0.50kg
   Heatingcapabilities     Airflow min , free flow        Dimensions         Weight ( approx.)
100W 35m3/h 80x112x22mm 0.60kg
150W 35m3/h 80x112x22mm 0.60kg
200W 108m3/h 119x151x22mm 0.90kg
300W 108m3/h 119x151x22mm 0.90kg
400W 108m3/h 119x151x22mm 0.90kg

Please fill out the form below and we will contact you as soon as possible.
