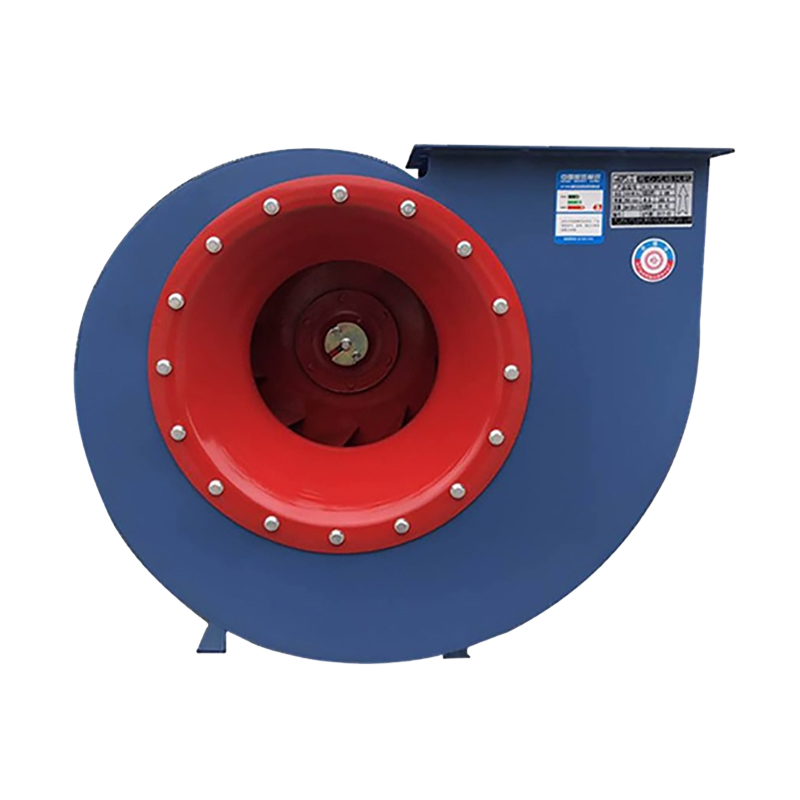

Centrifugal fan 4-72A sawdust conveying dust exhaust fan

描述

Specification:
The 4-72 series centrifugal fan can convey air and other non-hypergolic gas that is harmless to the human body, and non-corrosive to the steel. No sticky substance is allowed in the gas, and containing dust and solid particles shall be less than 150mg/m3.The gas temp-erature shall not exceed 80°C.The fan is characterized by favorable aerodynamic performan-ce, stable operation, low vibration, high efficiency and long service life. It is extensively used for indoor ventilation in industrial and mining enterprises, large buildings, hotels and restaurants.

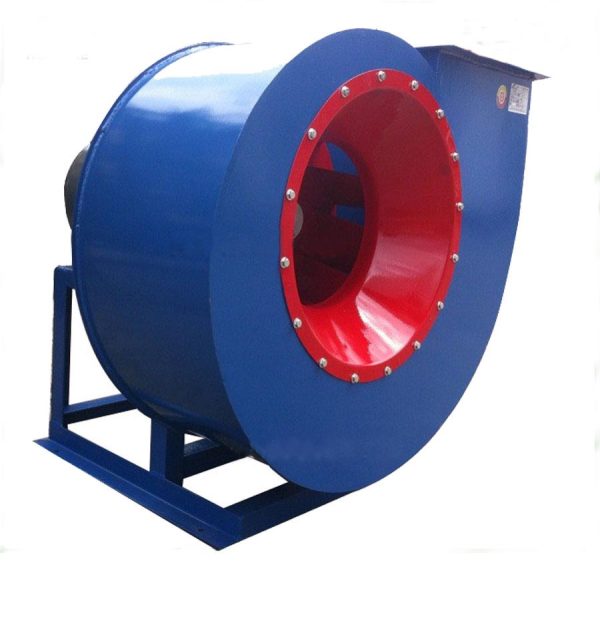

Carbon steel shell

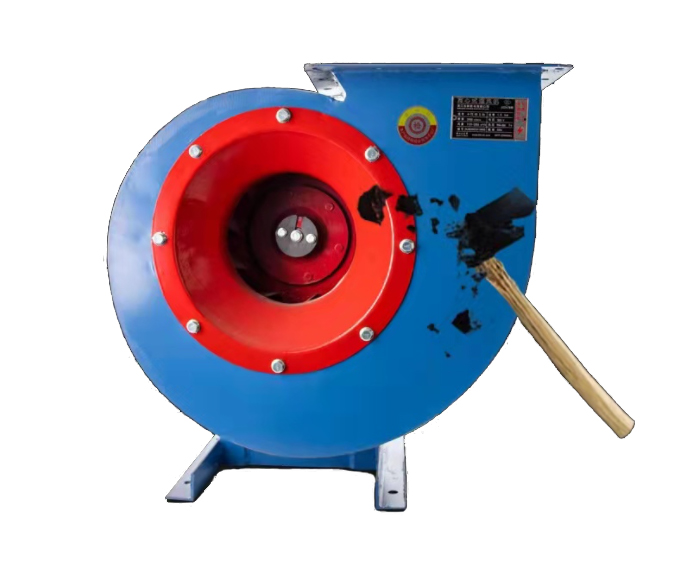

High hardness volute, porous design can not only prevent dust but also reduce noise, it is safer to use.

Internal analysis

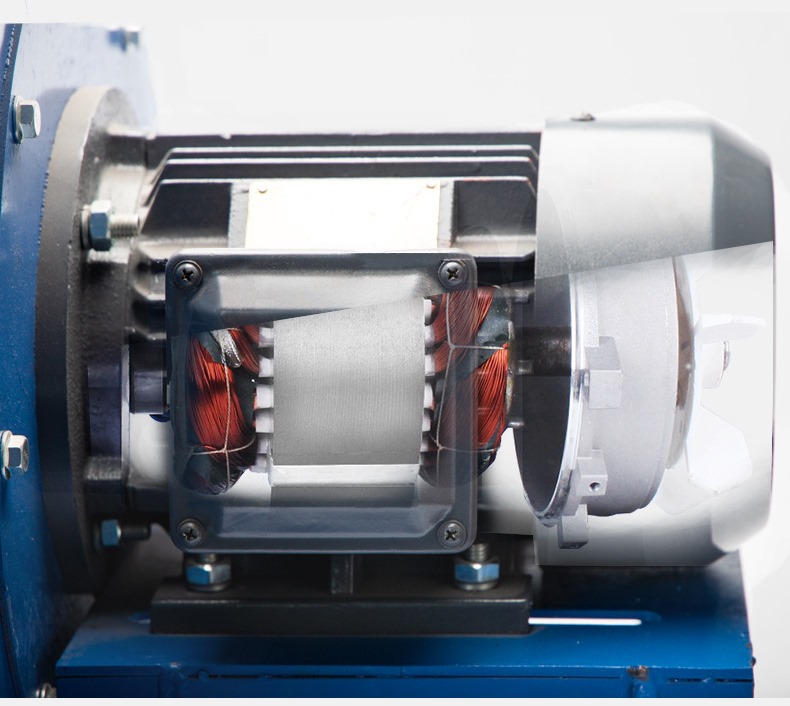

The built-in cooling fan of the motor cools the motor through the impeller when the motor is working

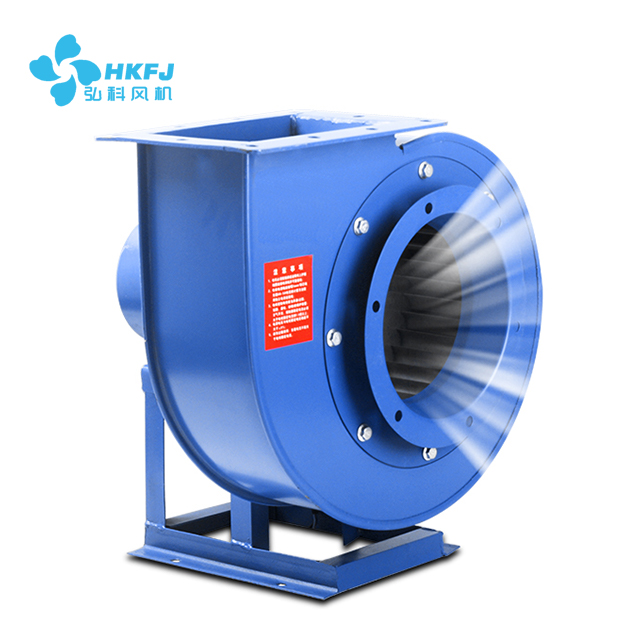

Product details

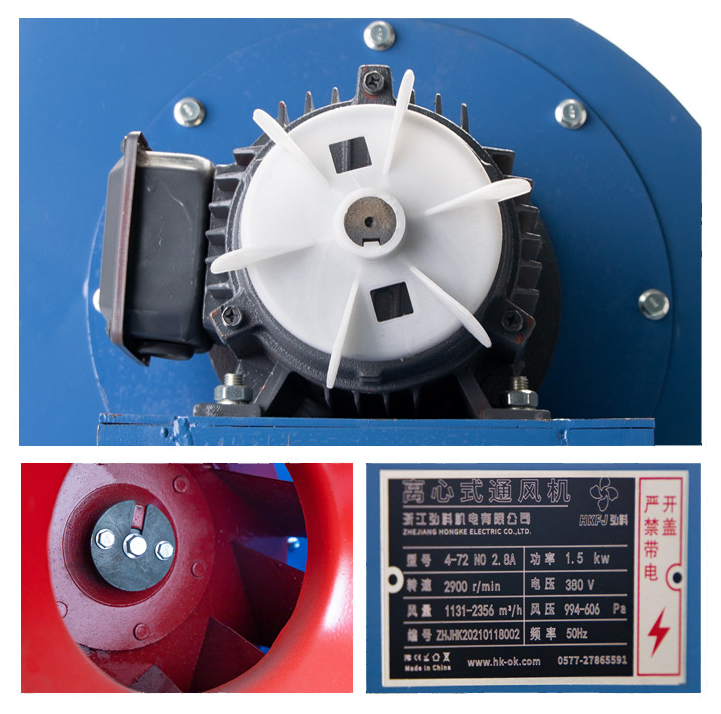

The motor has a built-in cooling fan, large-diameter air inlet, nameplate identification

Technique parameters:

Machine number	Equipped with motor model	Equipped with motor power (kW)	Voltage (V)	Rotating speed (r/min)	Flow rate (m3/h)	Total pressure (Pa)
2.8A	Y90S-2	1.5-2Single-phase	220	2900	1131-2356	994-606
		1.5-2Three-phase	380		1131-2356	994-606
3.2A	Y90L-2	2.2-2Single-phase	220	2900	1688-3517	1300-792
	Y90L-2	2.2-2Three-phase	380		1688-3517	1300-792
	Y90S-4	1.1-4Single-phase	220	1450	884-1758	324-198
	Y90S-4	1.1-4Three-phase	380		884-1758	324-198
3.6A	Y100L-2	3-2Three-phase	380	2900	2664-5268	1578-989
	Y90S-4	1.1-4Single-phase	220	1450	1332-2634	393-247
	Y90S-4	1.1-4Three-phase	380		1332-2634	393-247
4.0A	Y132S-2	5.5-2Three-phase	380	2900	4012-7419	2014-1320
	Y90S-4	1.1-4Single-phase	220	1450	2006-3709	501-329
	Y90S-4	1.1-4Three-phase	380		2006-3709	501-329
4.5A	Y132S2-2	7.5-2Three-phase	380	2900	5712-10562	2554-1673
	Y90S-4	1.1-4Three-phase	380	1450	2856-5281	634-416
5A	Y160M2-2	15-2Three-phase	380	2900	7728-15445	3187-2019
	Y100L-4	2.2-4Three-phase	380	1450	3864-7728	790-502
5.6A	Y100L-4	3-4Three-phase	380	1450	7062-9885	957-759
6A	Y112M-4	4-4Three-phase	380	1450	6677-13353	1139-724
6.3A	Y110L-6	1.5-6Three-phase	380	760	4420-8841	498-317
	Y132M-4	7.5-4Three-phase	380	1450	7729-15485	1256-789
7.1A	Y160M-4	11-4Three-phase	380	1450	12676-20513	1573-1168
	Y132S-6	3-6Three-phase	380	760	8392-13581	689-512

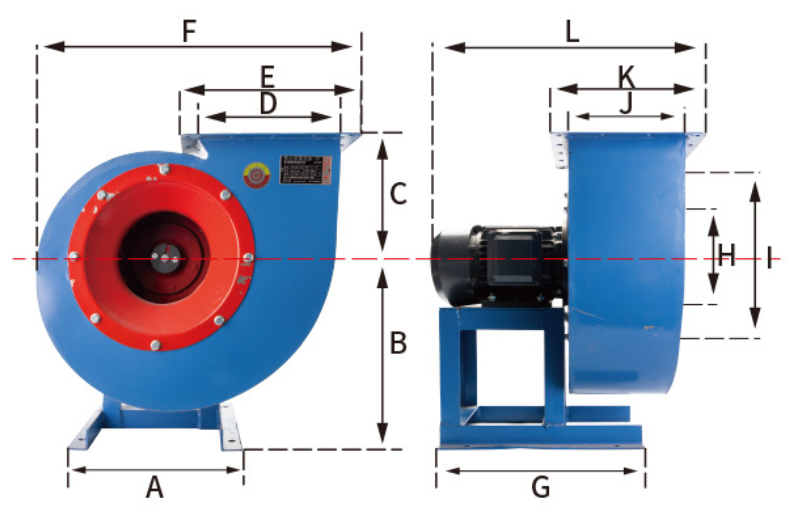

Model	A	B	C	D	E	F	G	H	I	J	K	L
3.6A 3KW-2P	360	400	248	288	348	722	450	360	415	252	312	604
4A 5.5KW-2P	410	507	274	320	380	798	550	400	470	280	340	675
4A 1.1KW-4P	410	507	274	320	380	798	550	400	470	280	340	675
4.5A	410	507	306	360	440	903	600	450	512	315	395	710
7.5KW-2P	410	507	306	360	440	903	600	450	512	315	395	710
4.5A	480	560	340	400	480	997	700	500	568	340	420	900
1.1KW-4P	480	560	340	400	480	997	700	500	568	340	420	900
5A 15KW-2P	480	600	378	445	525	1110	730	560	640	392	472	960
5A 2.2KW-4P	480	600	378	445	525	1110	730	560	640	392	472	960
5.6A 3KW-4P	480	640	405	480	560	1186	765	600	670	420	500	960
5.6A	480	640	405	480	560	1186	765	600	670	420	500	960
18.5KW-2P	500	662	425	500	580	1186	855	630	710	440	520	1030
