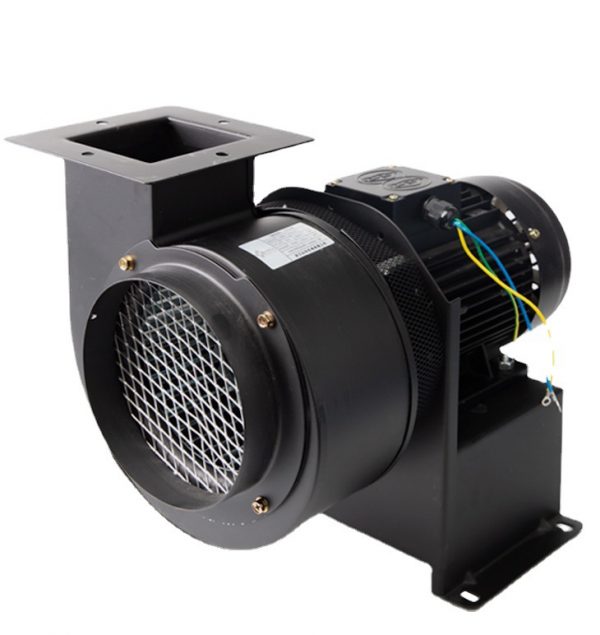

CY High Temperature Resistant Small Multi-blade Centrifugal Fan

Description

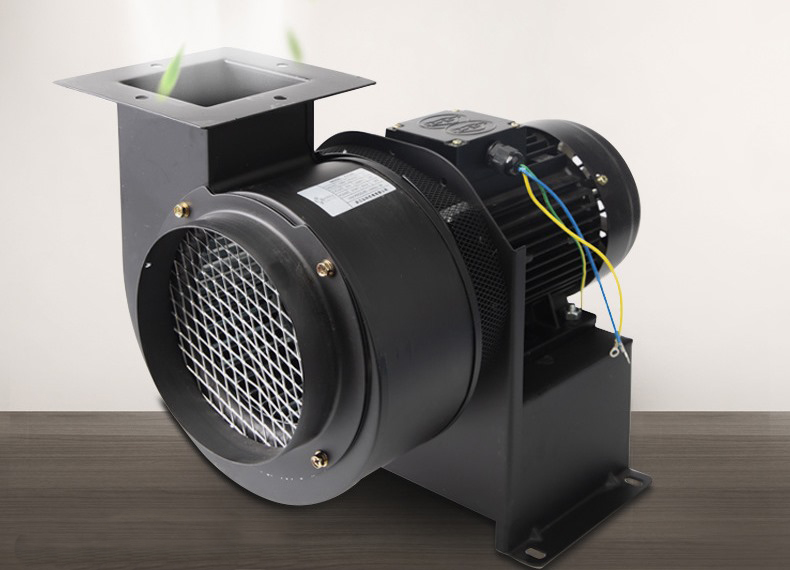

CY High Temperature Blower Centrifugal Fan

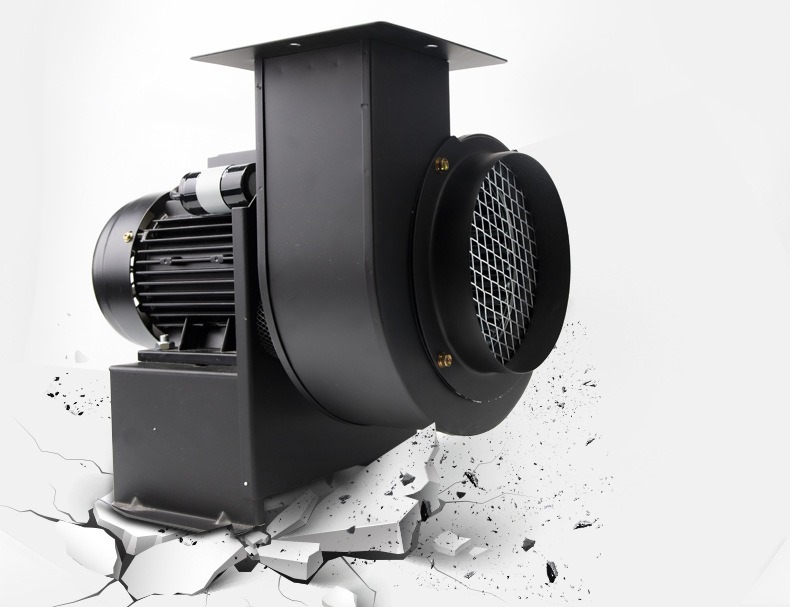

Carbon Steel Housing

Carbon steel casing makes the fan resistant to wear, corrosion, shock and drop

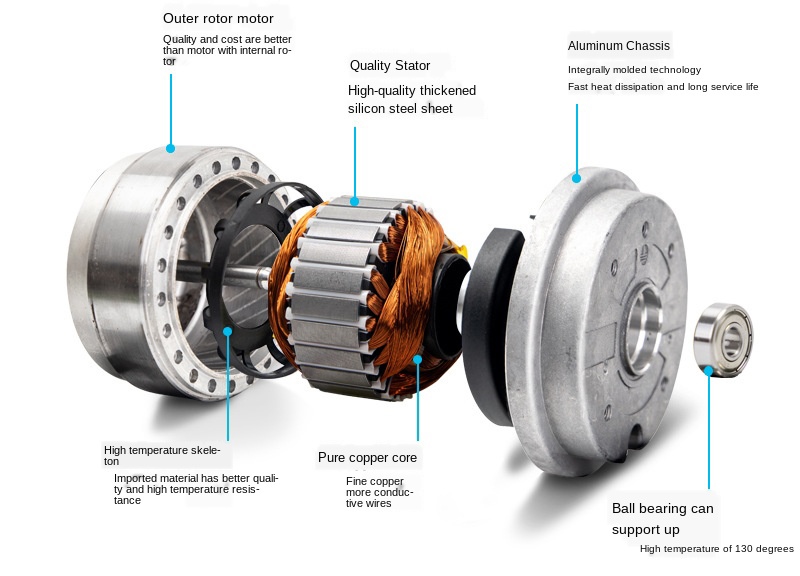

External rotor motor

High-quality outer rotor motor enables low fan loss, low noise and high efficiency

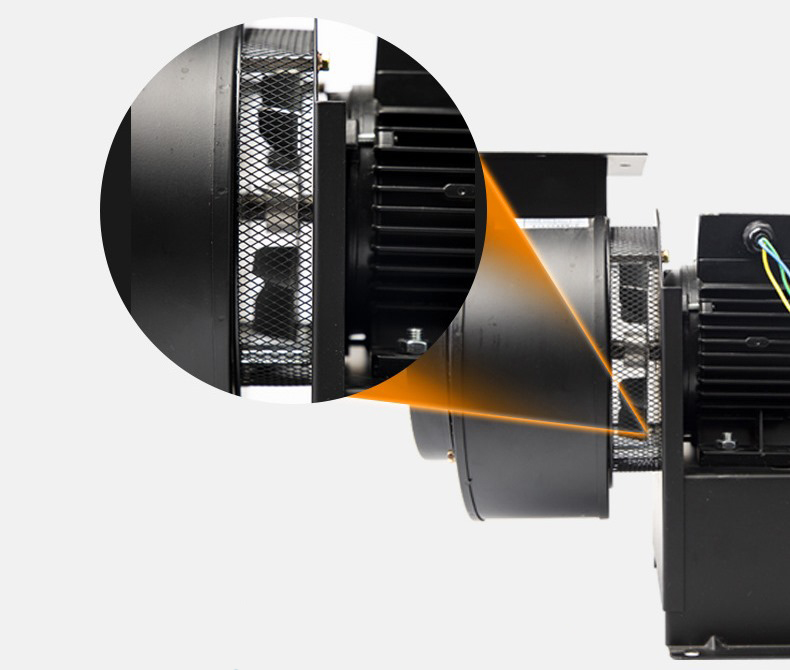

Built-in motor cooling fan

The built-in cooling isolation fan can effectively protect the motor, speed up the heat dissipation, and improve the temperature tolerance.

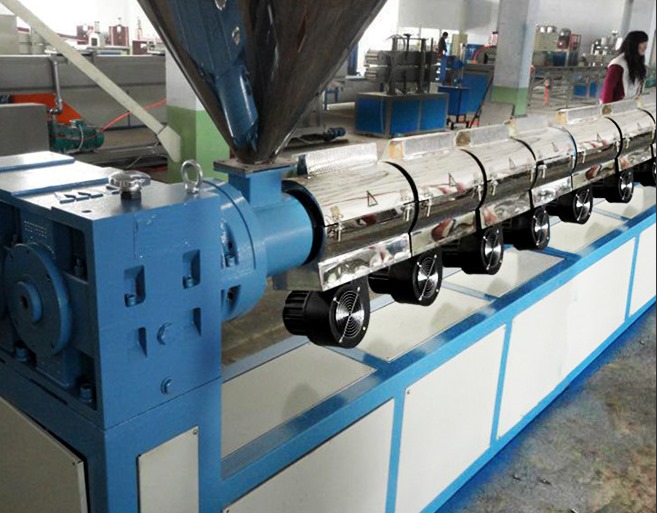

Usage scenarios

CY high temperature centrifugal fan is suitable for a variety of equipment and occasions

Technical parameter

Model	Voltage (VAC)	Power (W)	Speed (RPM)	Air flow (M3/H)	static pressure (pa)	Noise (dBA)	Weight (kg)
CY076	220	25	2800	96	127	43	2
CY100	220	45	2850	132	177	45	2.3
CY120	220	120	2850	408	384	51	4.3
CY125	220/380	200	2850	570	451	51	6
CY127	220	50	2850	198	299	45	3.5
CY150	220	370	2850	750	568	70	12
CY180	220/380	750	2850	1080	941	88	18
CY200	380	1500	2800	2229	1421	88	22

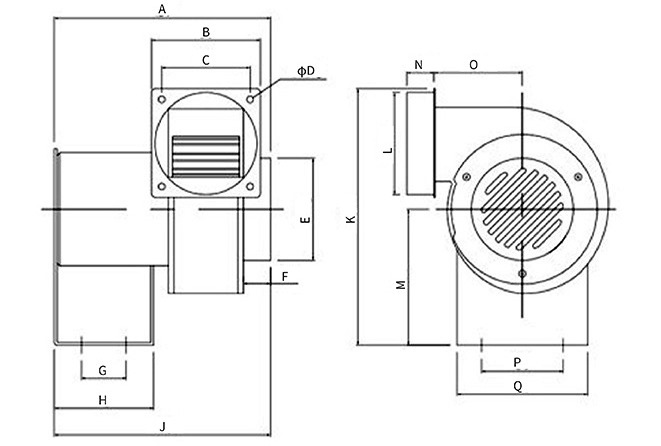

Model	Power (W)	A	B	C	Φ D	ΦE	F	G	H	J	K	ΦL	M	N	O	P	Q
CY076	25	159	80	65	4-Φ8	Φ75	20	33	73	170	185	Φ75	100	20	65	60	86
CY100	45	154	80	65	–	Φ100	15	33	73	170	185	Φ75	100	15	80	60	86
CY120	120	267	110	92	4-Φ8	Φ100	30	100	130	–	255	Φ100	130	–	95	100	135
CY125	200	280	130	110	4-Φ8	Φ125	20	105	–	–	287	Φ125	145	20	105	105	–
CY127	50	159	80	65	–	–	15	33	73	175	220	Φ75	100	15	85	60	86

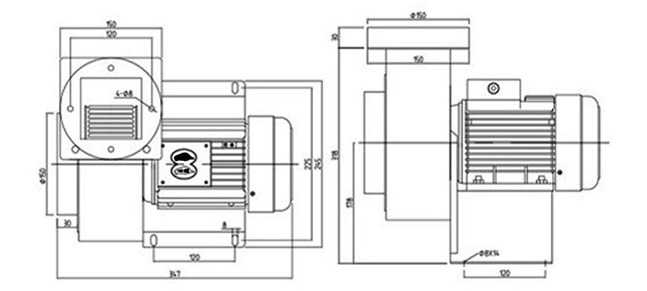

CY150 :

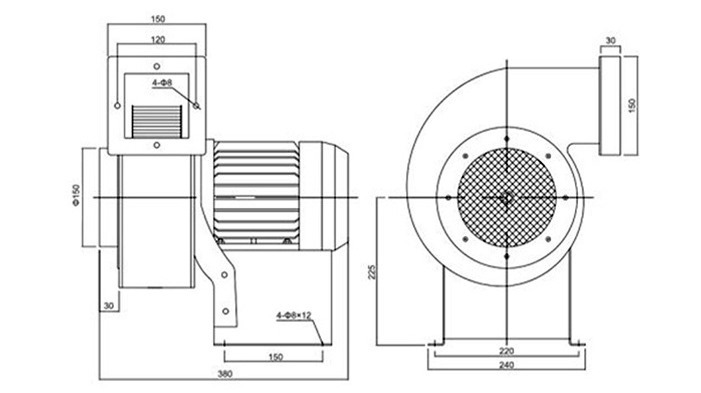

CY180:

CY200:
