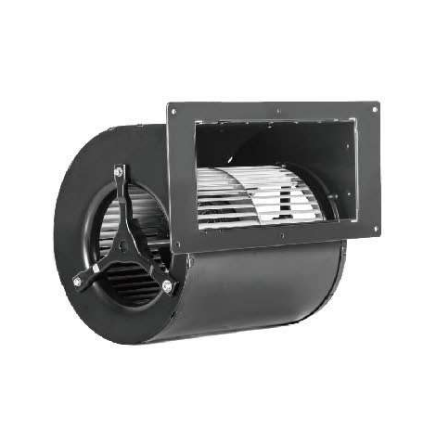

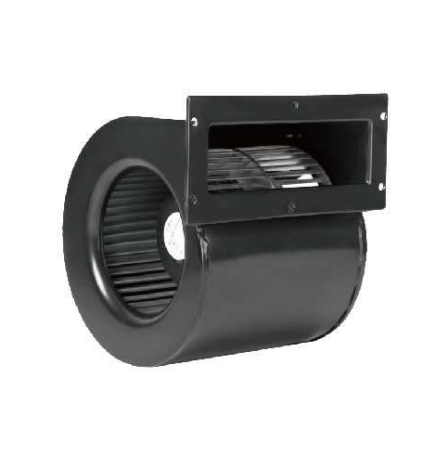

EC 133 AC Forward Leaning Double Inlet Centrifugal Fan
Power：60W-118W
Air volume：
Rotating speed：1333r/min-1446r/min
Please click the inquiry button below to contact us
Description
| Model | Voltage (V) |
Frequency (Hz) |
Capacitor (μF/450V) |
Curve (No.) |
Power (W) |
RPM (r/min) |
Current (A) |
Pressure (Pa) |
Temperature (ºC) |
Noise dB/(A) |
N.W. (KG) |
| YDWF68L35P4-GD133*190 | 1-230 | 50 | 3 | A | 90 | 1333 | 0.41 | 0 | -30- +60 | 61 | 3.8 |
| 1-230 | 60 | 3 | B | 118 | 1446 | 0.54 | 0 | -30- +60 | 63 | 3.8 |
