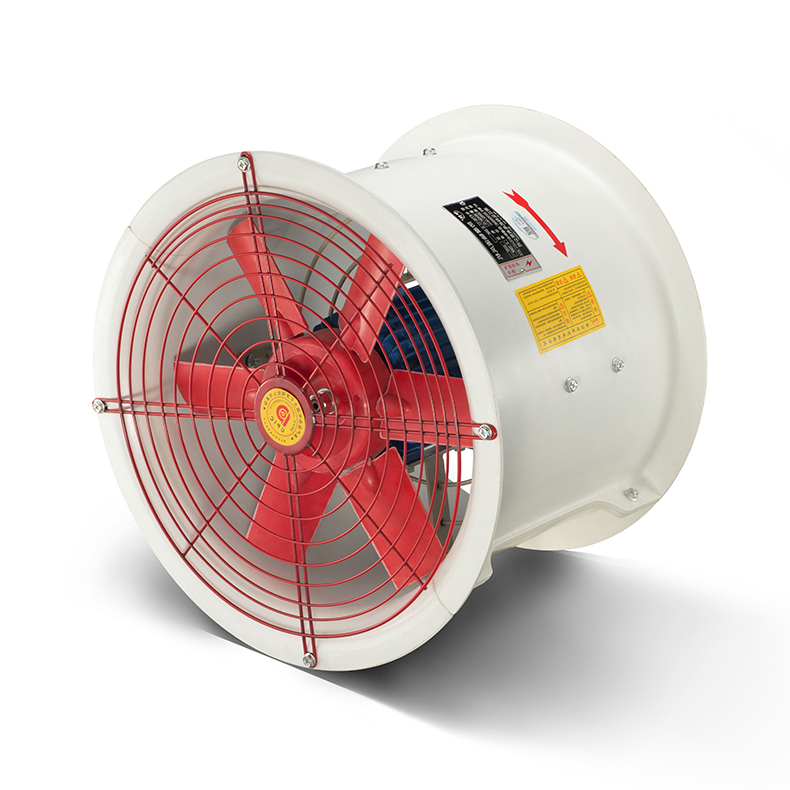

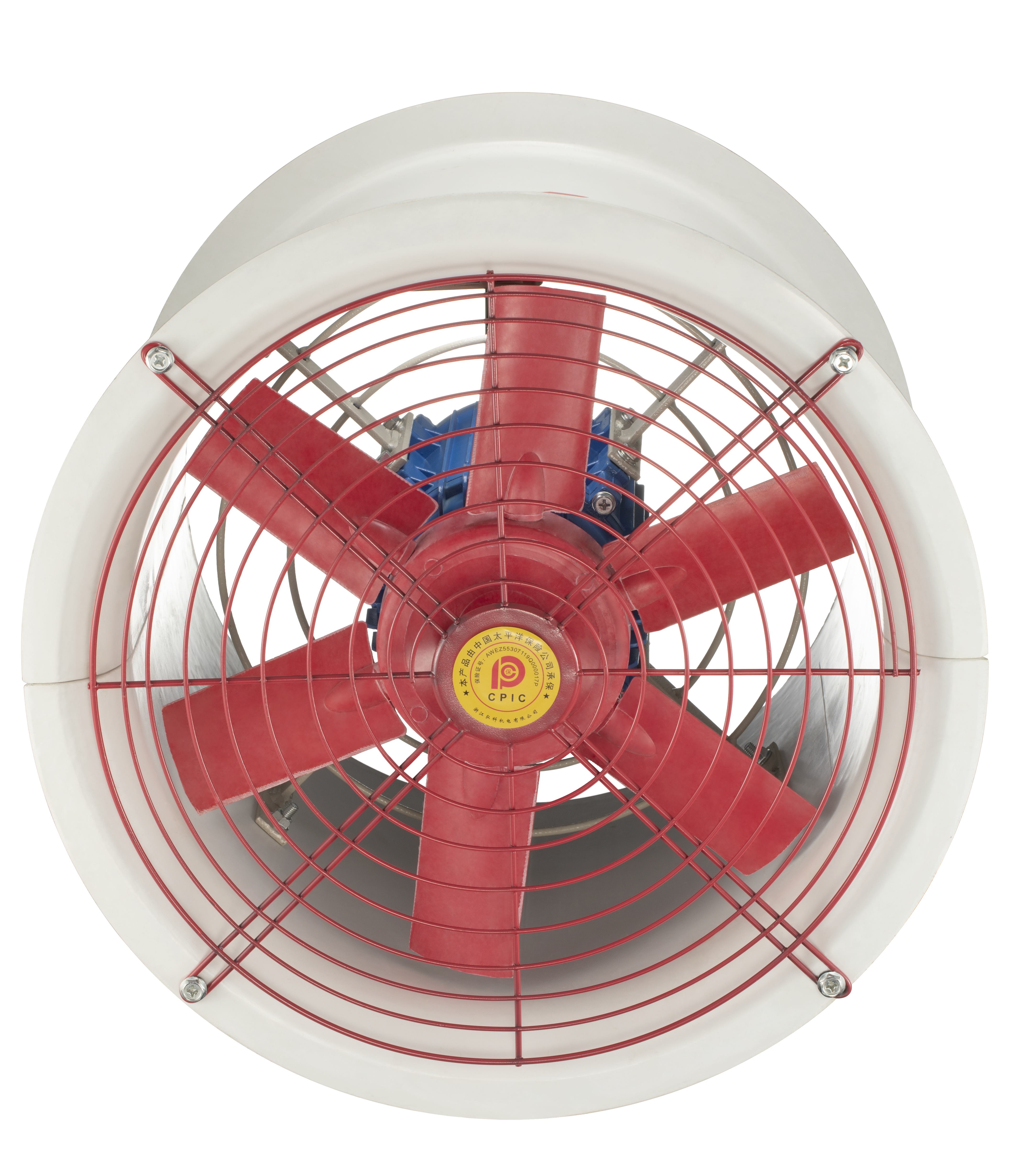

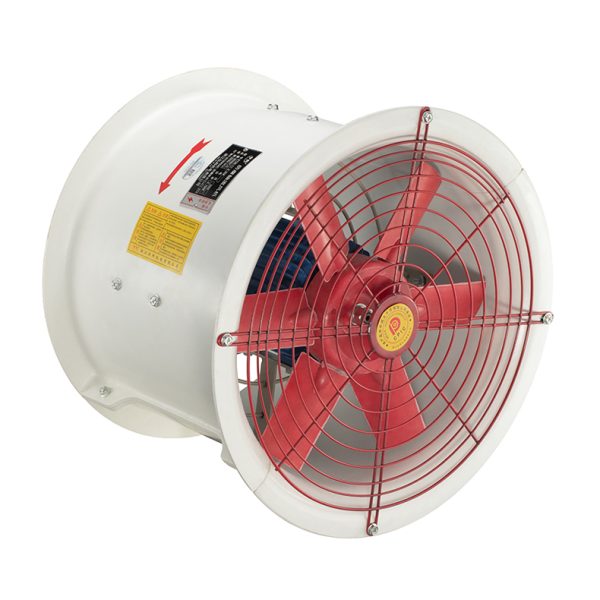

FBT35-11 anti corrosion fan

Description

Specification:



The FBT35-11 series explosion-proof and anti-corrosion fan is a derivative product of BT35-11 series, which can be used for conveying corrosive gases for its anticorrosion function.  Its product performance specifications are the same as that of BT35-11 series.

Explosion-proof motor, anti-corrosion casing and fan blade

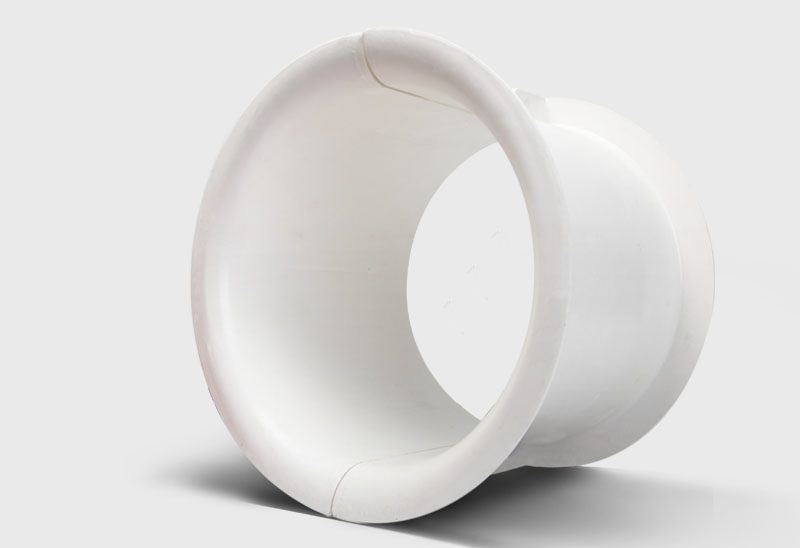

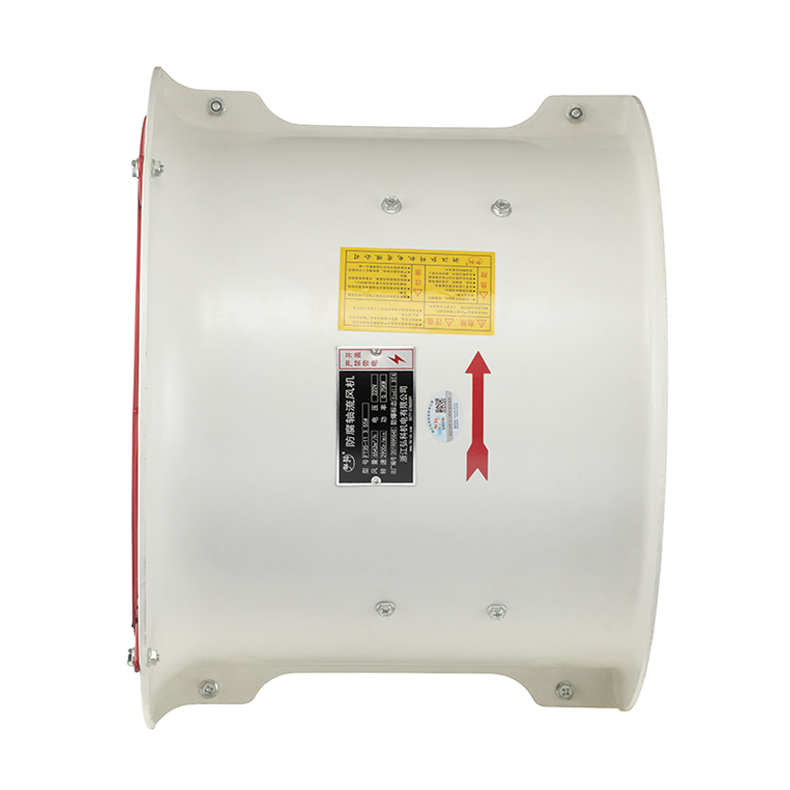

FRP anticorrosive shell

Surface is smooth and flat and spraying paint treatment with high temperature

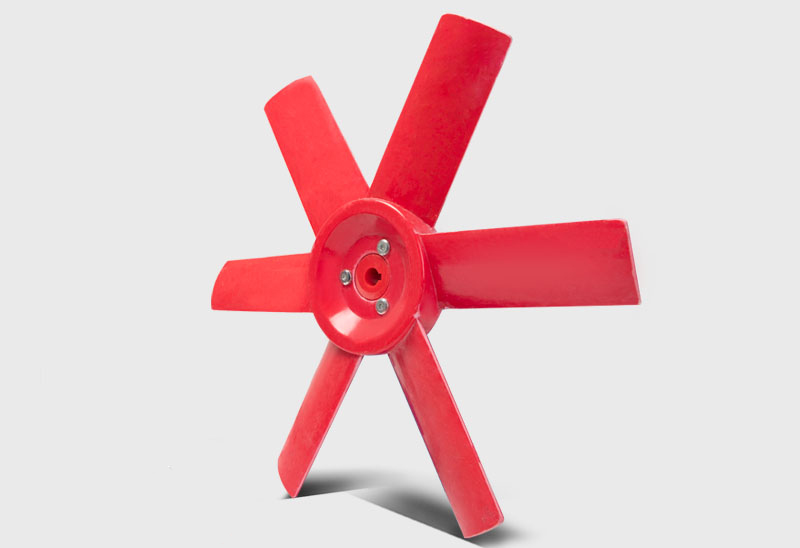

FRP anticorrosive fan blade

Fan blades run smoothly with large air volume, low noise, energy saving and environmental protection

Product Details

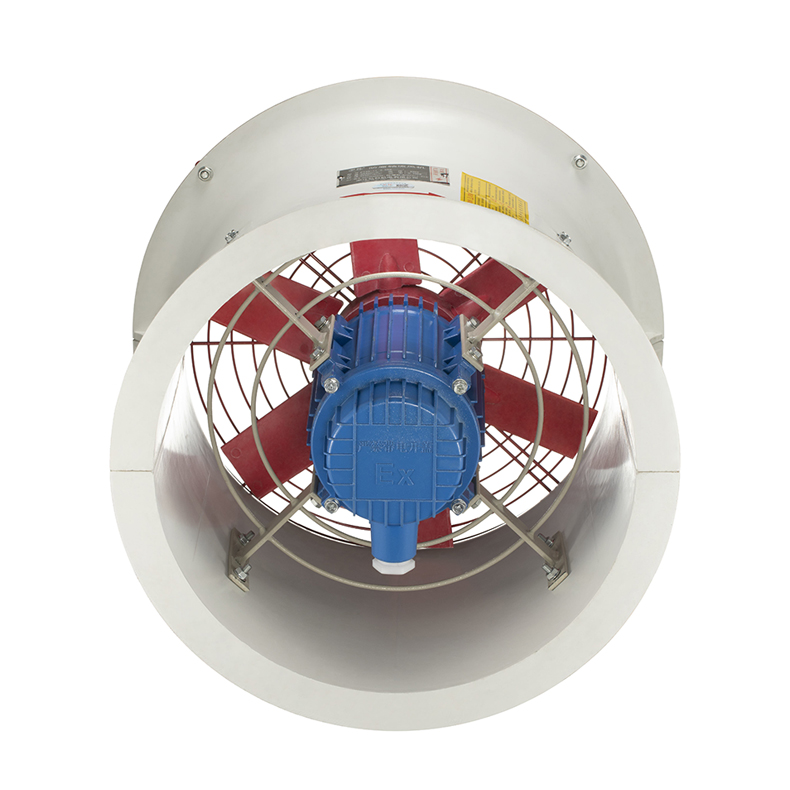

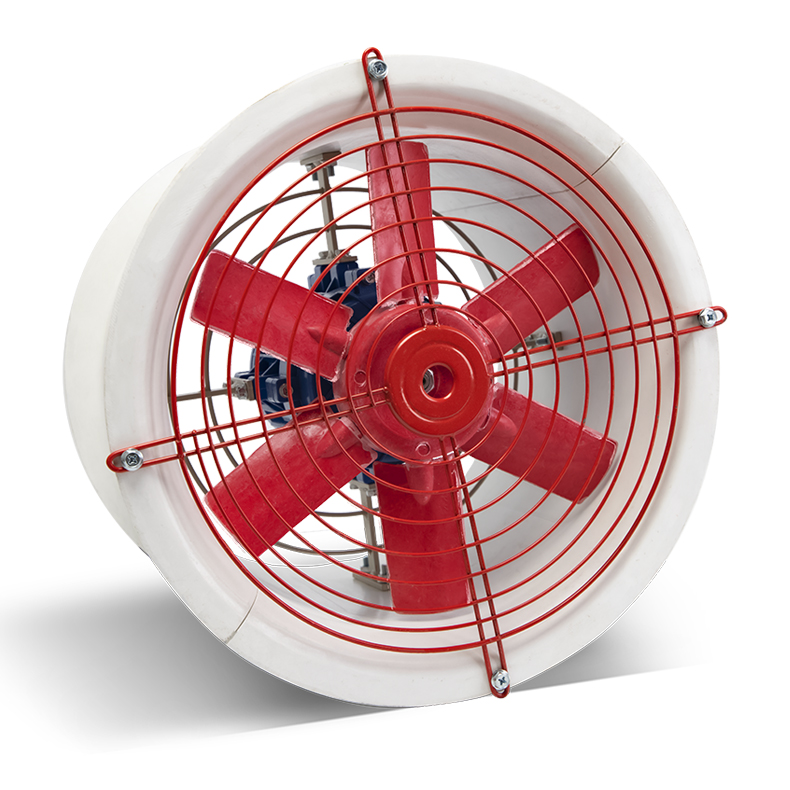

9mm safety net cover, pure copper core wire, cast aluminum explosion-proof motor

Technique parameters:

Model	Speed(RPM)	Blade angle(°)	Flow(m3/h)	Pressure(Pa)	Power(KW)
2.8	2900	20	2187	172	0.18
		25	2886	177	0.18
	1450	20	1086	44	0.09
		25	1346	45	0.09
3.15	2900	20	3074	218	0.25
		25	3810	224	0.37
	1450	20	1537	54	0.04
		25	1905	56	0.04
3.55	2900	20	4426	277	0.55
		25	5484	284	0.55
	1450	20	2208	62	0.06
		25	2737	69	0.09
4	2900	20	5316	352	1.1
		25	7826	361	1.1
	1450	20	3163	88	0.12
		25	3922	90	0.12
4.5	1450	20	4504	112	0.18
		25	5881	115	0.25
5	1450	20	6178	138	0.37
		25	7655	141	0.37
	960	20	4219	60	0.37
		25	5117	62	0.37
5.6	1450	20	8667	172	0.37
		25	10739	177	0.55
	960	20	5730	75	0.75
		25	7101	77	0.37
6.3	1450	20	12345	224	1.1
		25	15297	241	1.5
	960	20	8173	96	0.37
		25	10128	98	0.37

Specification model	Bell mouth diameter A	Height H	Cylinder diameter Φ	Right angle margin B
FBT35-11 2.8#	356	260	281-283	345-347
FBT35-11 3.15#	400	284	311-317	380-382
FBT35-11 3.55#	452	328	355-359	420-423
FBT35-11 4#	501	351	400-405	475-482
FBT35-11 4.5#	581	316	453-450	523-526
FBT35-11 5#	631	366	500-505	585-589
FBT35-11 5.6#	708	405	562	645-648
FBT35-11 6.3#	800	476	631-635	715-720
