FLJ small centrifugal blower
The FLJ series fan is composed of a single-phase asynchronous motor or a three-phase asynchronous motor, a volute, an impeller， and mounting brackets, which is characterized by compact structure, lightweight, small size, high efficiency, large airflow, and high air pressure. At the same time, customers can change the assembling ways of brackets to achieve installation in various positions. It is extensively used for pipeline dust removal, exhaust heat removal, advertising air flushing model, environmental protection, and pollution control, apart from for forced ventilation of various control facilities and electronic devices on the ground.
Power：60W-500W
Air volume：168m³/h-900m³/h
Rotating speed：2500r/min-2800r/min
Please click the inquiry button below to contact us
Description
Specification:
FLJ power frequency centrifugal fan
Carbon steel shell copper core motor

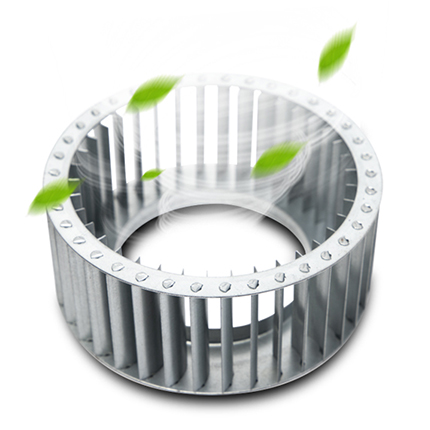

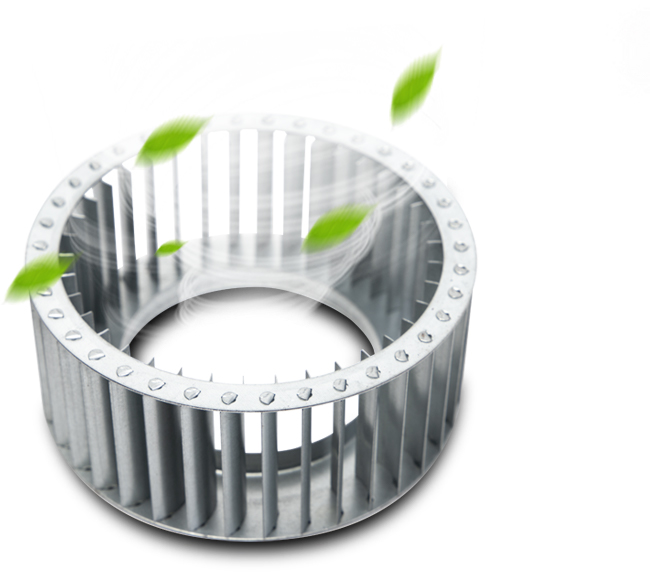

Galvanized sheet multi-wing blade
Not easy to rust, wear-resistant and anti-oxidation, long service life, light and beautiful

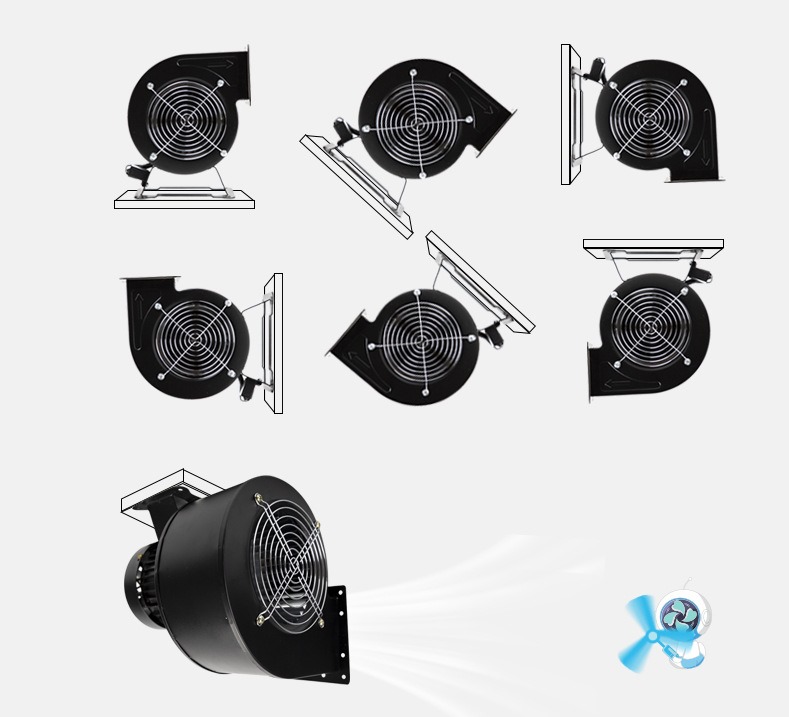

Multi-angle installation
360-degree free installation, can be installed in the forward direction of suspension
Technique parameters:
| Model | Voltage (V) |
Current (AMP) |
Frequency (Hz) |
Power (W) |
Speed (RPM) |
Flow (m3/h) |
Pressure (Pa) |
Niose (dB-A) |
Capacitance (UF) |
Line length (M) |
distance | Remark |
| 130FLJ0 | 220 | 0.27 | 50 | 60 | 2600 | 168 | 200 | <=60 | 1.8 | 1.14 | 2 | |
| 380 | 0.16 | – | 0.45 | |||||||||
| 130FLJ0-1 | 220 | 0.27 | 50 | 60 | 2600 | 168 | 280 | <=60 | 1.8 | 0.45 | 2 | Unable to flange |
| 380 | 0.16 | – | 0.45 | |||||||||
| 130FLJ1 | 220 | 0.39 | 50 | 85 | 2500 | 216 | 280 | <=70 | 2.2 | 1 | 3 | |
| 380 | 0.25 | – | 0.25 | |||||||||
| 130FLJ1-1 | 220 | 0.39 | 50 | 85 | 2500 | 216 | 280 | <=70 | 2.2 | 1 | 3 | Unable to flange |
| 380 | 0.25 | – | 0.25 | |||||||||
| 130FLJ5 | 220 | 0.55 | 50 | 120 | 2600 | 330 | 350 | <=72 | 3 | 1 | 4 | |
| 380 | 0.25 | – | 0.24 | |||||||||
| 150FLJ17 | 220 | 1.12 | 50 | 240 | 2650 | 540 | 420 | <=72 | 5 | 1 | 7 | |
| 150FLJ 15 | 380 | 0.7 | – | 0.25 | ||||||||
| 150FLJ 5 | 220 | 1.52 | 50 | 330 | 2800 | 660 | 450 | <=76 | 5 | 0.25 | 10 | |
| 150FLJ 6 | 380 | 0.83 | – | 0.25 | ||||||||
| 170FLJ7 | 220 | 2.28 | 50 | 500 | 2650 | 900 | 530 | <=76 | 10 | 1 | 12 | |
| 170FLJ5 | 380 | 1.35 | – | 0.15 |

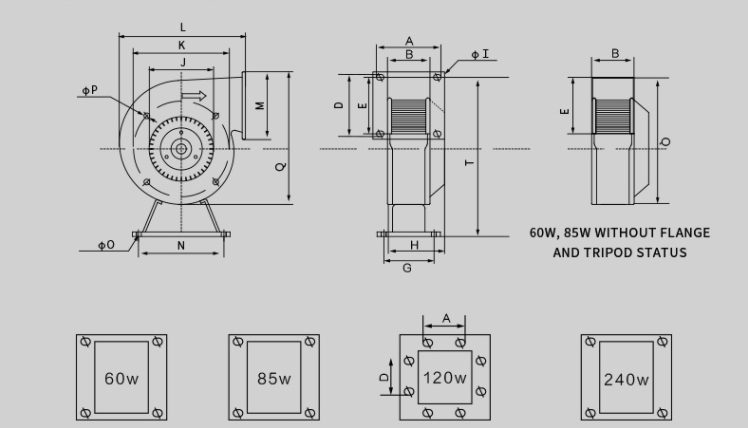

60, 85, 120, 240W size and screw hole installation diagram
| Model | Power(W) | A | B | D | E | G | H | ΦI | J | K | L | M | N | ΦO | ΦP | Q | T |
| 130FLJ0 | 60 | 78 | 45 | 70 | 65 | 80 | 70 | 4-Φ8 | 110 | 130 | 180 | 85 | 130 | 4-Φ8 | 4-Φ3 | 180 | 210 |
| 130FLJ1 | 85 | 90 | 60 | 70 | 65 | 85 | 80 | 4-Φ6 | 110 | 130 | 180 | 90 | 130 | 4-Φ6 | 4-Φ3 | 180 | 210 |
| 130FLJ5 | 120 | 55 | 85 | 48 | 65 | 80 | 105 | 4-Φ6 | 100 | 130 | 180 | 110 | 130 | 4-Φ6 | 4-Φ3 | 180 | 200 |
| 150FLJ15 | 240 | 95 | 70 | 95 | 80 | 80 | 100 | 4-Φ8 | 115 | 150 | 205 | 115*115 | 130 | 4-Φ6 | 4-Φ3 | 210 | 240 |
| 150FLJ17 | 240 | 95 | 70 | 95 | 80 | 80 | 100 | 4-Φ8 | 115 | 150 | 205 | 115*115 | 130 | 4-Φ6 | 4-Φ3 | 210 | 240 |

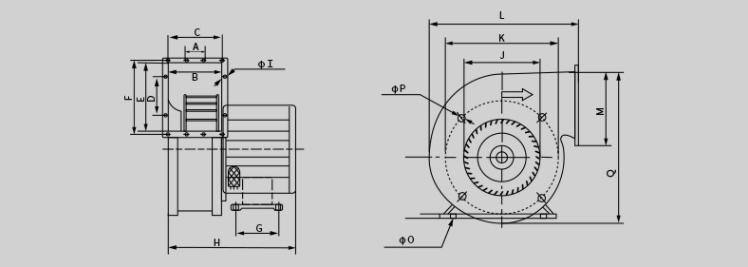

330, 500W installation diagram
| Model | Power(W) | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q |
| 150FLJ5/6 | 330 | 50 | 90 | 102 | 50 | 90 | 102 | 80 | 230 | 12-Φ4 | 120 | 150 | 200 | 118*118 | 130 | 4-Φ6 | 4-Φ3 | 200 |
| 170FLJ5/7 | 500 | 20 | 82 | 100 | 50 | 65 | 100 | 80 | 265 | 12-Φ6 | 120 | 170 | 240 | 113*113 | 160 | 4-Φ5 | 4-Φ3 | 275 |
