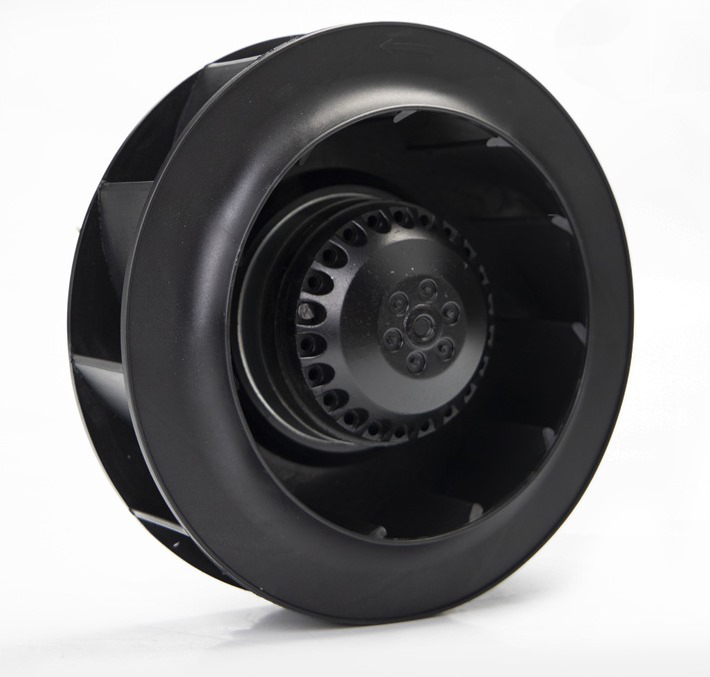

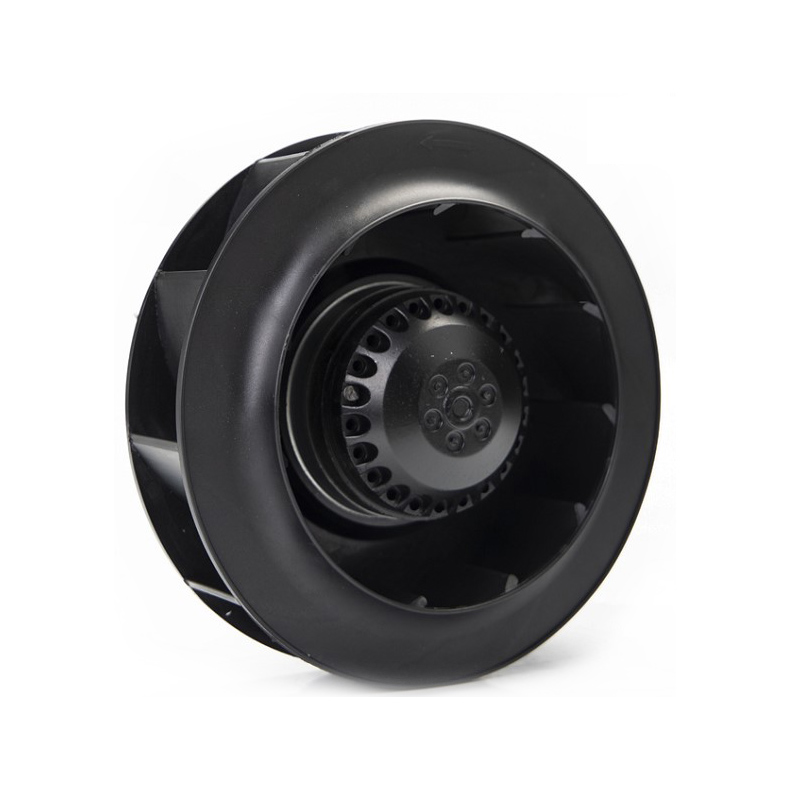

FLW Backward inclined centrifugal fan

描述

Specification:

VORTEX CENTRIFUGAL FAN

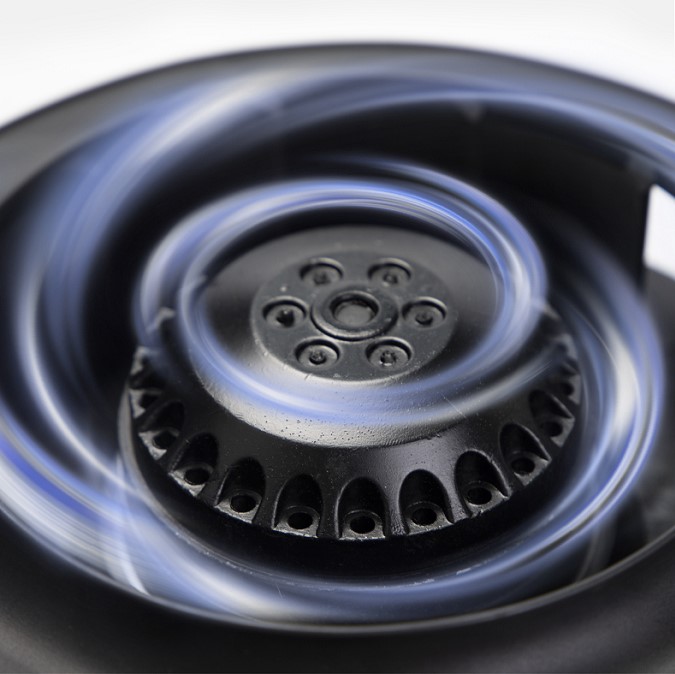

Low energy consumption and strong wind

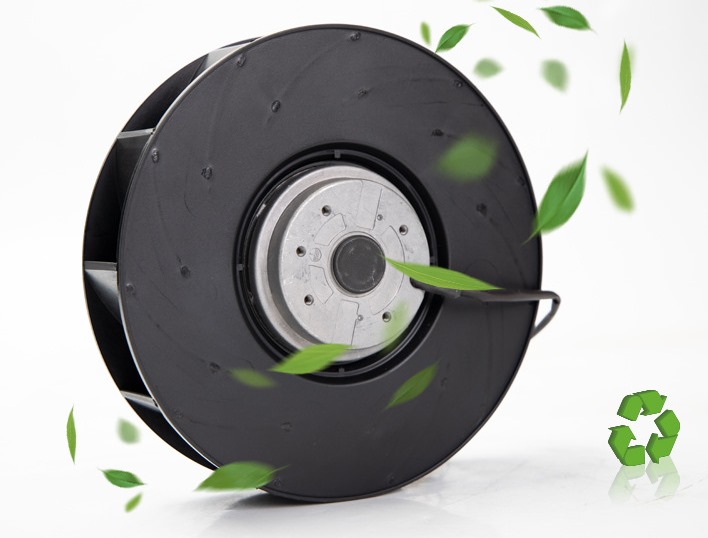

Environmental protection shell

Low energy consumption, environmentally friendly materials, power up to 590W

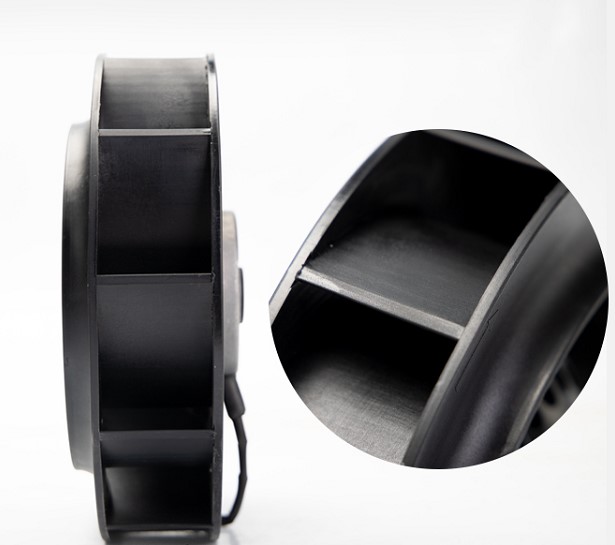

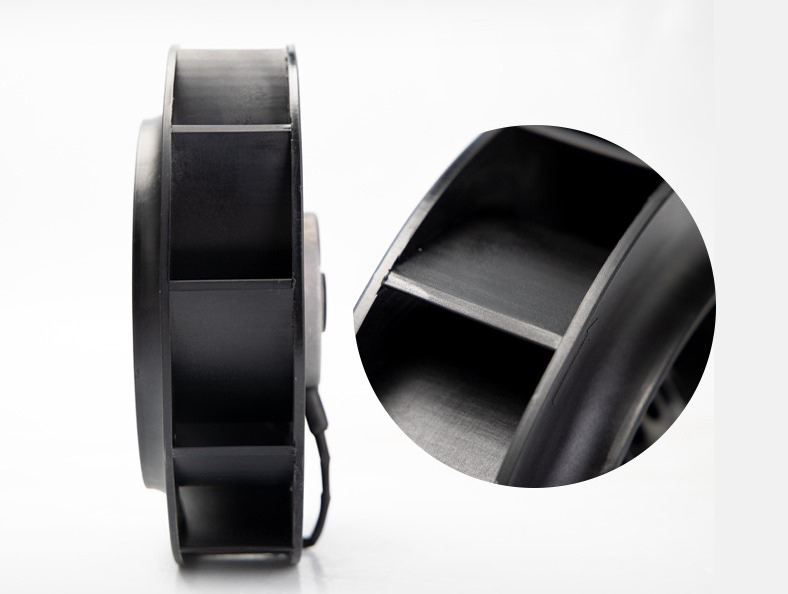

PA66 engineering plastic impeller

The impeller is made of professional engineering plastics has high hardness, high rigidity,

 not easy to deform, wear-resistant, good insulation, and can withstand up to 150°C.

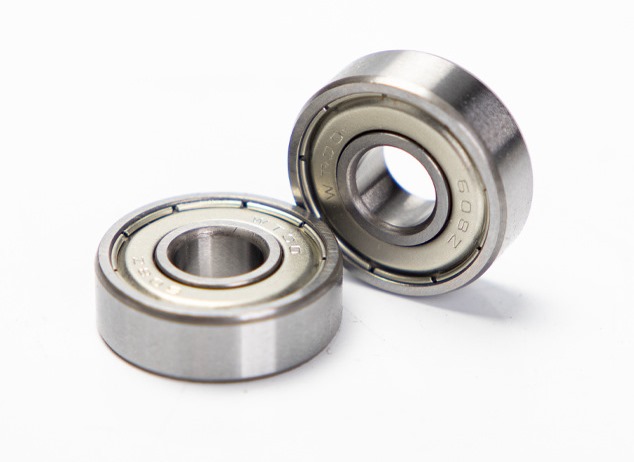

Quality double ball bearing

The centrifugal force is greater, the rolling ball is more smooth,

the bearing friction is small, the heat is low, and the heat dissipation is fast

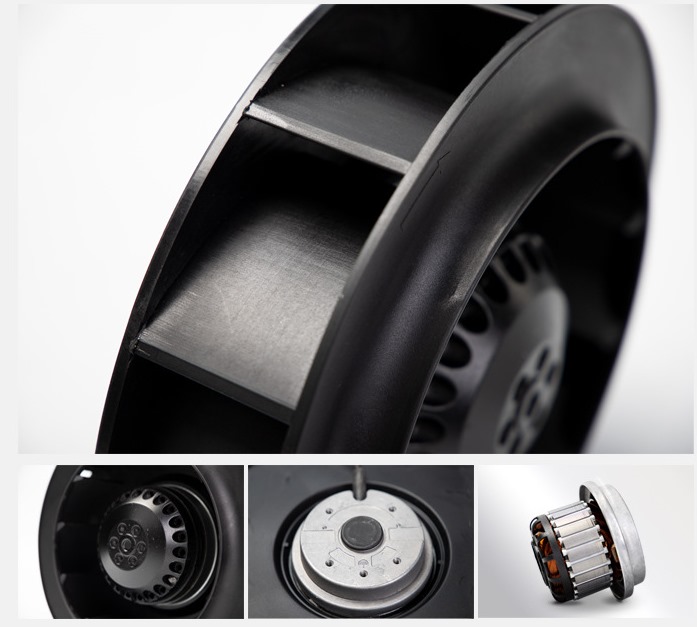

Product details

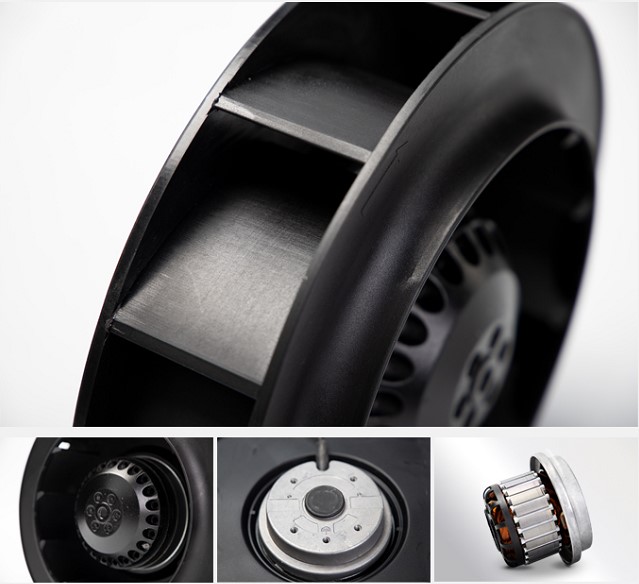

Outer rotor motor, pure copper movement

Technique parameters

Model	Rated Voltage (V)	Frequency (Hz)	Power (w)	Current (AMP)	Rotating speed (r/min)	Electric capacity (UF)	Air Volume (m3/h)	Pressure (Pa)	Weight (kg)
190FLW2-2W	220V	50	85	0.38	2700	2.2	552	300	1.8
190FLW3-2W	380V	50	85	0.22	2700	–	552	300	1.8
220FLW2-2W	220V	50	90	0.4	2500	2.2	720	380	2.1
220FLW3-2W	380V	50	90	0.2	2500	–	720	380	2.1
225FLW2-2W	220V	50	130	0.6	2500	2.7	960	400	2.5
225FLW3-2W	380V	50	130	0.35	2500	–	960	400	2.5
250FLW2-2W	220V	50	130	0.6	2500	27	1200	500	2.5
250FLW3-2W	380V	50	130	0.35	2500	–	1200	500	2.5
250FLW2-4W	220V	50	48	0.25	1400	1.4	720	130	3.0
250FLW3-4W	380V	50	48	0.12	1400	–	720	130	3.0
280FLW2-2W	220V	50	250	1.4	2500	7	1920	700	4.0
280FLW3-2W	380V	50	230	0.65	2500	–	1920	700	4.0
280FLW2-4W	220V	50	80	0.4	1400	4	960	200	3.0
280FLW3-4W	380V	50	70	0,20	1400	–	960	200	3.0
310FLW2-4W	220V	50	130	0.6	1400	4	1800	250	3.8
310FLW3-4W	380V	50	130	0.3	1400	–	1800	250	3.8
355FLW2-4W	220V	50	200	1	1400	5	2100	390	4.7
355FLW3-4W	380V	50	200	0.55	1400	–	2100	390	4.7
400FLW2-4W	220V	50	300	1.6	1360	6	2520	490	6.5
400FLW3-4W	380V	50	260	0.8	1360	–	2520	490	6.5
450FLW2-4W	220V	50	550	2.6	1300	12	4200	490	10
450FLW3-4W	380V	50	550	1.3	1300	–	4200	490	10

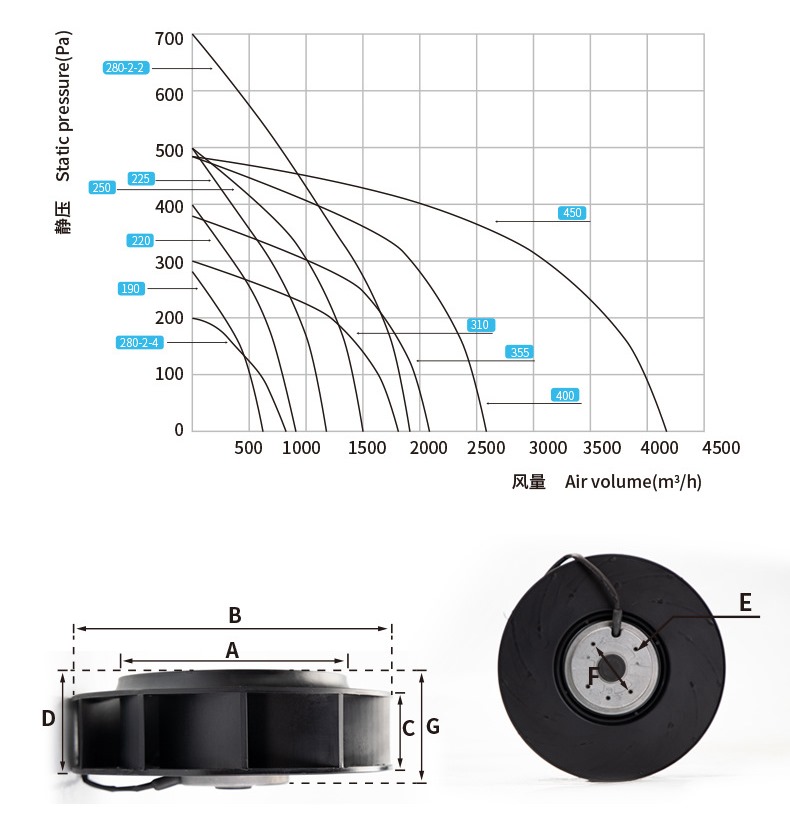

Model	A	B	C	D	E	F	G
190FLW	131	190	45	62	4-M4	58	69
22OFLW	160	220	44	64	4-M4	58	70
225FLW	153	225	63	89	4-M4	58	99
250FLW	174	250	56	88	4-M4	58	102
280FLW	190	280	50	82	4-M4	58	105
310FLW	223	310	108	140	4-M6	90	153
355FLW	248	355	55	81	4 M6	90	163
400FLW	265	400	91	142	4 M6	115	163
450FLW	298	450	160	215	4 M6	115	250
