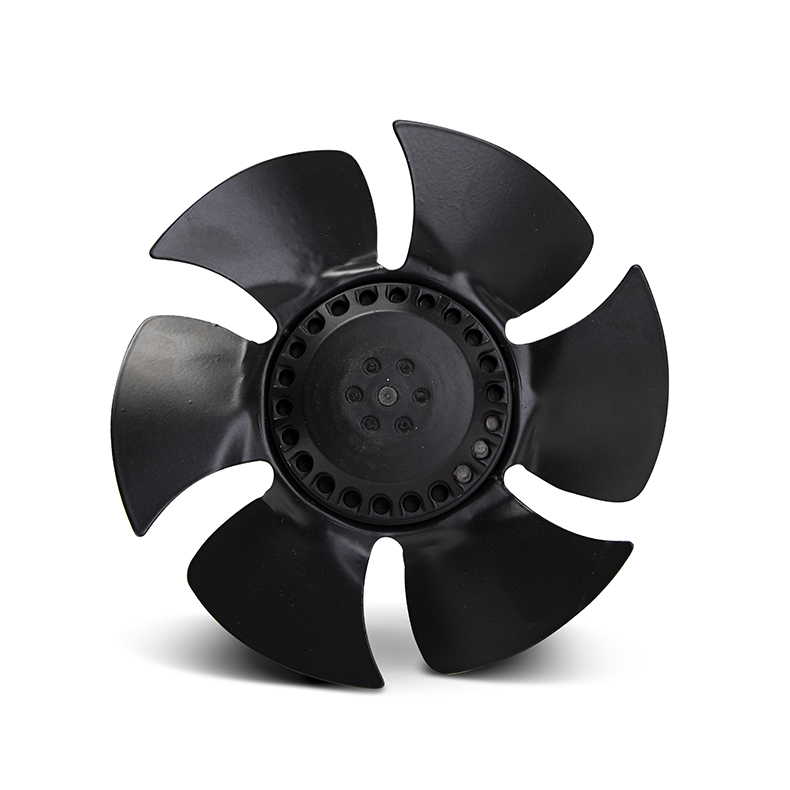

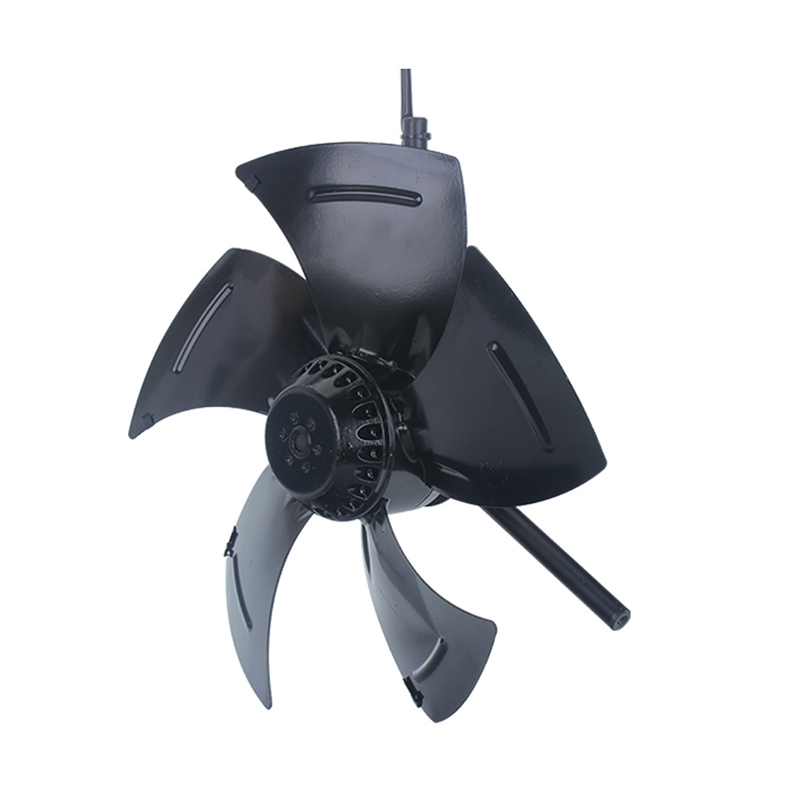

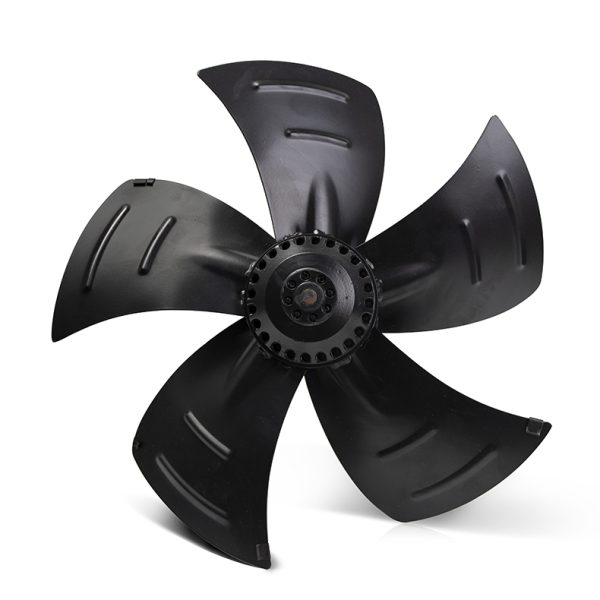

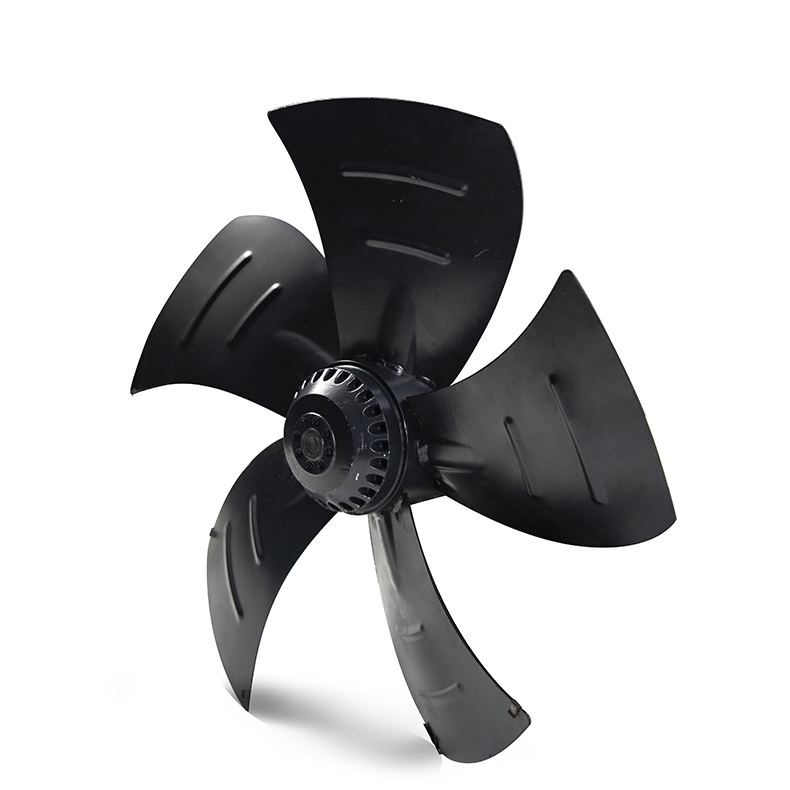

G-type variable frequency motor fan

Description

Specification:

G series of axial flow fans for variable-frequency and speed-regulating motors are composed of three parts:wind hood,motor and fan blades.the outer rotor structure motor has the fan blades fastened on the outer rotor of the motor,which has the advantages of compact structure,low noise,large air volume,and convenient installation.

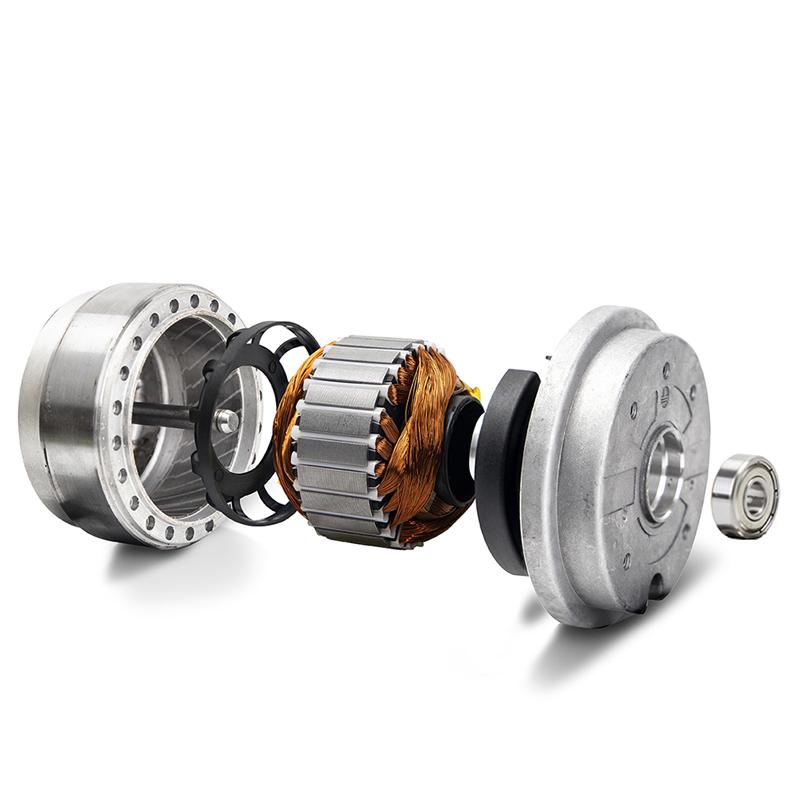

Outer rotor motor

Low loss,high efficiency,low noise



Model and it’s meaning



Technique parameters

Without shell (photoelectric motor)

Model	Motor model	Voltage(V)	Frequency(Hz)	Power(W)	Current(A)	Speed(RPM)	Flow(m3/h)	Pressure(Pa)	Niose(dB-A)	Protection level
G-63A	68-22.5	380	50	20	0.075	2800	300	40	62	54
G-71A	68-22.5	380	50	25	0.08	2800	300	50	62	54
G-80A	68-22.5	380	50	30	0.08	2800	330	60	62	54
G-90A	68-22.5	380	50	42	0.086	2800	500	80	65	54
G-100A	92-17	380	50	52	0.176	2750	660	80	67	54/55
G-112A	92-17	380	50	60	0.18	2600	900	80	67	54/55
G-132A	92-24	380	50	40	0.2	1400	780	35	69	54/55
G-160A	92-32	380	50	80	0.26	1390	1300	40	72	54/55
G-180A	92-32	380	50	80	0.26	1330	1300	55	72	54/55
G-200A	92-32	380	50	150	0.27	1230	2400	65	72	54/55
G-225A	102-48	380	50	200	0.37	1430	4200	70	74	54/55
G-250A	102-55	380	50	230	0.4	1420	4200	80	75	54/55
G-280A	1002-55	380	50	320	0.56	1360	5000	85	78	54/55
G-315A	138-48.5	380	50	370	0.78	1320	5000	110	81	54
G-355A	138-65/0.6-4	380	50	600	1.9	1350	6500	150	85	54
G-400A	1.1-4	380	50	1000	3.05	1350	7000	150	90	54
G-450A	2.2-4	380	50	2000	5.86	1380	8000	180	90	54
G-500A	3-4	380	50	3000	7.79	1380	10000	200	90	54

Model	Internal motor model	Fan blade diameter(mm)	Tripod diameter(mm)
G-71A	130FZL3-2W	130	135
G-80A	140FZL3-2W	140	154
G-90A	165FZL3-2W	165	173
G-100A	185FZL3-2W	185	193
G-112A	200FZL3-2W	200	217
G-132A	250FZL3-4W	250	256
G-160A	300FZL3-4W	300	322
G-180A	330FZL3-4W	330	352
G-200A	380FZL3-4W	380	394
G-225A	4000FZL3-4W	400	440
G-250A	450FZL3-4W	450	480
G-280A	5000FZL3-4W	500	545
G-315A	550FZL3-4W	550	614
G-355A	600FZL3-4W	660	694
