Dust Suction Smoke Purifier Dust Suction Fan

Description

Specification:

The welding fume fan is applicable to the fume purification treatment of various welding machines such as factory, construction site, processing plant, maintenance shop, electric welding, steam shielded welding, argon arc welding and so on.

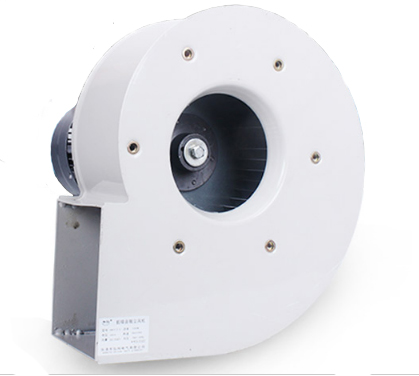

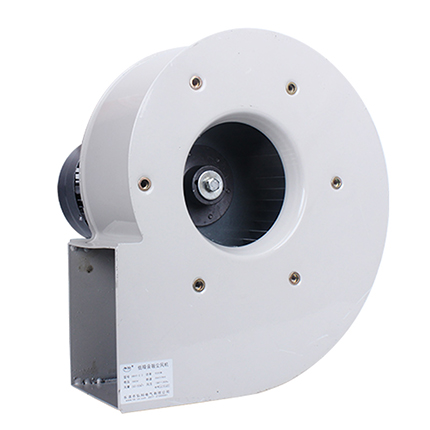

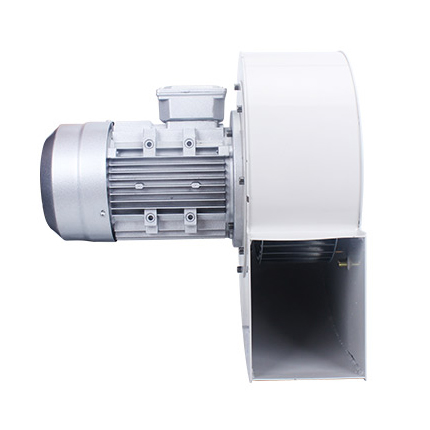

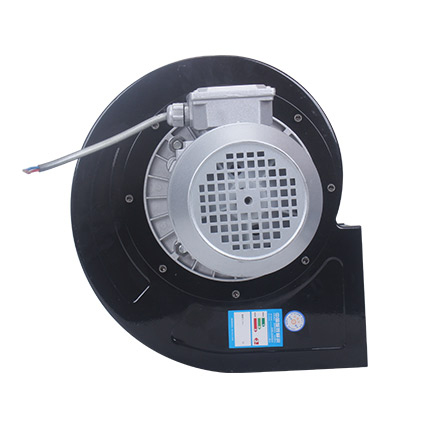

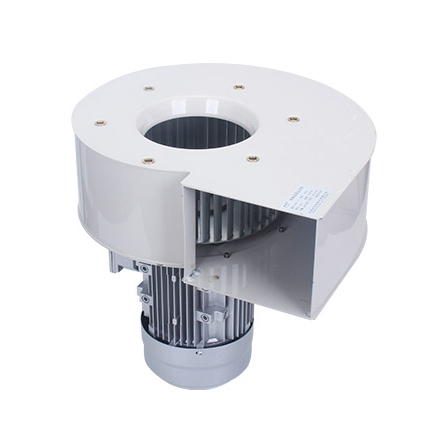

HKHY welding fume purifier fan

New products development due to environmental storm ,low noise dust suction and smoking fan

Strong wind and oil fume dissipation

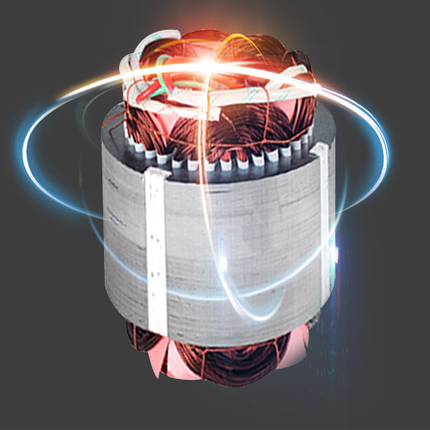

Strong hardness movement shaft,pure copper movement is more efficient,stable and safe!

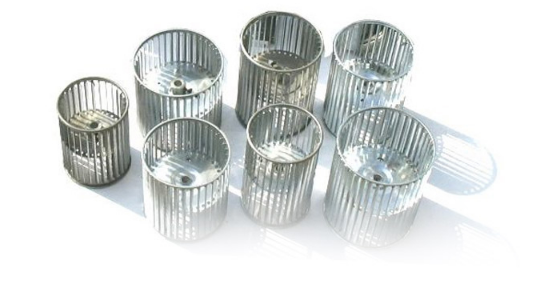

Multi wing impeller

It is made of galvanized sheet,which is not easy to deform,wear-resistant and antioxidant ,and has long service life

Technique parameters:

Motor power	Voltage (V)	Frequency (Hz)	Speed (r/min)	Flow (m3/h)	Total pressure (Pa)	Noise (≤dB)
1.1 KW	220/380	50	2800	1900-2700	1380-1240	82
1.5KW	380	50	2800	2600-3500	1580-1390	83
2.2KW	380	50	2800	4200-5000	1820-1640	84
3KW	380	50	2800	4800-5500	2050-1860	85

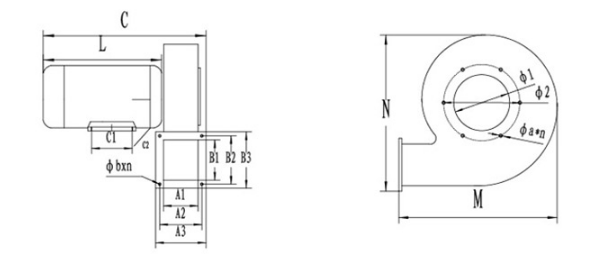

Motor power	Outlet size		Size of air inlet			Overall dimension
	A1	B1	01	02	Φa*n	C1	C2	M	N	L	C
1.1 KW	130	155	105	190	M8*6	100	125	335	387	245	395
1.5KW	130	161	105	248	M8*6	100	140	364	425	270	385
2.2KW	130	176	105	268	M8*6	125	140	385	435	296	430
3KW	130	206	125	268	M8*6	140	160	400	445	330	470
