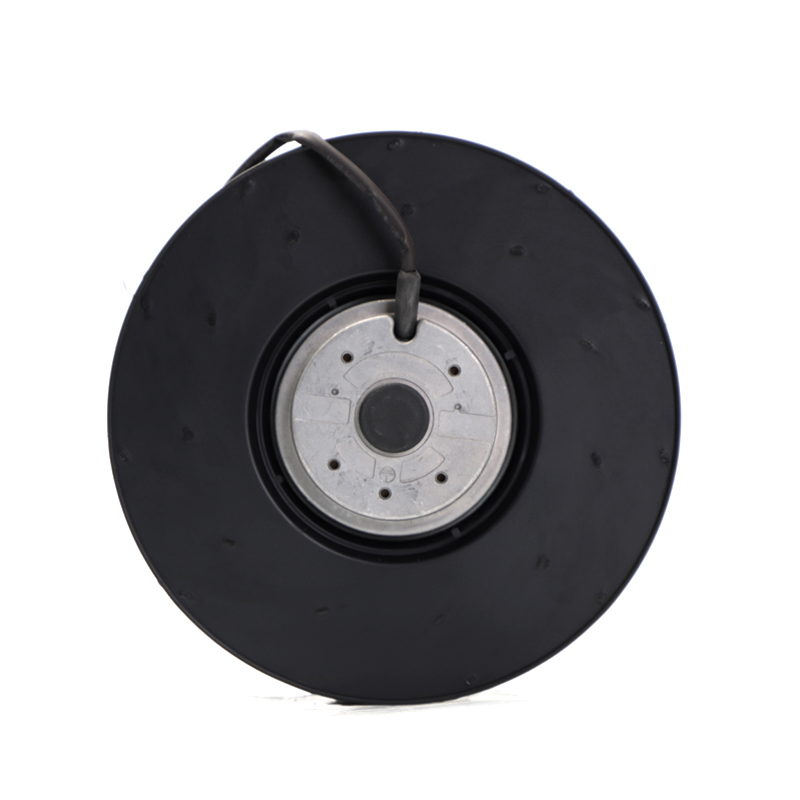

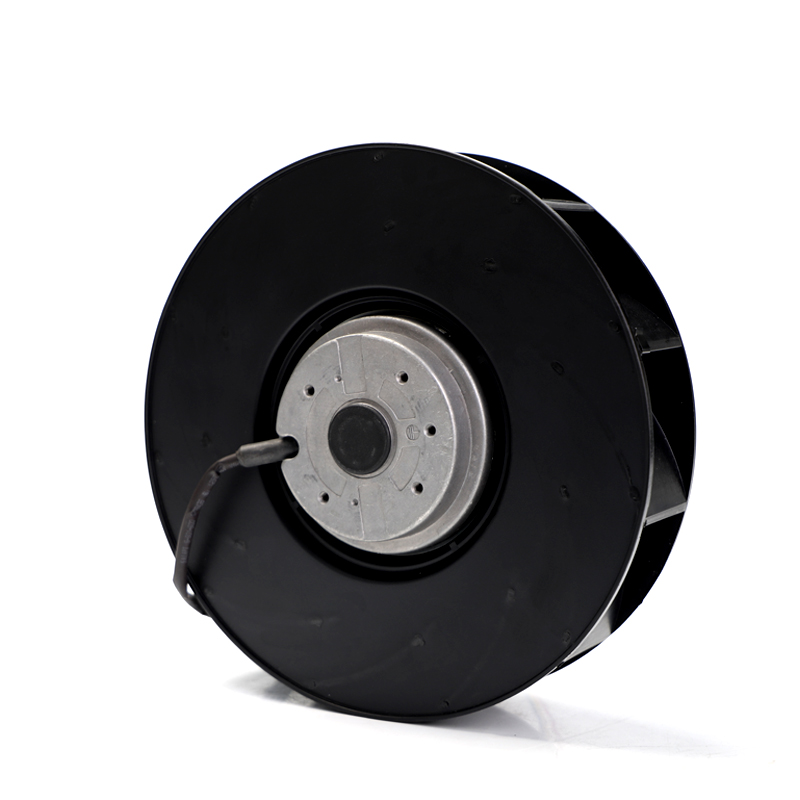

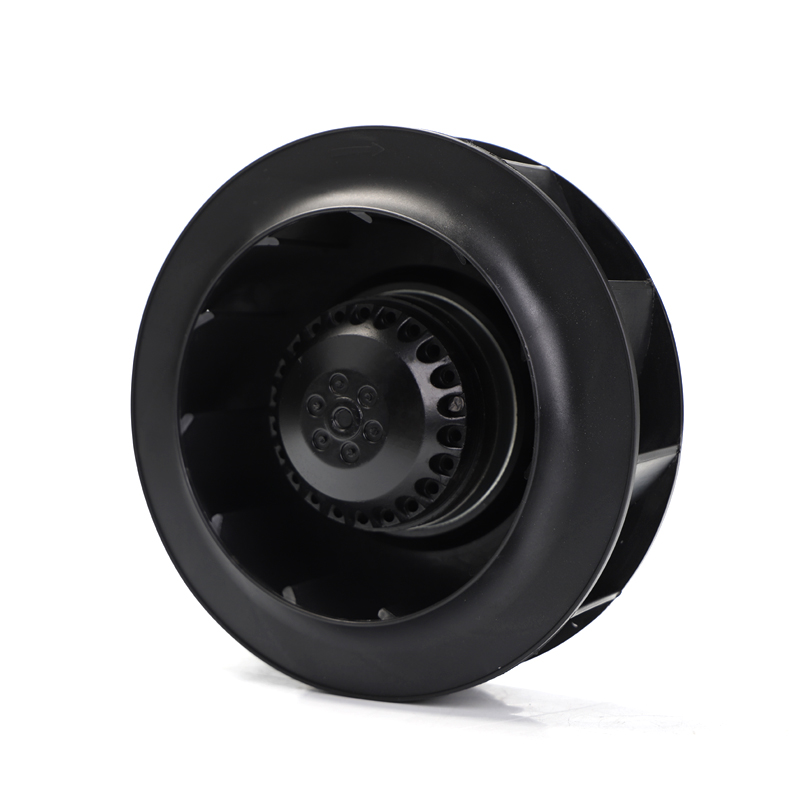

Outer rotor turbine backward inclined centrifugal fan EC 220V/380V

Description

Product Description

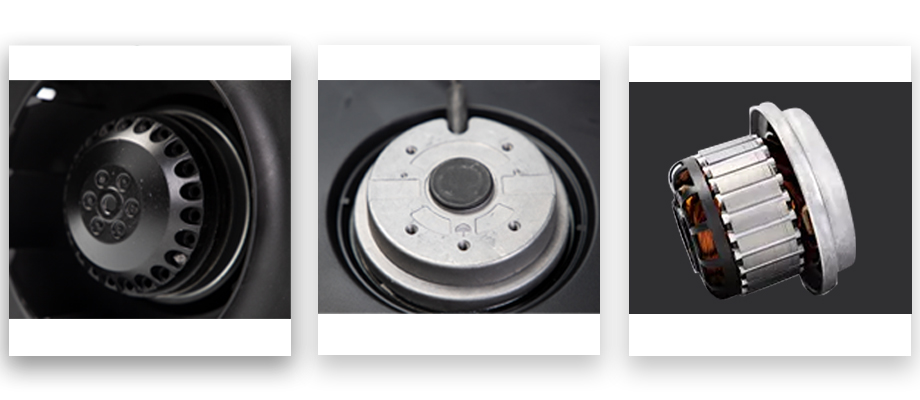

The fan is composed of an external rotor asynchronous motor, plastic/aluminum impeller, etc. The low temperature rise of the motor has the best advantage of ventilation, heat dissipation and self-cooling. Thereby extending the reliability of fan life. The fan is a backward-curved impeller, which has the characteristics of compact structure, large air volume, high static pressure, low vibration, low noise, and convenient installation.

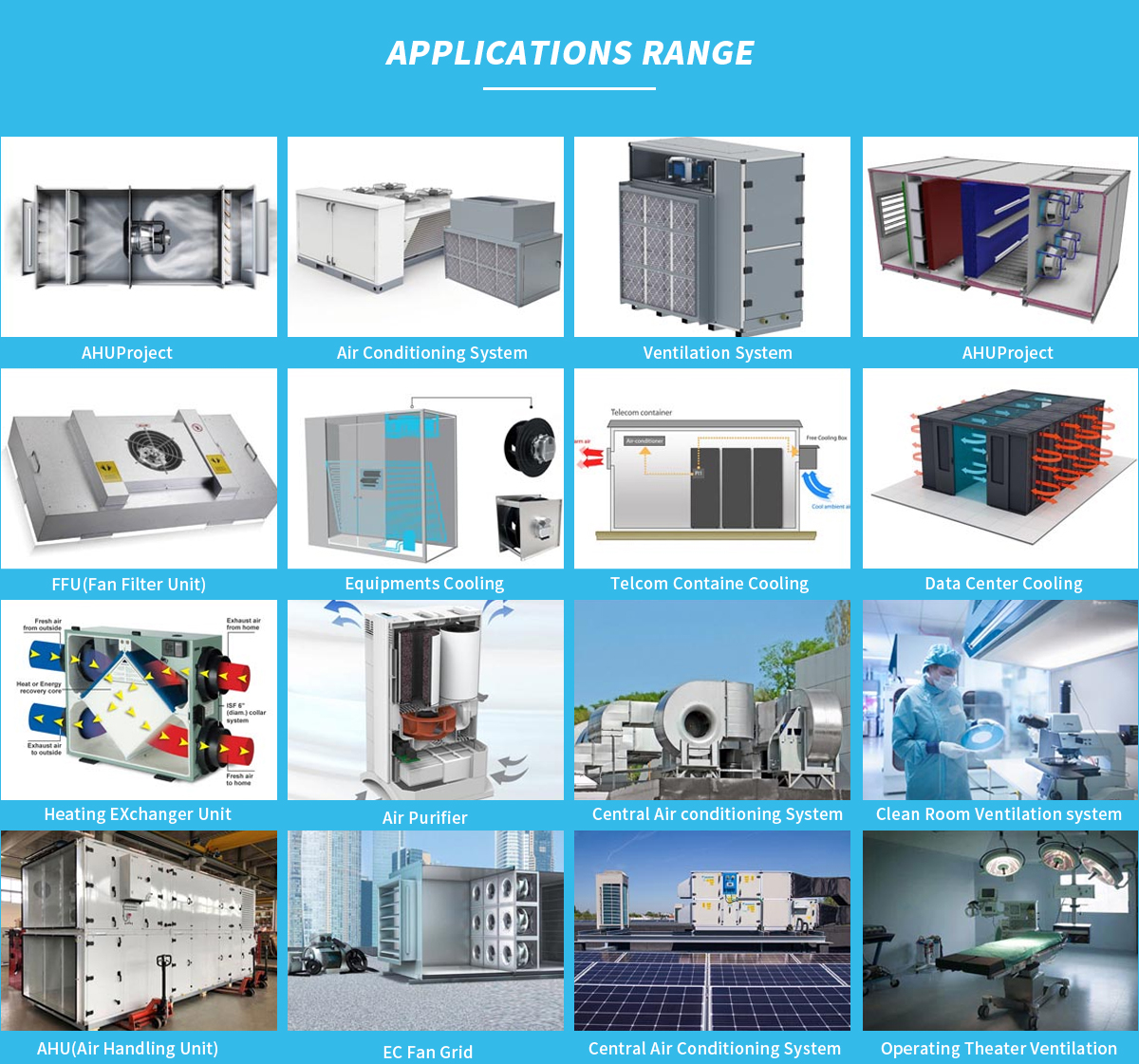

Scope of application

It is mainly used for purifying workbench, purification unit, ventilation duct dust removal, purification of air conditioning system, environmental protection and pollution control and other refrigeration equipment supporting work.

Product information

Wind wheel material: plastic PA66

Protection class: IP44

Certification: CCC CE

Insulation class: F

Product Specification

Backward inclined centrifugal fan

Vortex centrifugal fan, low energy consumption, strong wind, ABS environmental protection































Environmental protection shell

Low energy consumption, environmentally friendly materials, power up to 590W

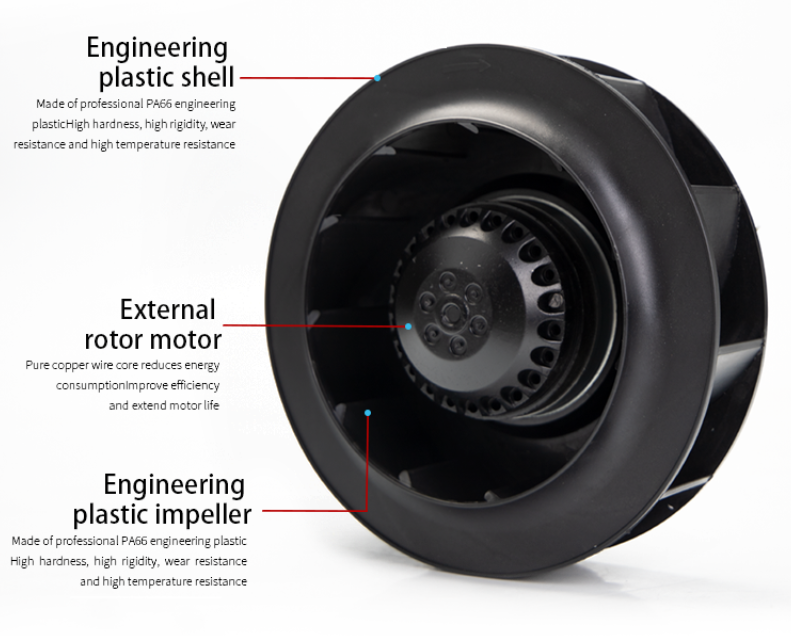

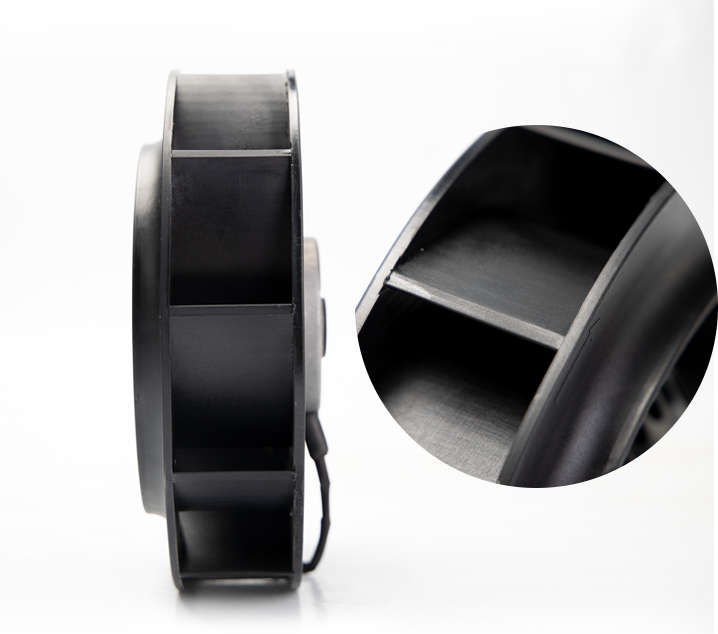

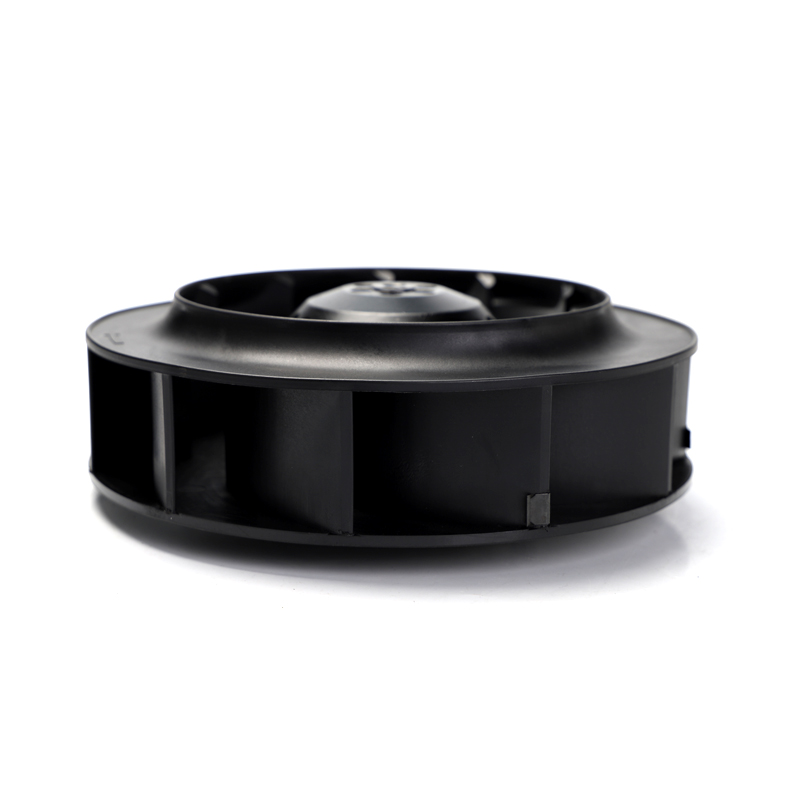

PA66 engineering plastic impeller

The impeller is made of professional engineering plastics has high hardness, high rigidity,not easy to deform, wear-resistant, good insulation, and can withstand up to 150°C.

product details

The vortex centrifugal fan is easy to install and beautiful in appearance

Product details display

Model	Rated Voltage (V)	Frequency (Hz)	Power (W)	Current (AMP)	Rotating speed (r/min)	Air Volume (m3/h)	Noise (dBA)	Weight (Kg)
HFC-B3P133-EC072-100	220	50/60	55	0.425	4500	420	68	1.5
HFC-B3P155-EC072-001	220	50/60	40	0.30	3570	430	63	1.7
HFC-B3P175EC072-100	220	50/60	80	0.65	3570	660	74	2.0
HFC-B3P190-EC072-002	220	50/60	95	0.73	3570	750	78	2.0
HFC-B3P190-EC092-009	220	50/60	180	1.40	4500	950	76	2.0
HFC-B3P220-EC072-100	220	50/60	70	0.60	2500	860	71	3.0
HFC-B3P220-EC092-100	220	50/60	145	1.00	3310	1036	75	3.0
HFC-B3P225-EC072-006	220	50/60	100	0.80	2250	1230	63	3.0
HFC-B3P225-EC072-008	220	50/60	170	1.16	3000	1465	79	3.0
HFC-B3P225-EC092-025	220	50/60	160	1.10	3000	1500	69	3.0
HFC-B3P250-EC072-008	220	50/60	90	0.80	2150	1220	68	3.0
HFC-B3P250-EC092-003	220	50/60	130	0.87	2850	1415	75	3.0
HFC-B3P250-EC092-020	220	50/60	170	1.10	2600	1360	69	3.0
HFC-B3P250-EC092-033	220	50/60	145	1.00	2500	1700	74	3.0
HFC-B3P250-EC102-001	220	50/60	270	1.20	3170	1925	84	5.8
HFC-B3P280-EC092-004	220	50/60	135	1.00	2325	1550	75	3.5
HFC-B3P280-EC092-100	220	50/60	105	0.75	2000	1915	69	3.5
HFC-B3P280-EC102-010	220	50/60	370	1.75	2750	2450	68	6.0
HFC-B3P280-EC137-200	220	50/60	700	3.30	2950	3110	84	4.5
HFC-B3P310-EC092-100	220	50/60	175	1.30	1925	2200	74	4.0
HFC-B3P310-EC092-001	220	50/60	175	1.30	1770	2430	175	4.0
HFC-B3P310-EC102-100	220	50/60	300	1.40	2250	2550	68	6.0
HFC-B3P310-EC102-001	220	50/60	320	1.45	2200	2810	68	6.0
HFC-B3P310-EC137-100	220	50/60	730	3.40	2600	4350	85	7.0
HFC-B3P355-EC092-001	220	50/60	330	1.50	1400	2400	77	6.5
HFC-B3P355-EC102-100	220	50/60	220	1.00	1900	3100	72	6.5
HFC-B3P355-EC102-001	220	50/60	220	1.40	1700	3100	73	6.5
HFC-B3P355-EC137-200	220	50/60	900	4.20	2100	5700	94	7.5
HFC-B3P400-EC102-100	220	50/60	330	1.50	1430	3450	69	7.5
HFC-B3P400-EC137-200	220	50/60	725	3.40	1700	5700	80	8.5
HFC-B3P400-EC102-001	220	50/60	330	1.00	1400	3450	69	7.5
HFC-B3P450-EC102-100	220	50/60	260	1.20	1100	4600	70	13.8
HFC-B3P450-EC137-200	220	50/60	700	3.30	1450	7000	84	14.5
HFC-B3P470-EC102-105	220	50/60	220	1.00	1260	3800	69	14.5
HFC-B3P280-EC137-100	3~380	50/60	780	1.10	2850	2940	82	4.0
HFC-B3P280-EC137-900	3~380	50/60	1100	1.90	3500	3680	89	4.5
HFC-B3P310-EC137-100	3~380	50/60	980	1.64	2600	4270	74	25.5
HFC-B3P310-EC137-900	3~380	50/60	1400	2.40	3300	5430	92	7.0
HFC-B3P355-EC137-100	3~380	50/60	990	1.63	2100	5150	79	11.0
HFC-B3P355-EC137-900	3~380	50/60	1700	2.80	2700	6840	81	7.5
HFC-B3P355-EC188-001	3~380	50/60	2500	4.20	3200	7800	96	13.0
HFC-B3P400-EC137-100	3~380	50/60	725	1.22	1550	5420	73	17.0
HFC-B3P400-EC137-900	3~380	50/60	2500	4.20	2650	9700	90	19.0
HFC-B3P450-EC137-100	3~380	50/60	1000	1.67	1450	7340	73	14.0
HFC-B3P450-EC137-900	3~380	50/60	1200	2.20	1700	8540	93	7.5
HFC-B3P500-EC137-100	3~380	50/60	870	1.46	1100	7900	71	13.36
HFC-B3P500-EC188-001	3~380	50/60	3000	4.95	1800	13800	89	15.5
HFC-B3P560-EC137-100	3~380	50/60	770	1.30	850	9100	69	14.66
HFC-B3P560-EC188-001	3~380	50/60	2770	4.40	1520	16000	81	18.66
HFC-B3P630-EC188-001	3~380	50/60	2700	4.40	1250	18600	85	17.5

Using the Scene

It has the characteristics of compact structure, large air volume, high static pressure, low vibration, low noise and convenient installation.

Product parameters



The difference between forward tilting and backward tilting centrifugal fans

The centrifugal fan with forward tilt and backward tilt mainly refers to the different blades of the assembled fan. The forward tilt type is generally called a blower, and the backward tilt type is generally called an induced draft fan. The difference is the length of the impeller rung and the edge of the impeller.

The forward tilt is parallel to the edge of the impeller, and the impeller outlet angle is greater than 90 degrees. The forward tilt impeller is also called the forward tilt impeller. The forward tilt impeller is mostly high pressure. The backward tilt is not parallel to the impeller, and the difference between the length and the edge of the impeller is a few centimeters or a few millimeters. It means that the outlet angle of the impeller is less than 90 degrees. The backward tilt impeller is also called the backward tilt impeller.

There are three main differences

① Power

The static pressure head used to overcome the system resistance, the forward-inclined centrifugal fan is smaller than the backward-inclined centrifugal fan. Since the channel in the backward-sloping blade fan is gradually enlarged, and the curvature of the backward-sloping blade is smaller than that of the forward-leaning blade, the hydraulic loss is smaller than that of the forward-leaning type. Forward-inclined centrifugal fans are less efficient than backward-inclined centrifugal fans.

② Energy consumption

Since the efficiency of the forward-inclined centrifugal fan is lower than that of the backward-inclined centrifugal fan, its power consumption is greater than that of the backward-inclined centrifugal fan.

③ Noise

The airflow of the forward-tilted blade has a large energy conversion loss, the collision speed of the airflow and the casing is large, and the curvature of the channel of the backward-tilted blade is gentle, so the operating noise of the forward-tilted centrifugal fan is greater than that of the backward-tilted centrifugal fan.
