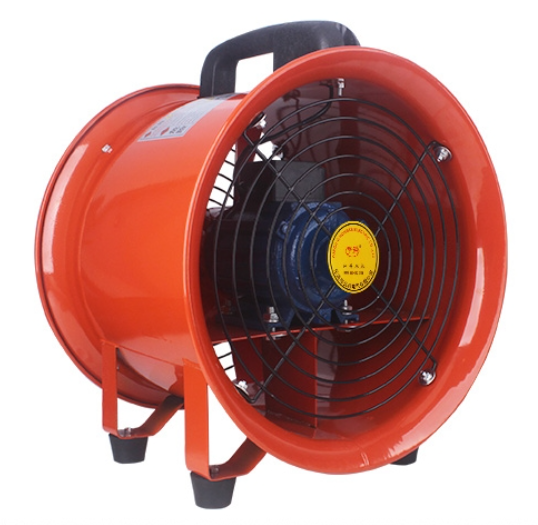

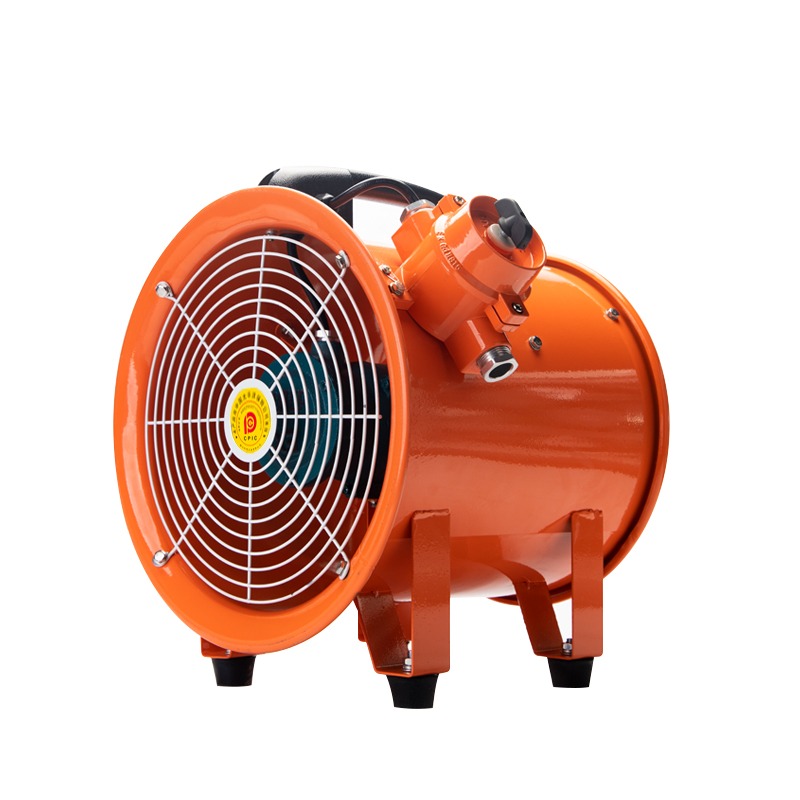

Portable explosion-proof fan

Portable explosion-proof fans are widely used in basements, tunnels, municipal pipeline engineering, mechanical shipbuilding engineering, mining ventilation equipment, fire smoke exhaust, and other harsh air environments, as well as the discharge of harmful gases generated by welding operations. And for pumping exhaust gas in confined narrow and long space construction.

power：0.15KW-0.9KW
Air volume：1500m3/h-10000m3/h
Rotating speed：1450r/min-2800r/min

Please click the inquiry button below to contact us

Click here to inquire
分类： ,

描述

Specification:

Portable explosion-proof fans are widely used in basements,tun-nels,municipal pipeline engineer-ing,mechanical shipbuilding engi-neering,mining ventilation equip-ment, fire smoke exhaust and other harsh air environments,as well as the discharge of harmful gases generated by welding oper-ations.And for pumping exhaust gas in confied narrow and long space construction.

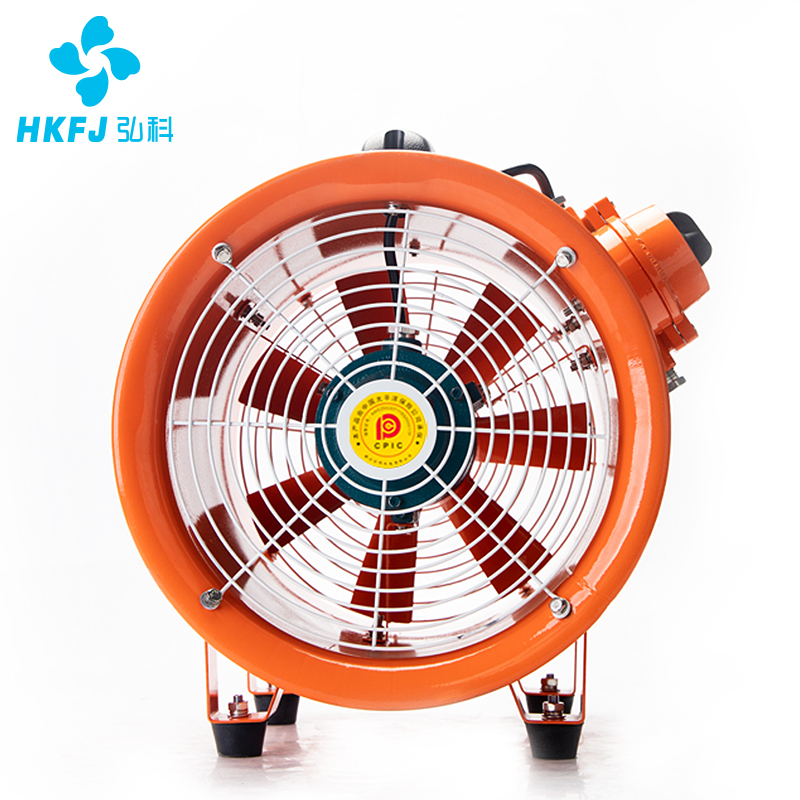

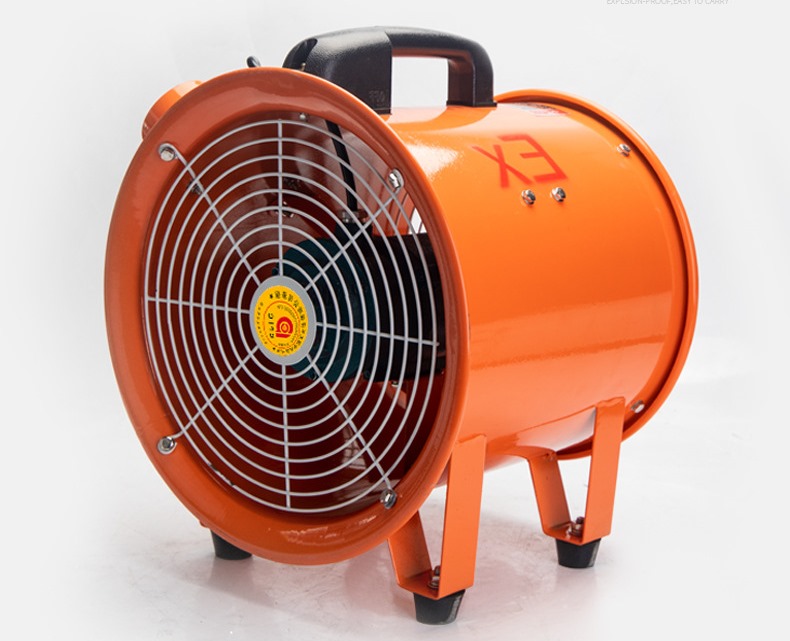

Portable explosion-proof axial flow fan

strong wind and silent, safe and explosion-proof,easy to carry

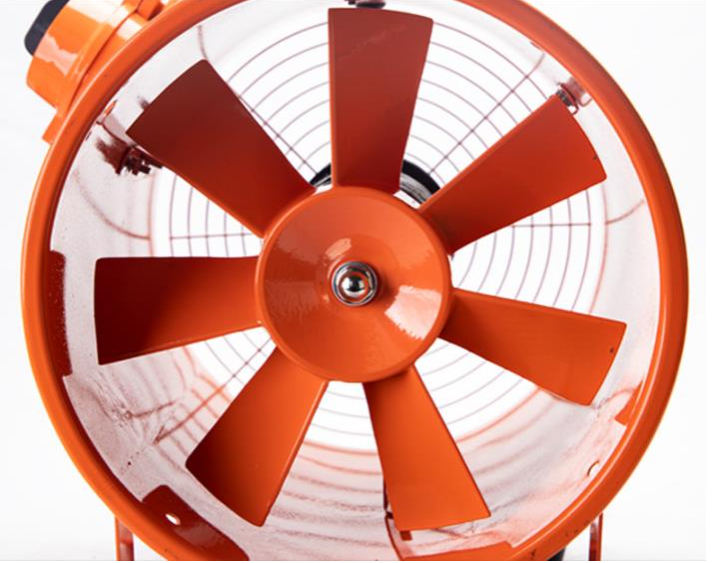

Cast aluminum fan blade
High-pressure cast aluminum fan blades are safe, explosion-proof and durable

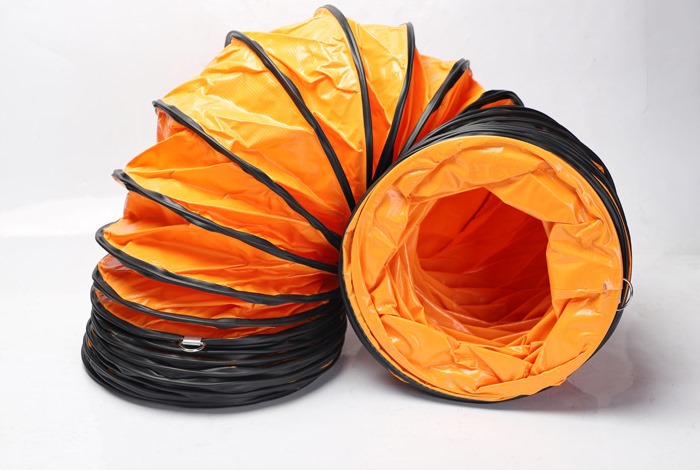

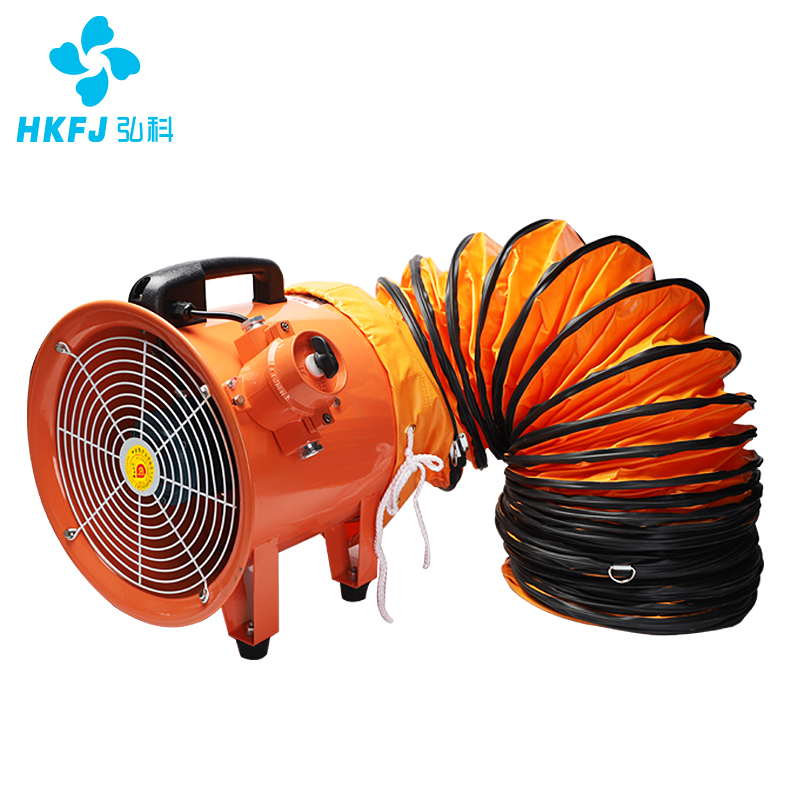

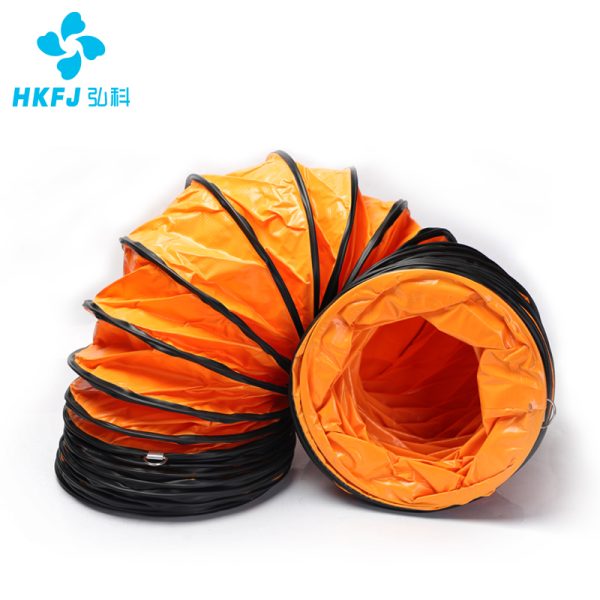

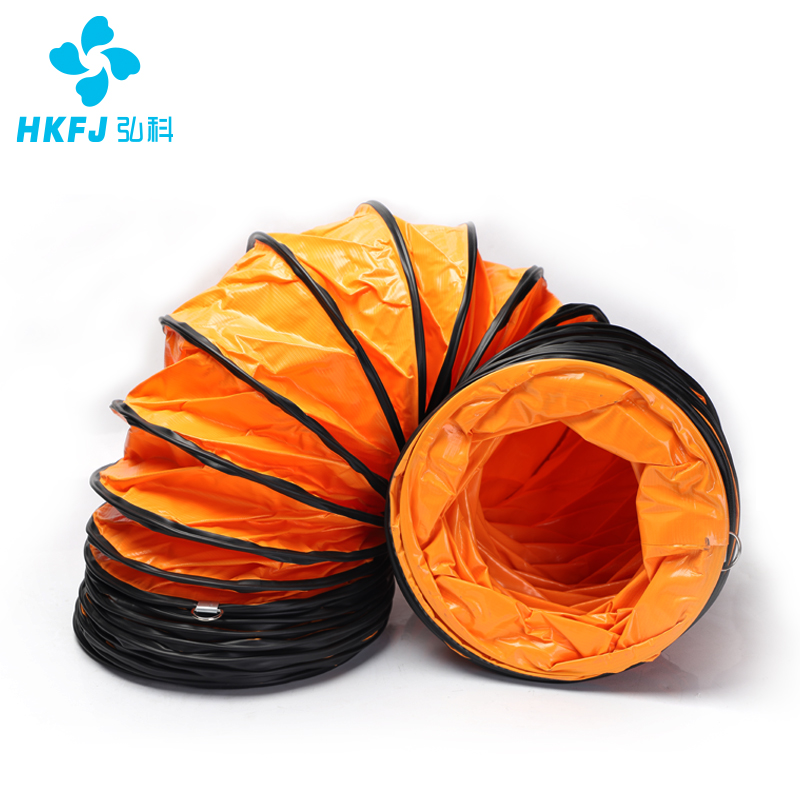

Can be equipped with duct
Can be equipped with 5m, 10m, 15m, 20m air duct

Note:The product does not contain air ducts,if you need air ducts,please contact.

Product details

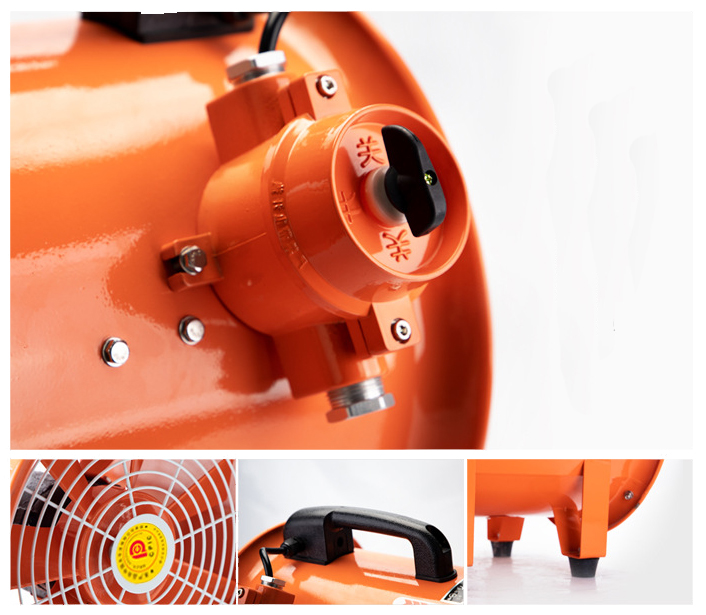

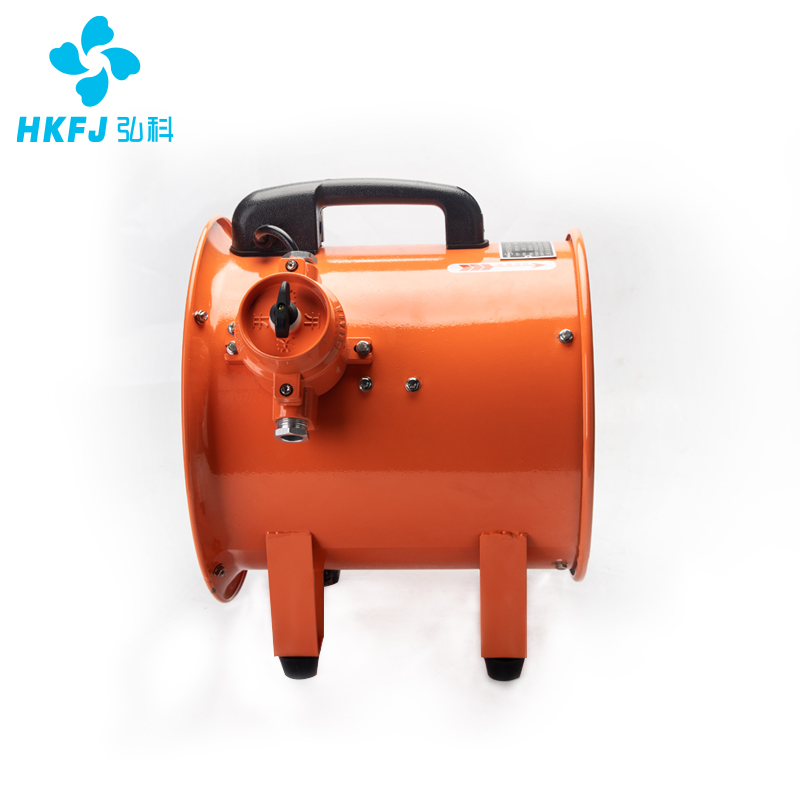

Bilateral encrypted protective net, explosion-proof switch, portable handle, rubber foot pad

Technique parameters:

Machine number Leaf diameter(mm) Flow(m3/h) Static pressure(Pa) Rotating speed(r/min) Frequency(Hz) Power(kW)
BSFT-200 190 1500-2100 250-420 2800 50/60 0.15
BSFT-250 240 2700-3300 300-450 2800 50/60 0.25
BSFT-300 290 3720-3300 350-500 2800 50/60 0.37
BSFT-350 340 4840-5840 550-600 2800 50/60 0.55
BSFT-400 390 5860-6840 750-800 2800 50/60 0.9
BSFT-500 490 6800-10000 185-200 1450 50/60 0.75
