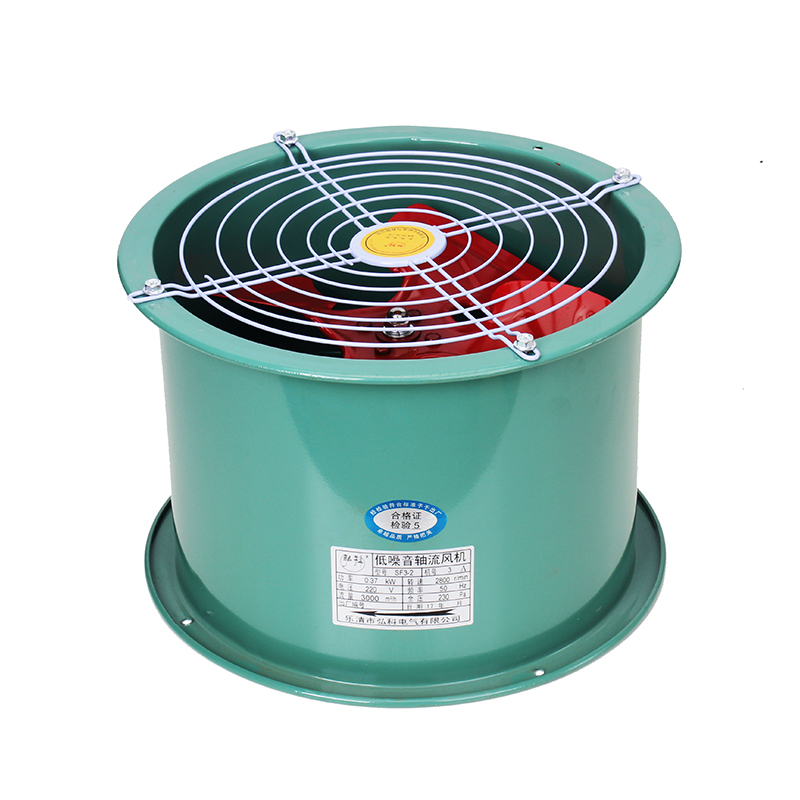

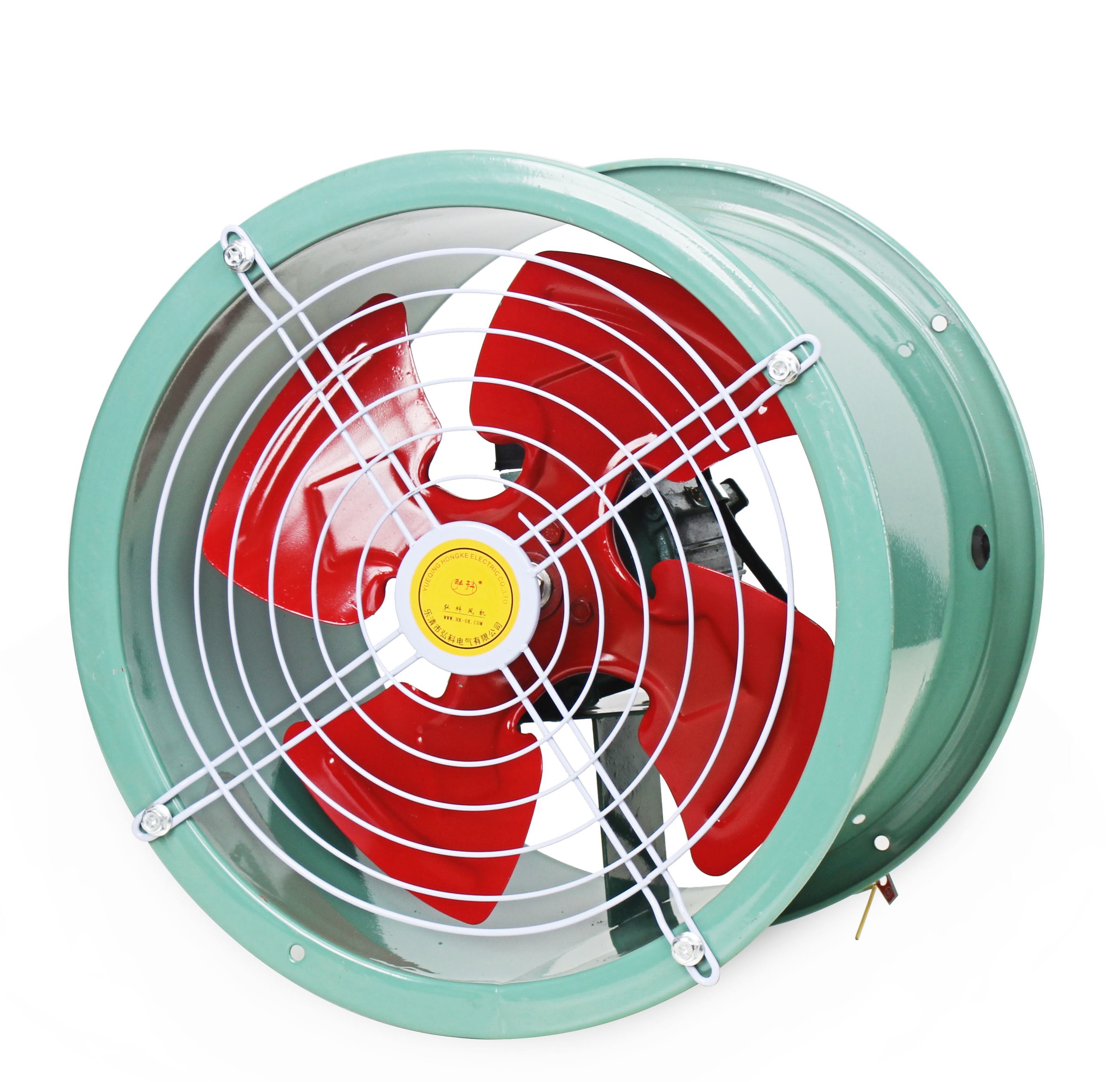

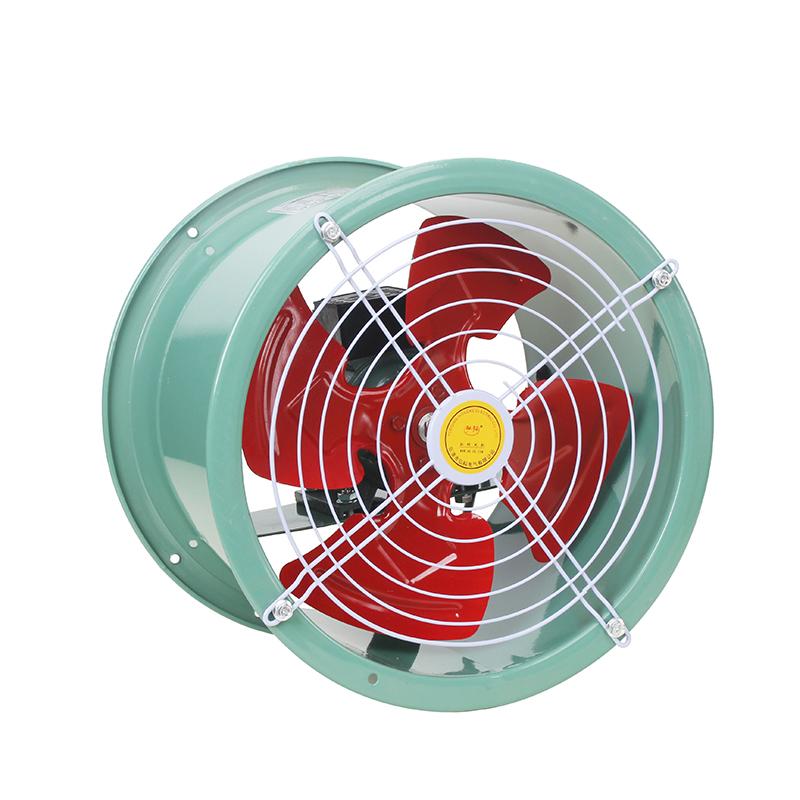

SF axial flow fan 220V strong low noise smoke exhaust fan high speed industrial pipe ventilation and dust removal

描述

Specification:



The SF series energy-saving low-noise axial flow fan is designed with low speed and high-pressure coefficients, which possesses advantages of large flow, stable operation, low power consumption, high efficiency, large air flow, low noise, reasonable structure and user friendly for its selection of high-quality motor with the support of special motor. It is a fan that is well received by the majority of users.



SF series energy-saving axial fan
High performance, easy installation with large air volume, low noise, low energy consumption, the choice of millions of factories

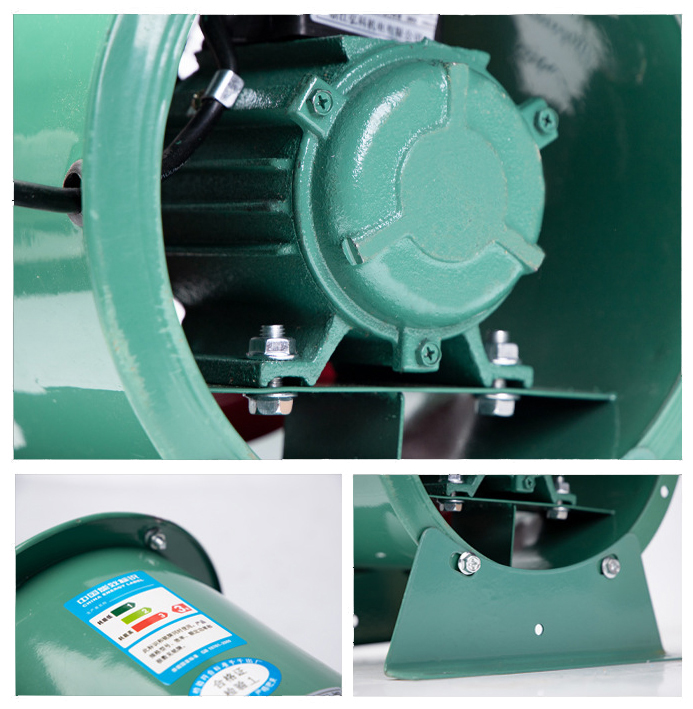

Thickened carbon steel shell

Wear resistance, corrosion resistance, shock resistance and drop resistance

Widened steel blades

Enlarge and widen the fan blades to increase the contact surface with the air,so that the air volume is greater

Product details

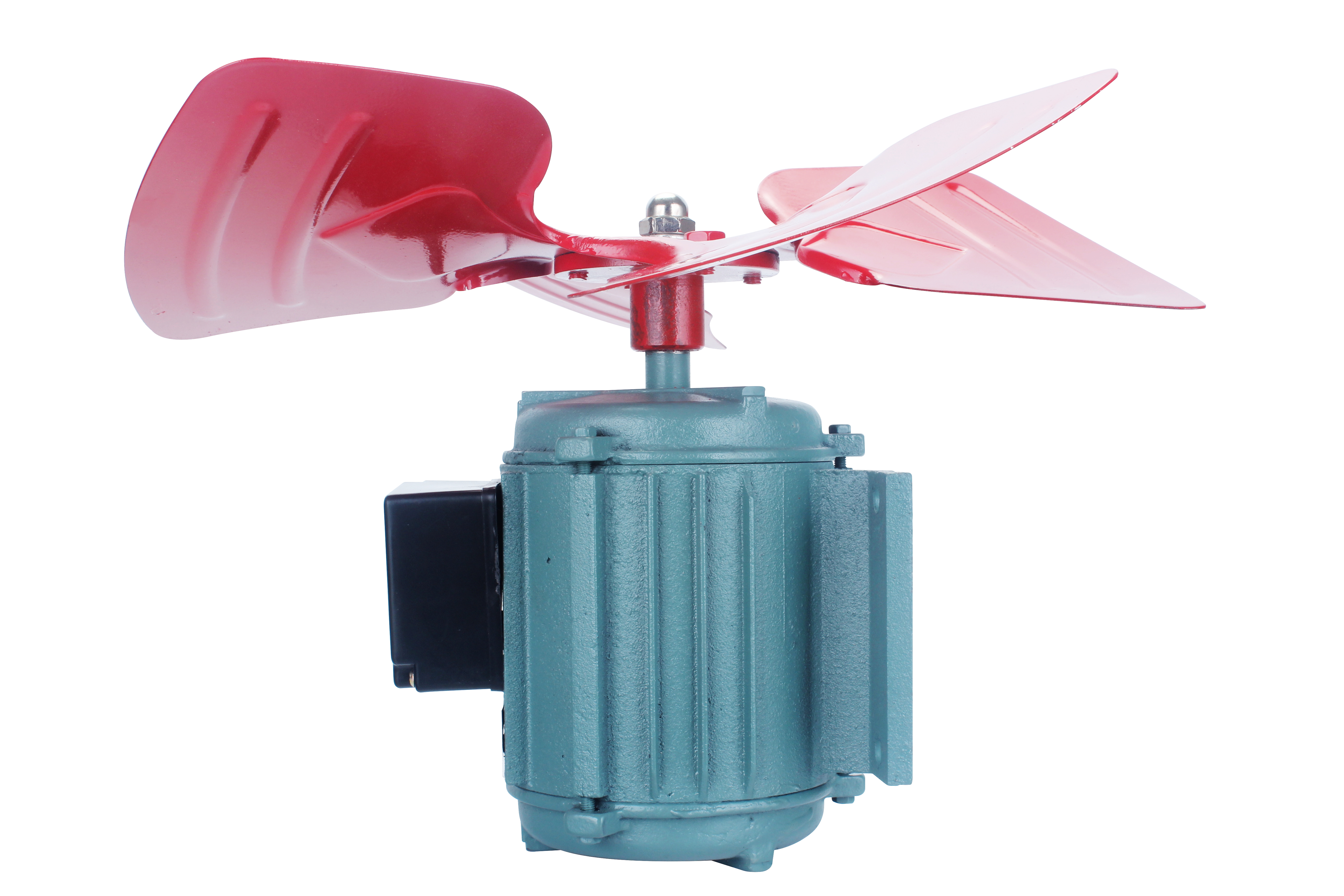

Pure copper high-speed motor speed up to 2800 times/min

Technique parameters:

Machinenumber	Speed(r/min)	Air volume(m 3/h)	Wind pressure(Pa)	Power(kW)	Noise(dBA)
2	2800	1300	140~96	0.12	66
2.5	2800	2100	215~150	0.25	72
2.5	1450	1000	35~16	0.09	53
3	2800	3000	230~160	0.37	74
3	1450	2000	59~25	0.18	61
3.5	2800	4760	310~210	1.1	78
4	2800	11000	320~220	1.5	83
4	1450	5300	167~80	0.55	74
4	1450	5300	167~80	0.37	74
5	1450	9300	200~90	0.75	78
6	1450	18700	300~90	2.2	85
7	1450	24500	350~150	3	87
7	960	21500	210~120	2.1	82
8	1450	28000	380~100	4	88
8	960	25000	230~90	2.2	85
10	960	50000	260~120	4	88
12	720	58000	280~150	4	90
14	720	72000	320~160	5.5	93

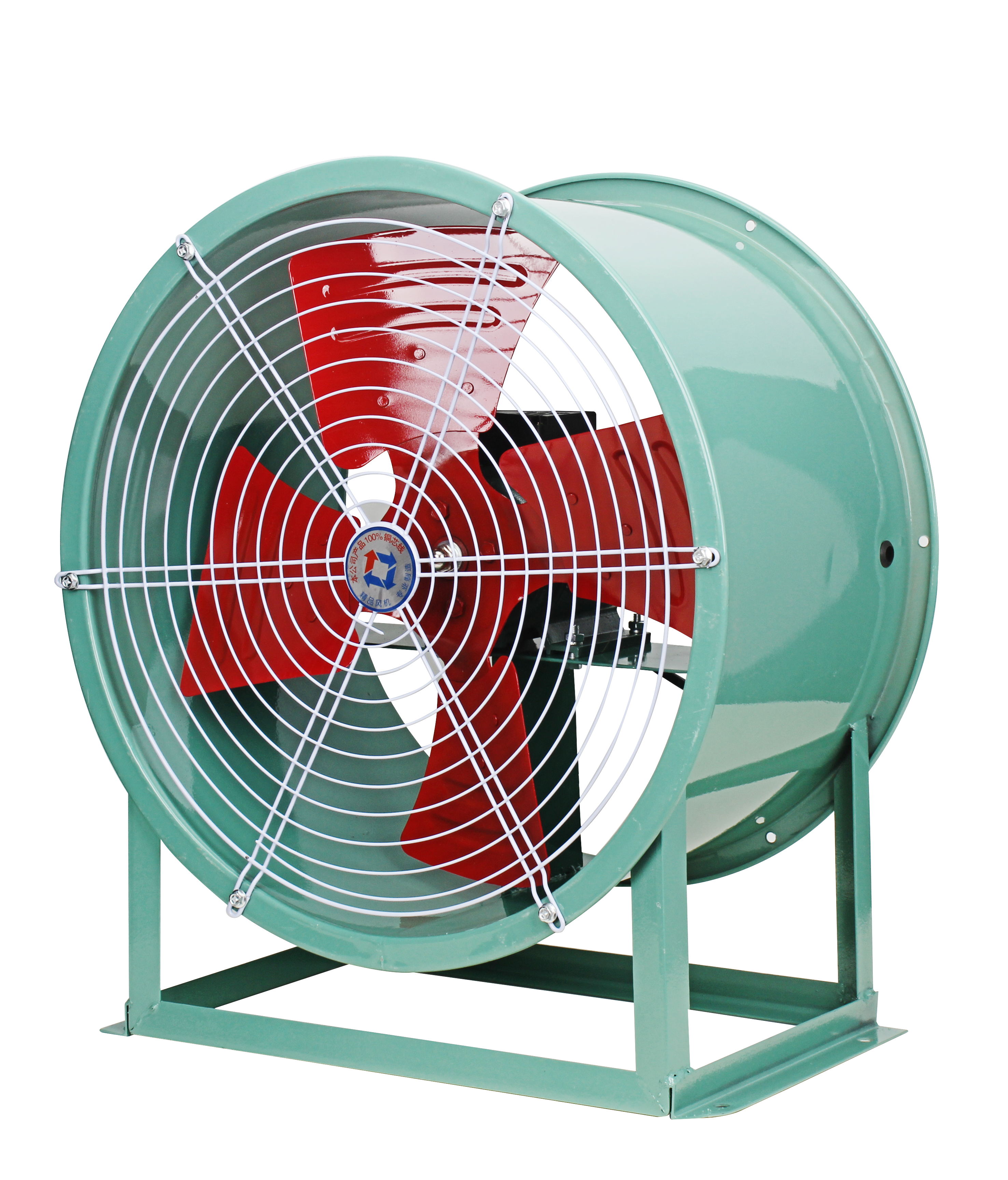

Machinenumber Fixed	D	D1	H	L	F	G	I	J
2.5	260	320	210	255	187	240	265	300
3	310	370	240	260	235	275	295	335
4	412	472	300	325	230	275	420	465
5	512	572	355	315	220	270	500	545
6	612	680	440	500	340	390	550	610
7	712	780	490	520	340	390	670	730
8	815	875	612	550	340	390	670	730

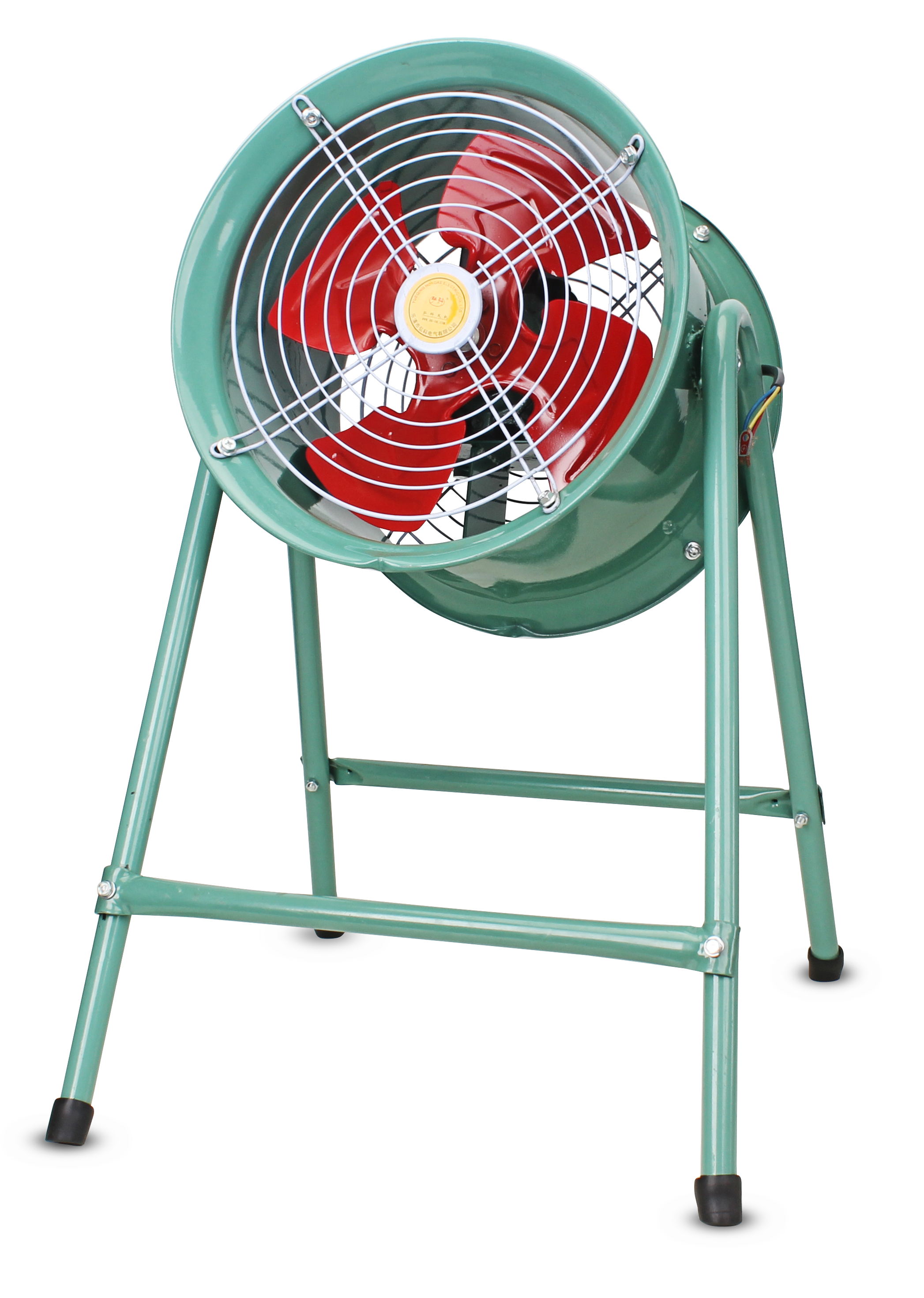

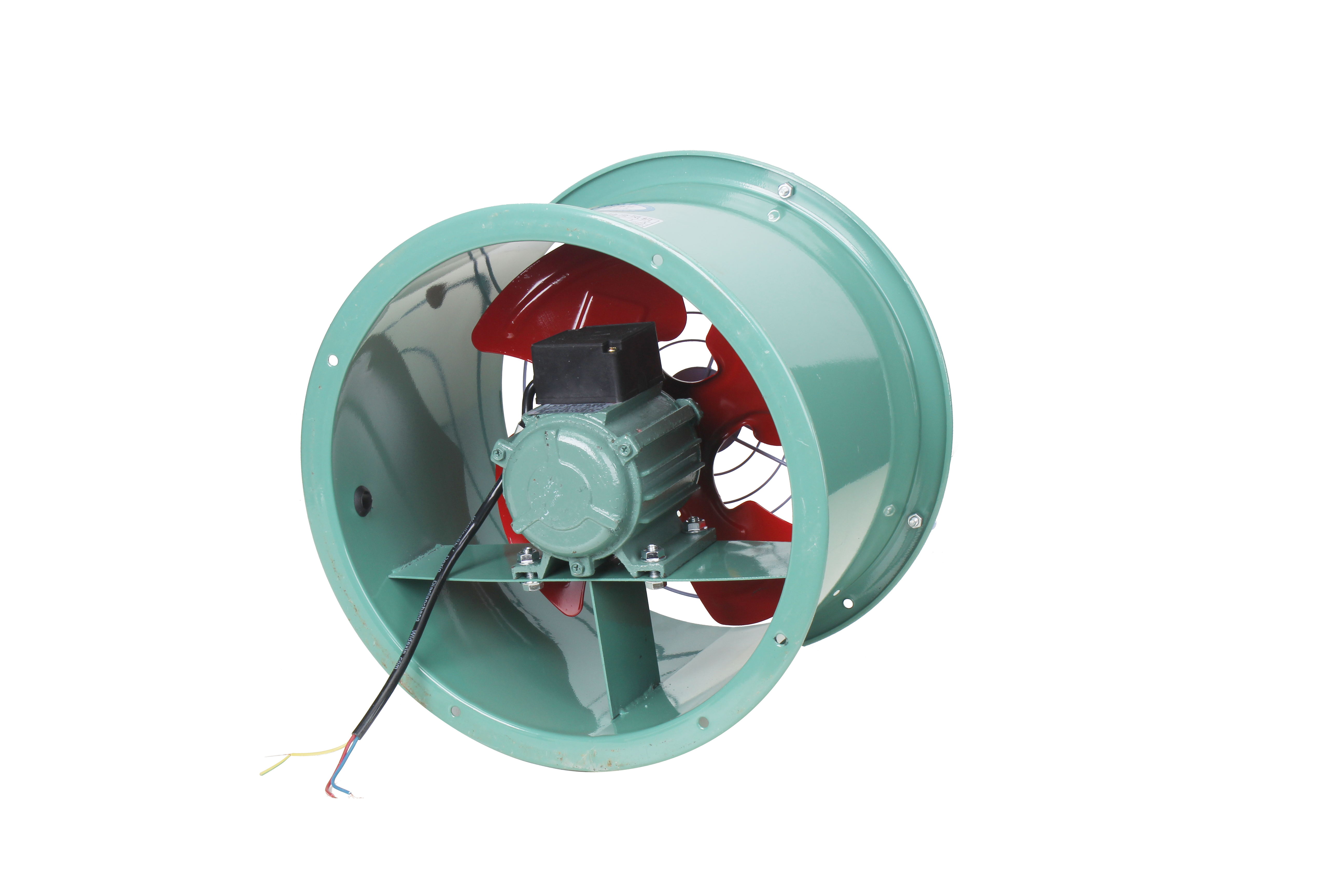

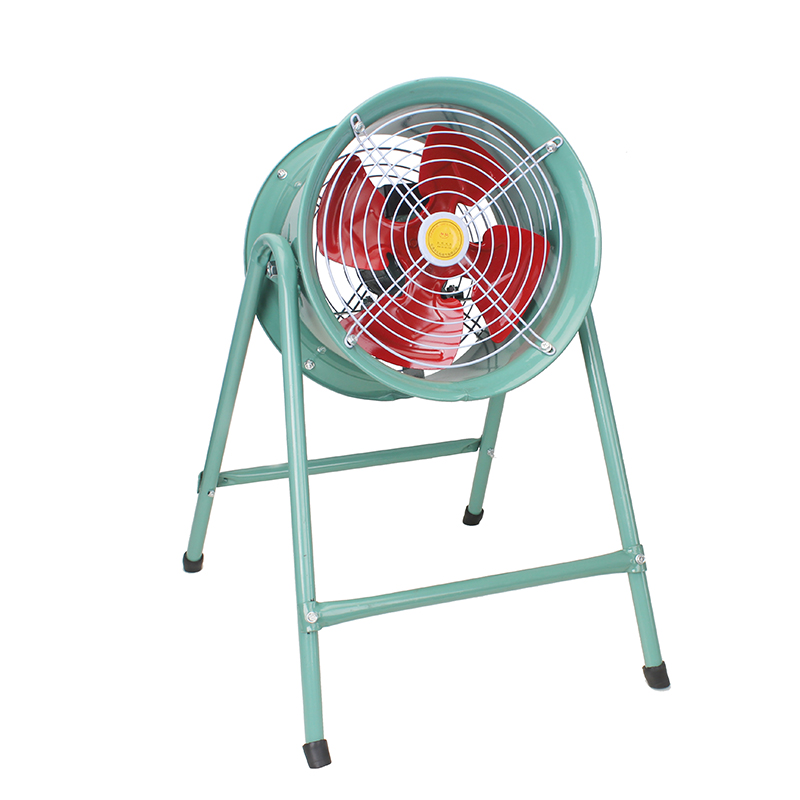

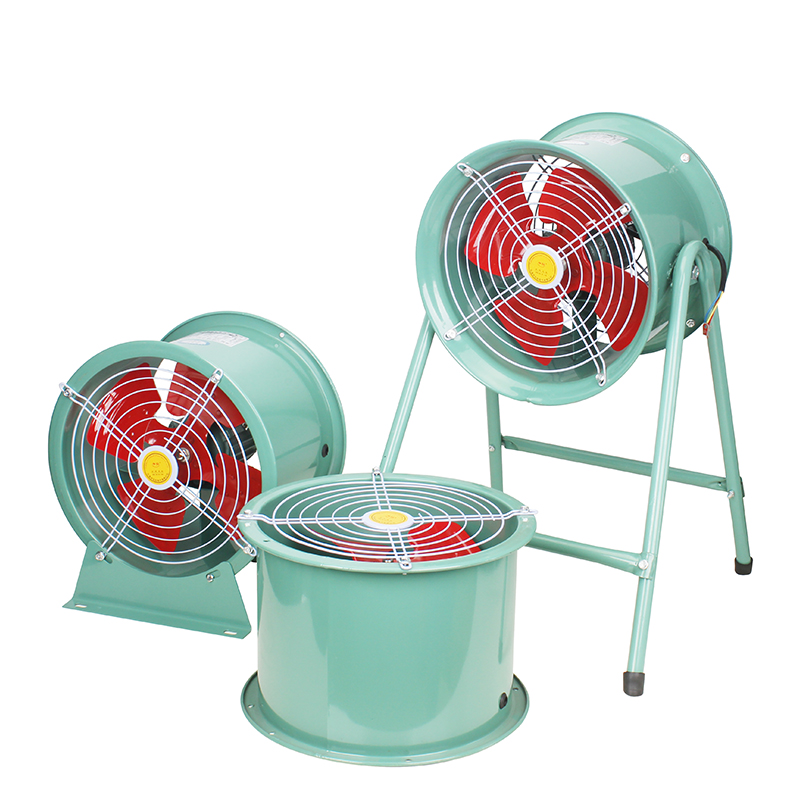

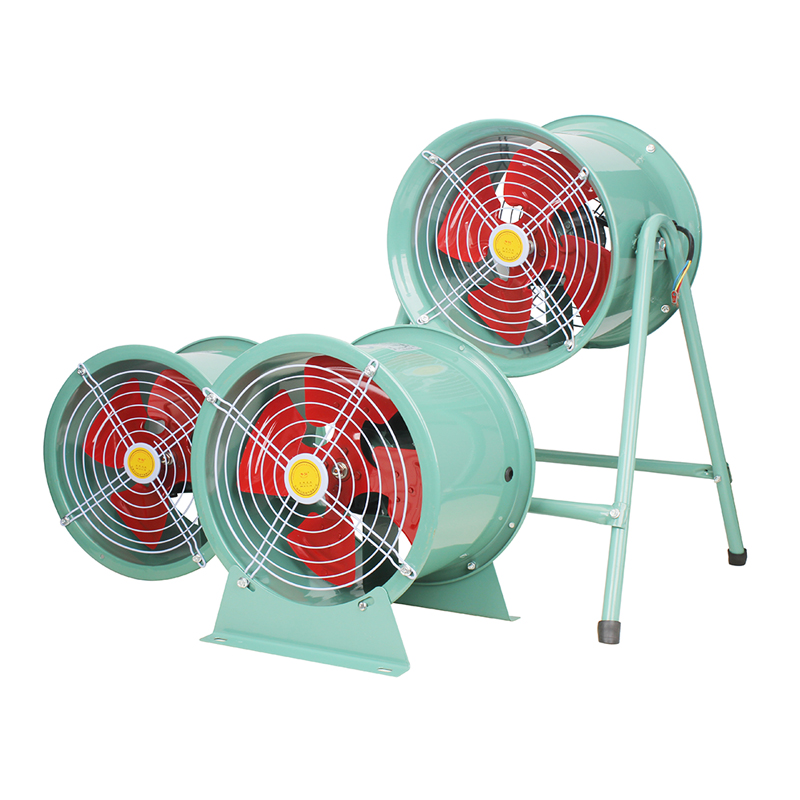

Machinenumber Pipeline	D	D1	L	Machinenumber Post Style	D	D1	H	L
2	210	235	245	2.5	260	290	320	270/310
2.5	260	320	255	3	310	340	370	280/320
3	310	370	260	4	412	442	472	370/450
4	:12	472	325	5	512	542	572	380
5	512	572	315	6	612	646	680	530
6	612	680	500	7	712	746	780	530
7	712	780	520
