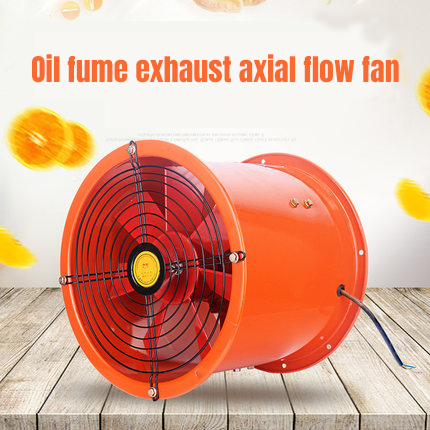

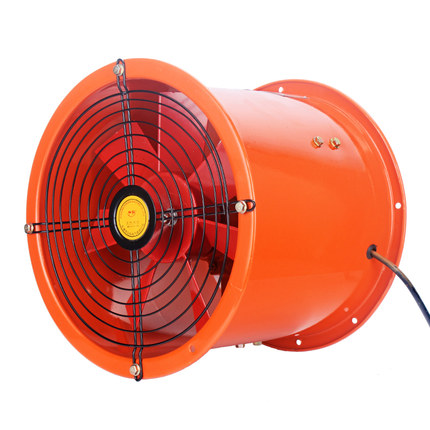

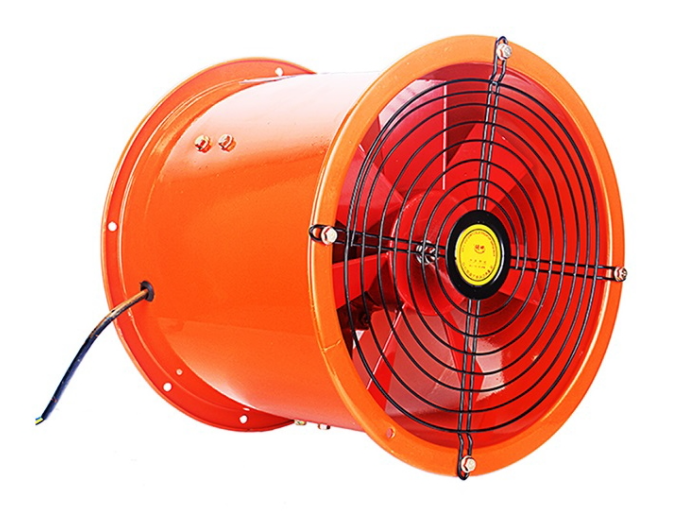

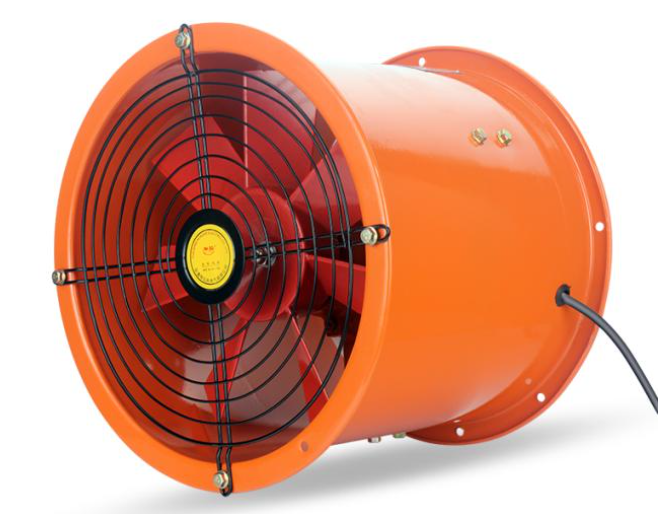

SFT Oil proof and moisture-proof axial flow fan

Description

Specification:

The SFT series fan resistant to high temperature, oil and moisture is a special ventilation device that is dedicatedly designed for complex environments such as hotels, bath centers, and factories, etc. The motor is produced in strict accordance with the requirements of producing explosion-proof motors. Its insulation is up to F grade. Besides, the sealing performance of the motor is improved thanks to the technical improvement of the enclosure. Therefore, the product can be used in a humid, or high temperature environment (less than 80°C), which is free from oil stains since it is made of aluminum alloy blades. On this basis, it is also known as a dedicated fan for the kitchen.

Oil-proof and moisture-proof
SFT Series Pipeline Axial Fan

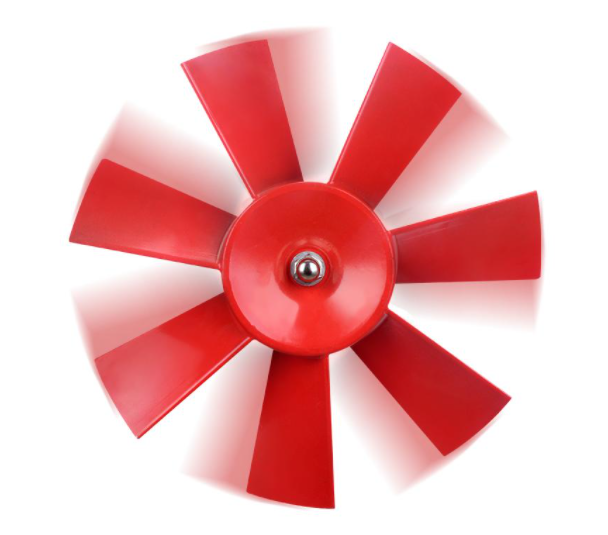

Seven aluminum alloy fan blades

Seven thick aluminum alloy fan blades, large air volume, low noise, non-sticky,
corrosion-resistant, easy to clean

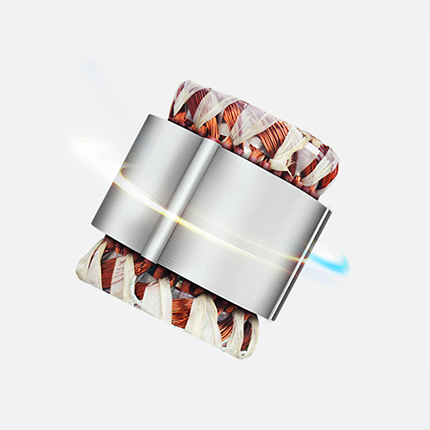

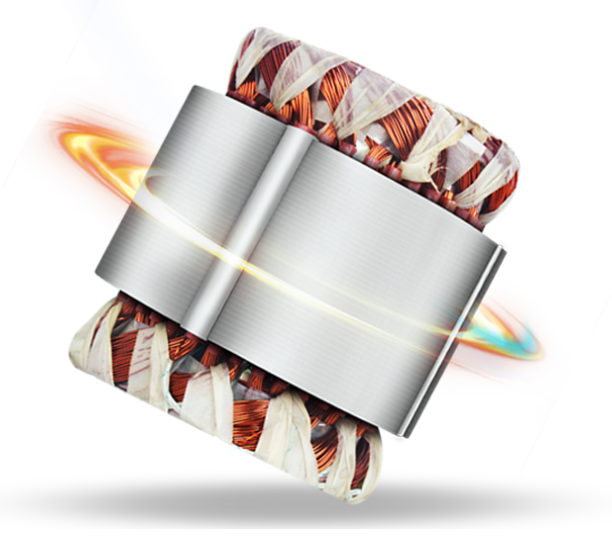

Pure copper motor safety starts from the “core”
The movement adopts high temperature resistant copper wire to ensure the safe and stable operation of the motor

Technique parameters:

Machine number	Size(inch)	Voltage(V)	Power(kW)	Air volume(m³/h)	Rotating speed(r/min)	Full pressure(Pa)
2.5-4	10	220/380	0.12	1000	1450	35
2.5-2	10	220/380	0.25	2100	2800	215
3-4	12	220/380	0.18	300	1450	59
3-2	12	220/380	0.37	4000	2800	230
4-4	16	220/380	0.55	5870	1450	148
4–2	16	220/380	1.5	11000	2800	370
5-4	20	220/380	0.72	6800	1450	200

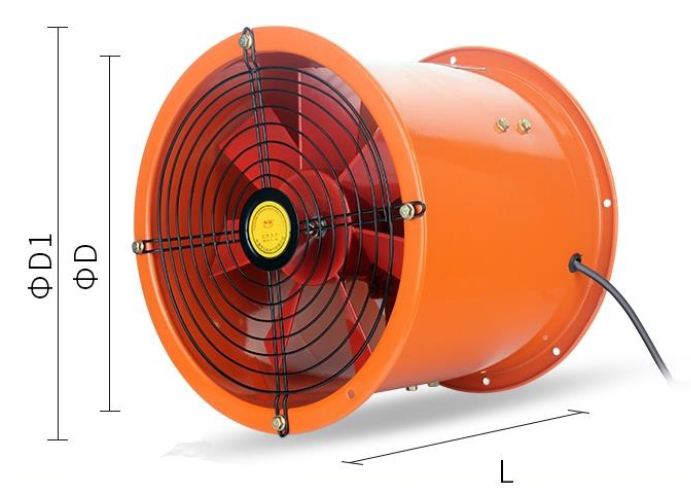

Machine number	D	D1	L
2	210	235	245
2.5	260	320	255
3	310	370	260
4	412	472	325
5	512	572	315
