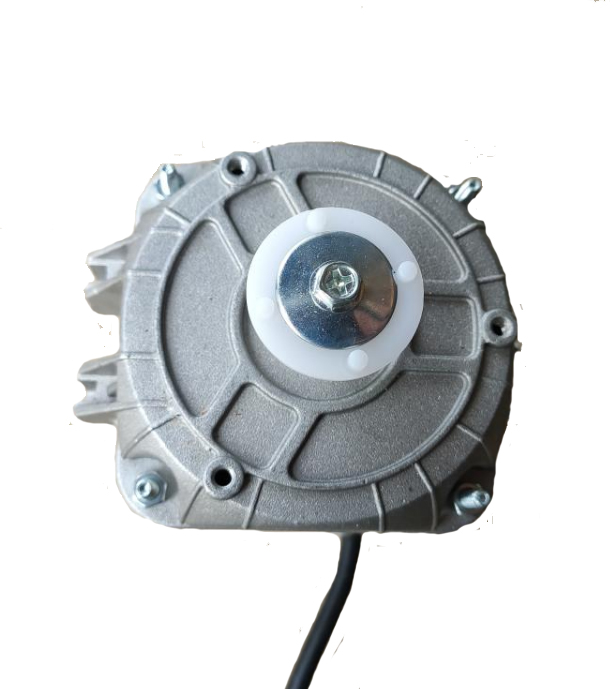

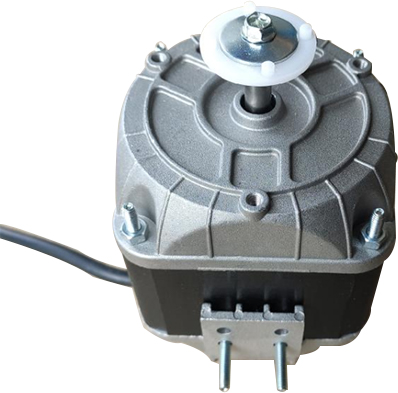

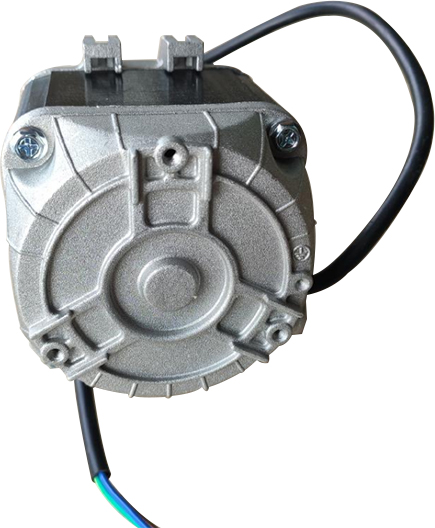

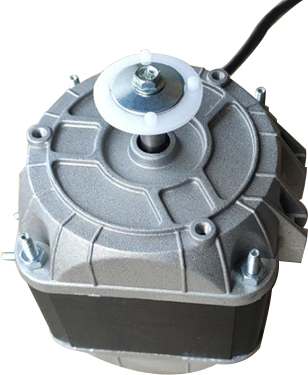

Shaded Pole Motor
Power：18W-110W
Air volume：
Rotating speed：1300r/min-1550r/min
Please click the inquiry button below to contact us
Description
Overall description:
1.Working mode: continuous S1
2.The motor adopts oil-containing bearings, and the average life of the motor is not less than 20,000 hours
3.Protection grade is IP42
4.The insulation class is B or F, the output power is above 10W, a thermal protector is built in, and the operating temperature is B130±5°C or F150±5°C
5.The rated voltage of the motor is 220-240V, 50/60Hz, other voltages or dual voltages need to be customized
| Model | Voltage (V) |
Frequency (Hz) |
Output Power (W) |
Iutput Power (W) |
Current (A) |
RPM (r/min) |

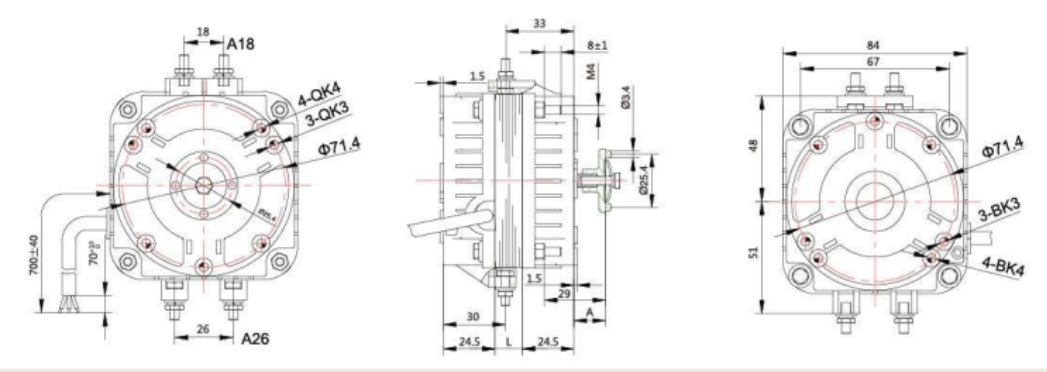

L (mm) |
A (mm) |
| YZF45L13P4-3* | 230±5% | 50 | 3 | 20 | 0.15 | 1300 | 13 | 13.5 |
| 60 | 18 | 0.14 | 1550 | |||||
| YZF45L13P4-3* | 230±5% | 50 | 5 | 29 | 0.2 | 1300 | 13 | 13.5 |
| 60 | 26 | 0.17 | 1550 | |||||
| YZF45L20P4-7* | 230±5% | 50 | 7 | 31 | 0.23 | 1300 | 20 | 15 |
| 60 | 30 | 0.2 | 1550 | |||||
| YZF45L20P4-10* | 230±5% | 50 | 10 | 36 | 0.25 | 1300 | 20 | 15 |
| 60 | 33 | 0.22 | 1550 | |||||
| YZF45L25P4-16* | 230±5% | 50 | 16 | 60 | 0.45 | 1300 | 25 | 19 |
| 60 | 58 | 0.36 | 1550 | |||||
| YZF45L30P4-18* | 230±5% | 50 | 18 | 70 | 0.5 | 1300 | 30 | 15.5 |
| 60 | 68 | 0.43 | 1550 | |||||
| YZF45L40P4-25* | 230±5% | 50 | 25 | 90 | 0.7 | 1300 | 40 | 21.5 |
| 60 | 83 | 0.65 | 1550 | |||||
| YZF45L45P4-34* | 230±5% | 50 | 34 | 110 | 0.85 | 1300 | 45 | 21.5 |
| 60 | 100 | 0.75 | 1550 |
