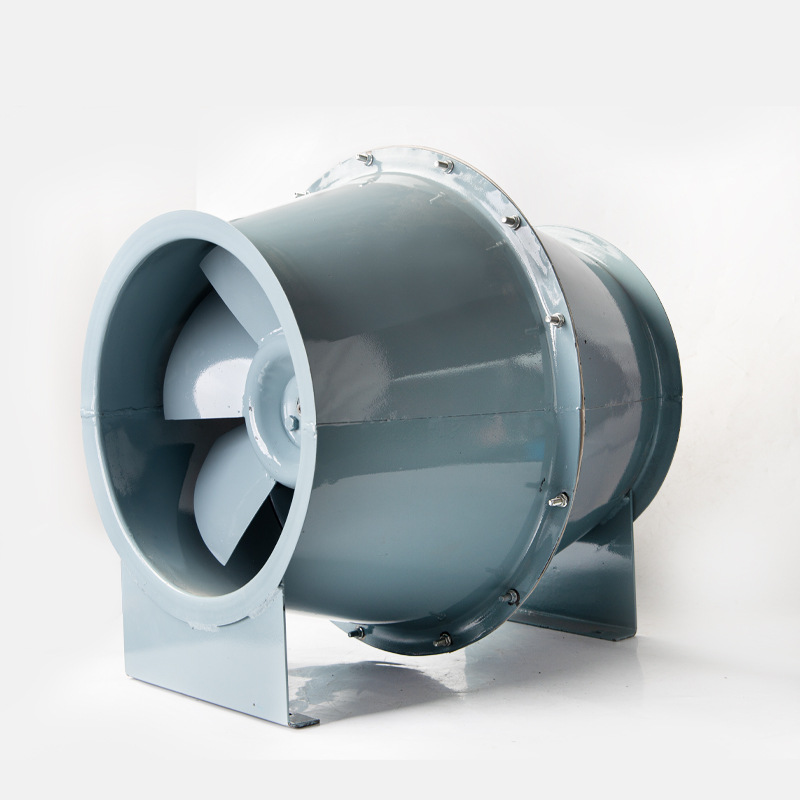

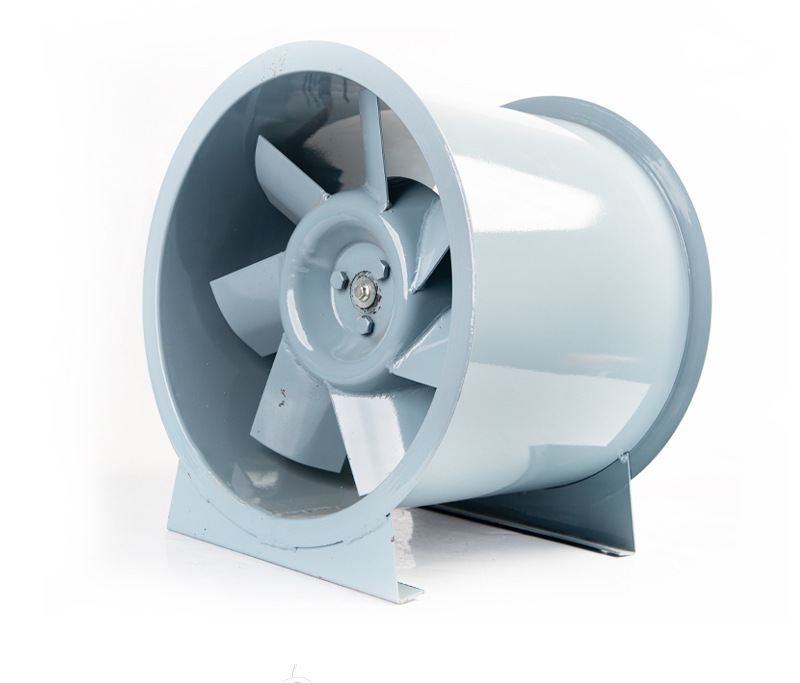

SJG drum type fire smoke exhaust diagonal flow fan

Description

SJG drum type fire smoke exhaust diagonal flow fan

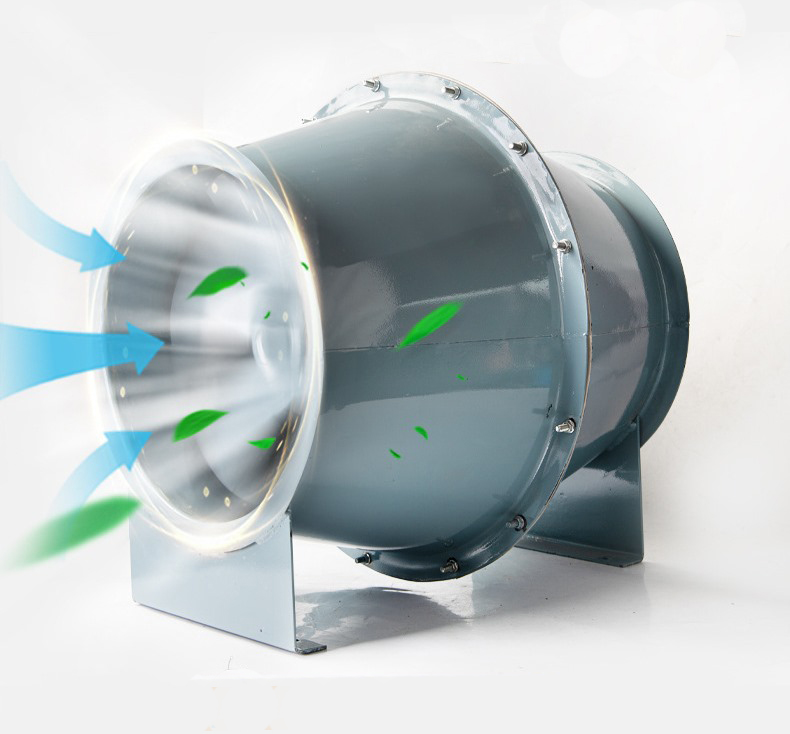

Strong wind, high speed and low noise.

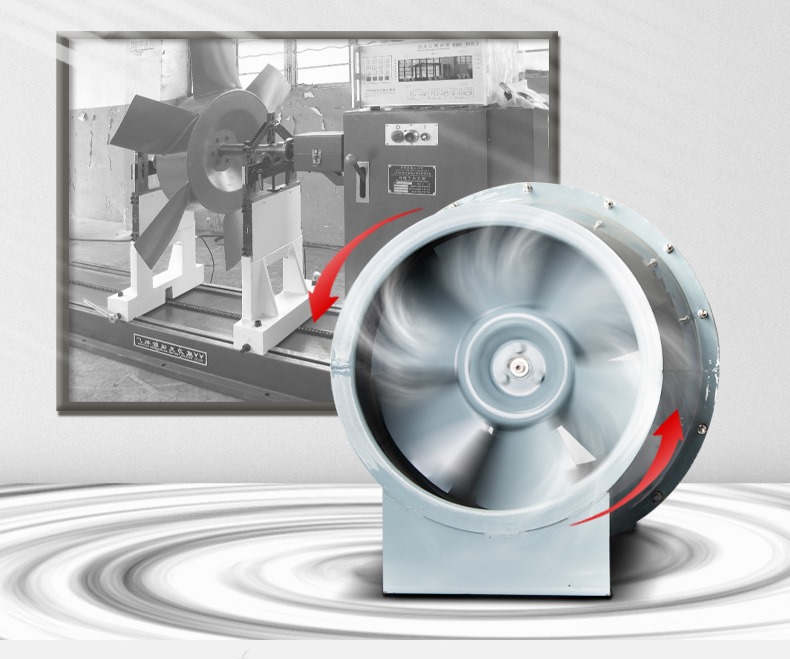

Dynamically Balanced Calibrated Carbon Steel Blades

The fan runs smoothly and prevent loss of control due to jitter.

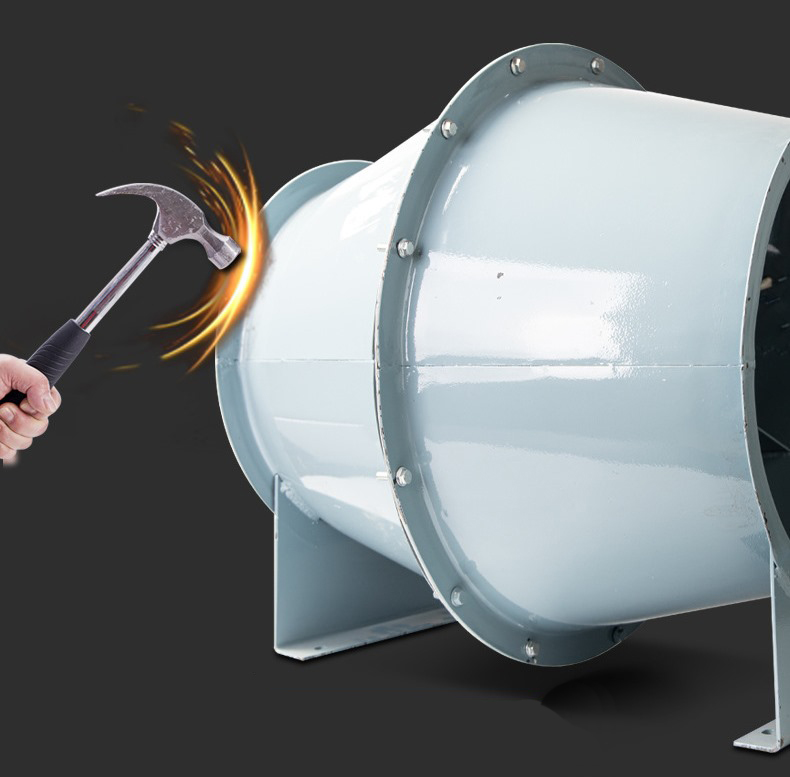

Thickened high-quality carbon steel material

The fan adopts carbon steel drum casing, which is durable and durable.

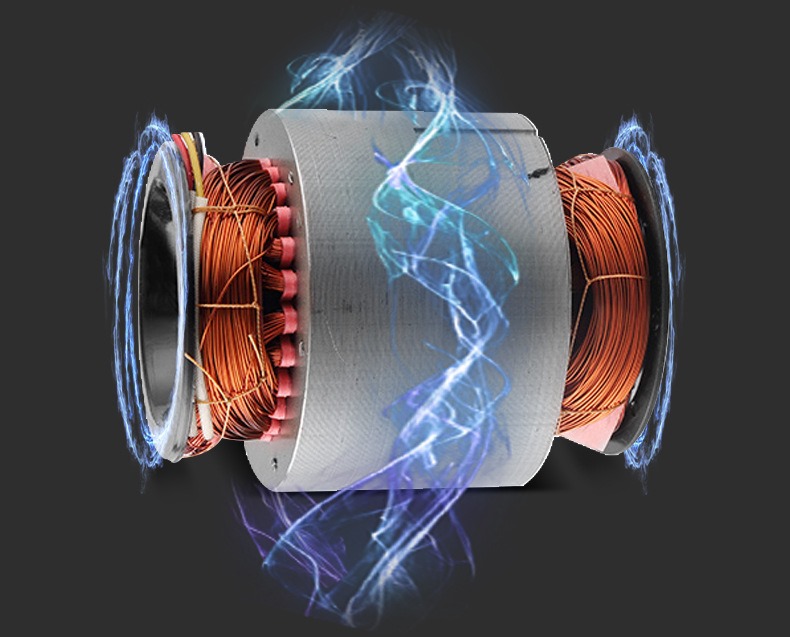

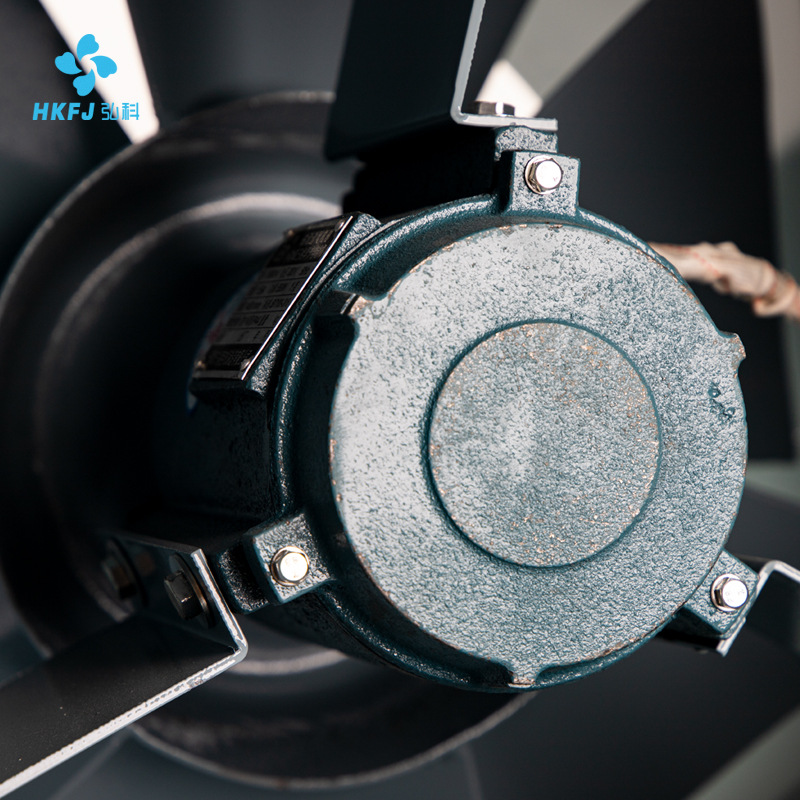

Full copper motor

The all-copper motor has the advantages of high efficiency, less heat generation, and long life.

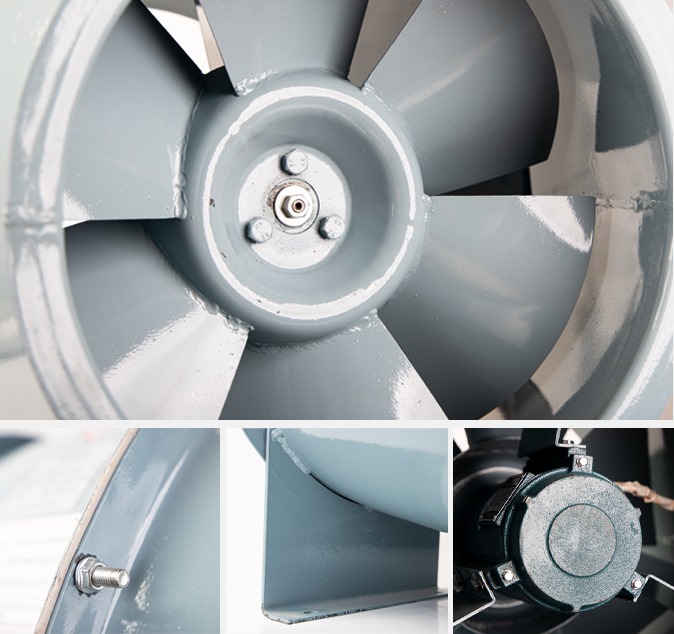

Product details

The fan is equipped with pure copper motor and carbon steel base to ensure smooth and efficient operation of the fan.

Usage scenarios

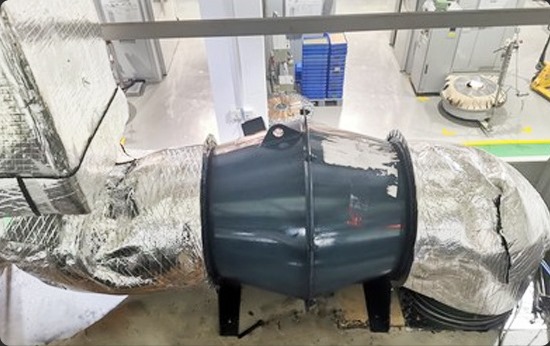

Widely used in civil buildings, hotels, restaurants, museums and other ventilation places, especially suitable for places with small pipeline installation space.

Technical parameter

Model	Rotating Speed (r/min)	Power (kw)	Motor Model	Air Flow (m3/h)	Full pressure (Pa)	Noise （dBA）	Weight (kg)
2F	1450	0.06	Y561-4	200	110	58	16
				400	91
				500	70
				600	54
2.5F	1450	0.18	Y632-4	300	180	60	24
				450	165
				600	150
				1000	110
3F	1450	0.37	Y712-6	500	260	61	27
				750	240
				1500	170
				2000	130
3.5S	960	0.25	Y801-4	800	140	59	42
				1500	100
				2000	80
				2500	50
3.5F	1450	0.55	Y801-6	1000	320	61	45
				2000	250
				3000	190
				4000	110
4S	960	0.37	Y802-4	1000	190	60	61
				2000	150
				3000	100
				4000	51
4F	1450	0.75	Y802-4	1000	420	62	67
				2000	390
				3000	280
				4000	220
4.5S	960	0.37	Y801-6	1500	360	61	70
				3000	275
				4000	150
				5000	100
4.5F	1450	1.1	Y90S-4	2000	580	68	80
				4000	480
				6000	350
				7000	250
5S	960	0.75	Y90S-6	1500	3«0	63	90
				2500	290
				4000	240
				6000	160
5F	1450	2.2	Y100L1-4	2000	710	69	110
				4000	580
				7000	480
				10000	345
6S	960	1.5	Y100L-6	3000	480	65	150
				6000	360
				8000	297
				11000	240
6F	1450	5.5	Y132S-4	4000	1200	75	165
				8000	870
				12000	690
				18000	380
7S	960	3	Y132S-6	4000	600	72	215
				8000	500
				15000	350
				18000	260
8E	720	4	Y160M1-8	6000	700	68	372
				10000	585
				15000	510
				25000	210
8S1	960	5.5	Y132M2-6	6000	780	71	320
				10000	700
				15000	600
				25000	400
8S2	960	7.5	Y160M-6	6000	880	72	360
				10000	790
				15000	685
				25000	510
