Stainless steel YWF external rotor axial flow fan

Description

Specification:

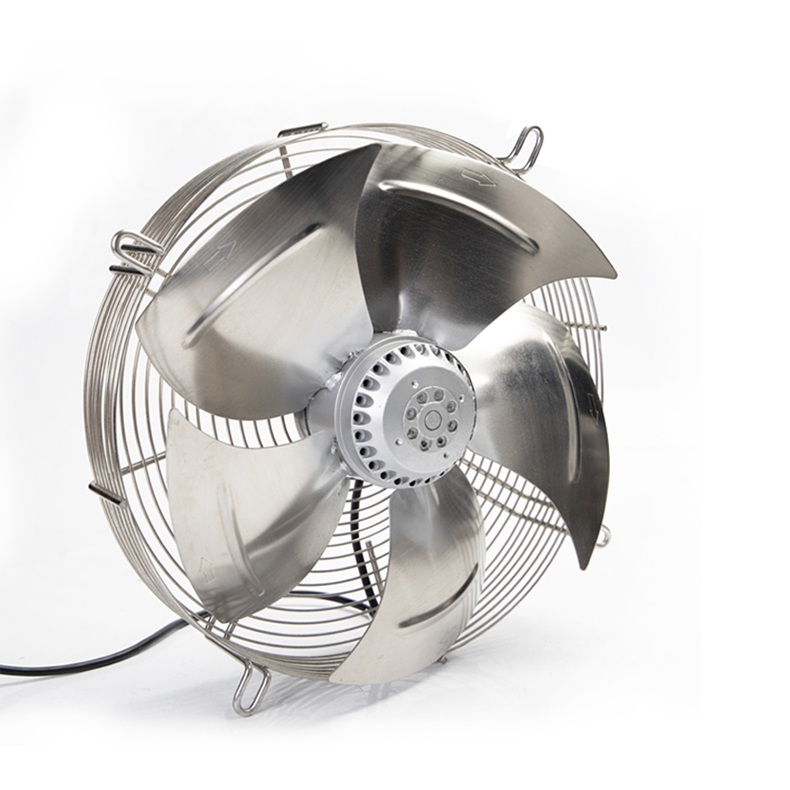

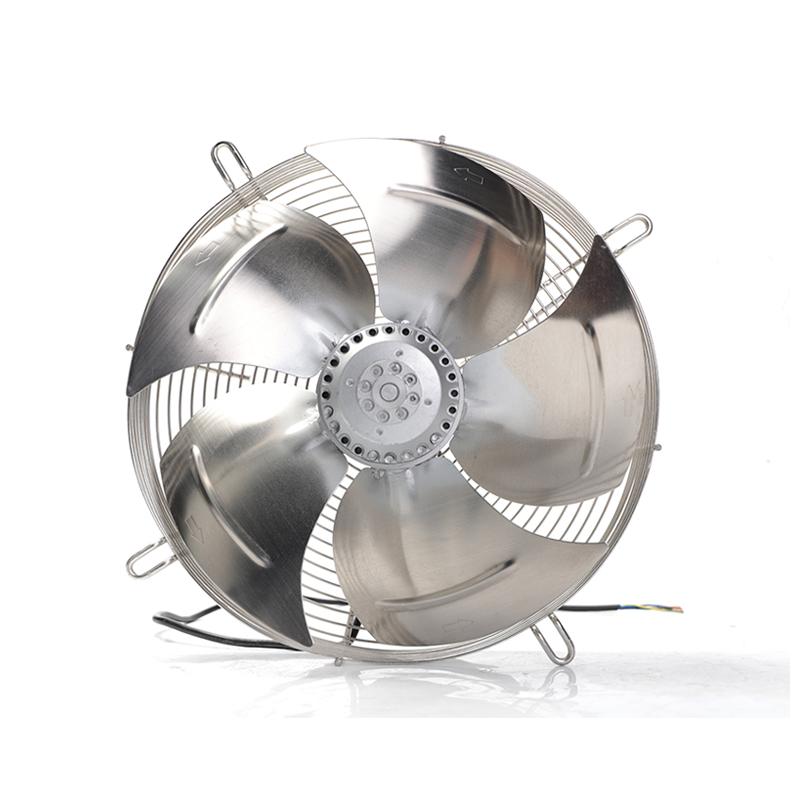

Blades of the YWF outer rotor axial flow fan are directly welded to the outer rotor. And the rotor connectiong to blades is rotated outside the stator,which has advantages of compact structure,space saving and exquisite design.

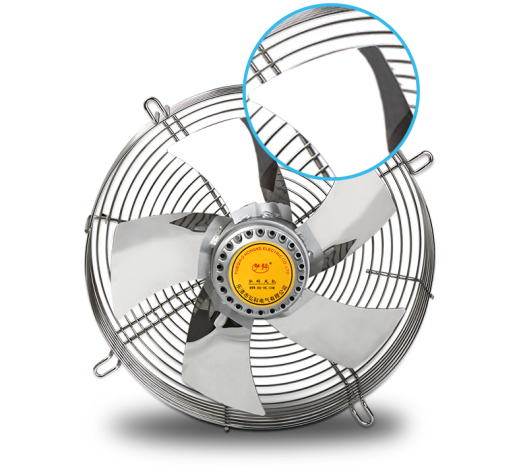

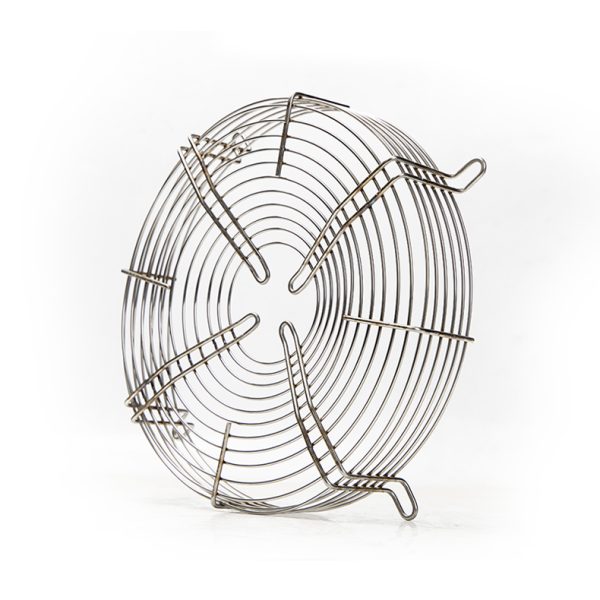

The metal enclosure series of the axial flow fan is made from cold punching molds,with high dimensional accuracy and satisfactory consistency.There are also aluminum fan blades,and stainless-steel fan blades for the above model,The aluminum wheel hub,aluminum junction box, mesh enclosure,plastic ventilating fan casing are available for mathching or can be customized with samples or drawings.

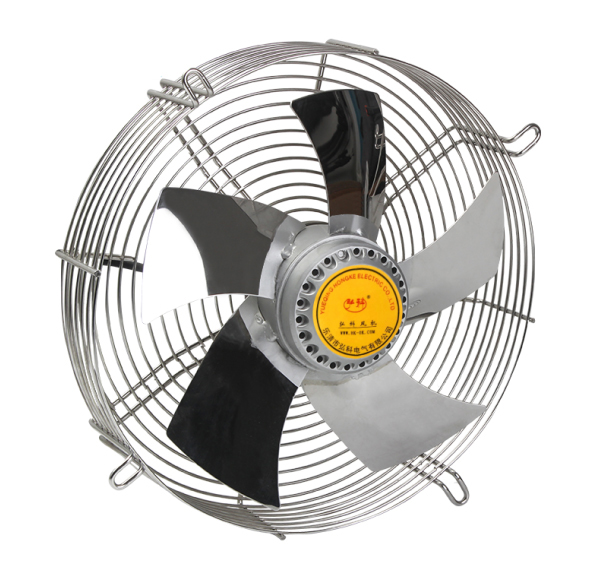

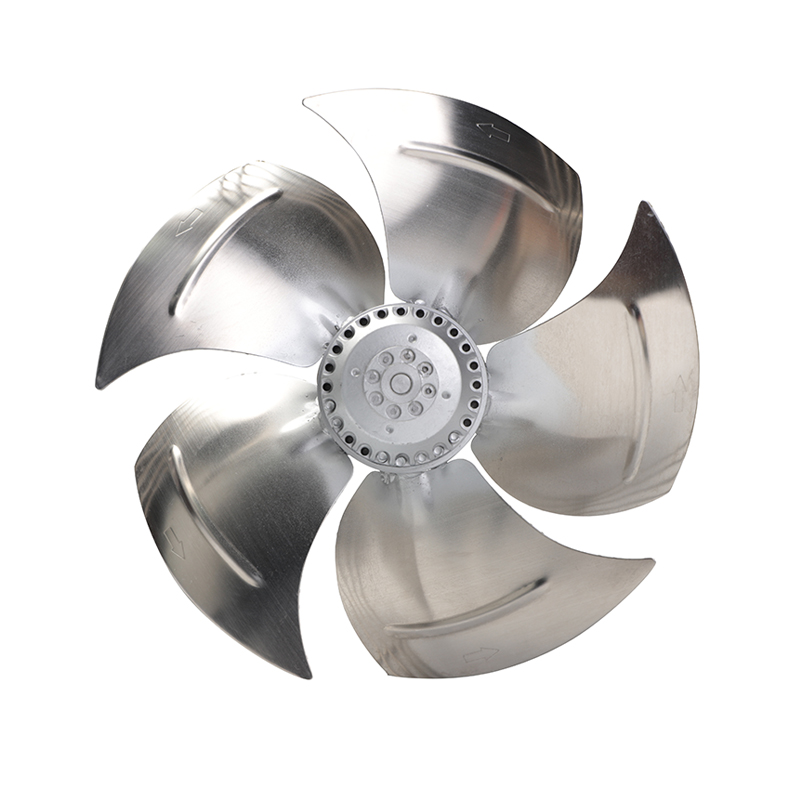

Stainless steel fan blades increase the contact surface with the air ,so that the air volume is larger

Product details:

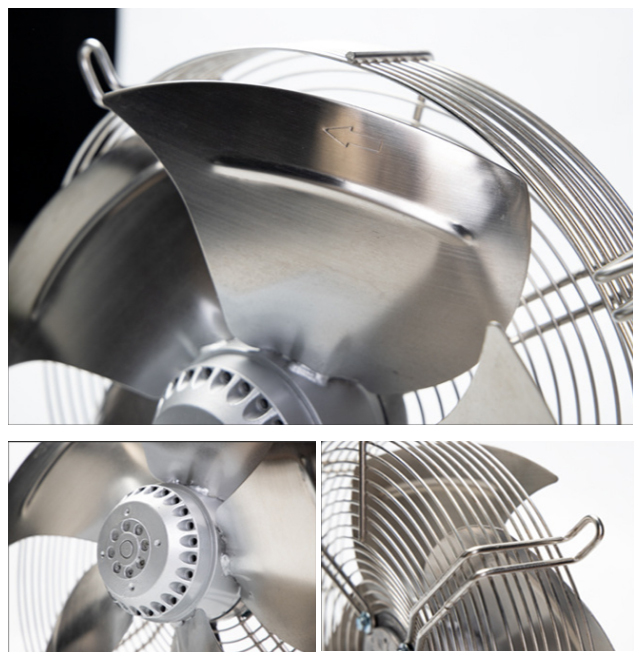

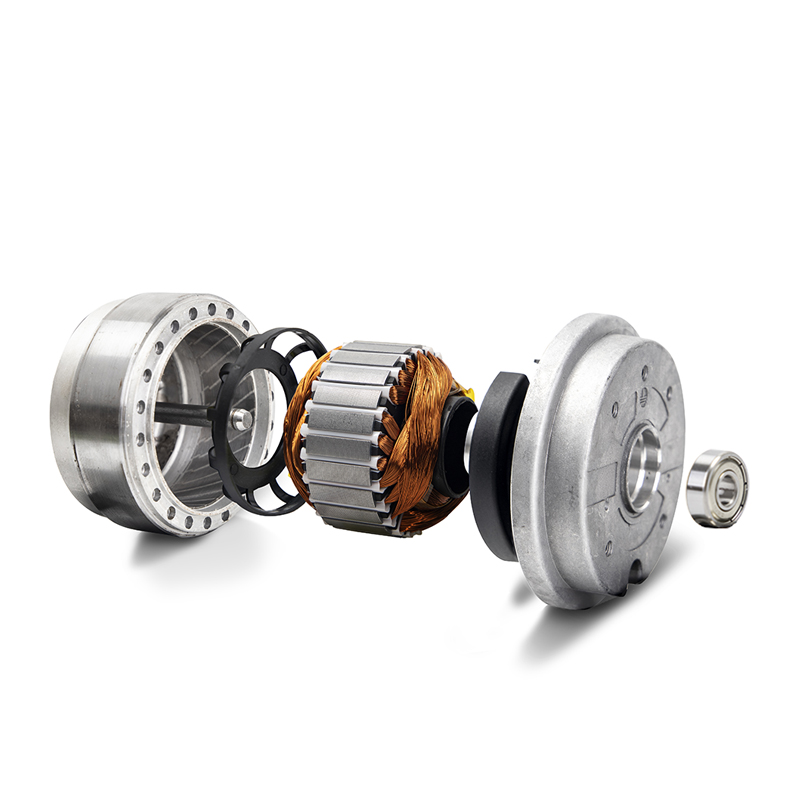

Fixed anti-seismic design fine copper external rotor motor

Technique parameters

Fan blade diameter(mm)	Model	Voltage (V)	Current (A)	Power (W)	Speed (min)	Air volume (m3/h)	Noise (dBA)
Φ250	YWF4E-250	220	0.25	50	1400	710	55
	YWF4D-250	380	0.18	55	1400	735	55
Φ300	YWF4E-300	220	0.42	85	1350	1170	58
	YWF4D-300	380	0.32	90	1350	1300	58
Φ350	YWF4E-350	220	0.75	150	1400	2260	62
	YWF4D-350	380	0.42	150	1400	2280	56
Φ400	YWF4E-400	220	0.9	190	1350	3830	66
	YWF4D-400	380	0.5	190	1370	3980	66
Φ450	YWF4E-450	220	1.2	250	1350	4600	67
	YWF4D-450	380	0.64	250	1380	4760	67
Φ500	YWF4E-500	220	2	420	1320	6420	72
	YWF4D-500	380	0.85	420	1350	6560	72
Φ550	YWF4E-550	220	2.5	530	1300	8020	75
	YWF4D-550	380	1.1	550	1330	8740	75
Φ600	YWF4E-600	220	3.5	750	1380	10020	77
	YWF4D-600	380	1.5	800	1350	10840	77
Φ630	YWF4E-630	220	3.7	800	1360	10830	78
	YWF4D-630	380	1.6	850	1320	12250	78

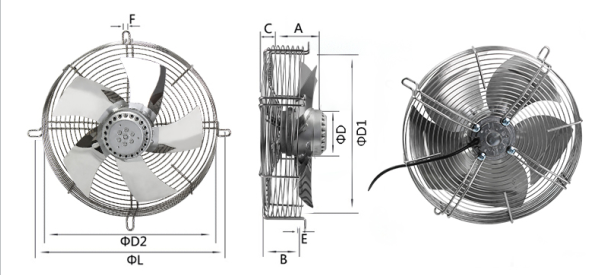

Model	Φ	A	B	C	ΦD	ΦD1	ΦD2	ΦE	F	ΦW	ΦQ
YWF-250	320	80	75	20	90	250	280	4	7	40	60
YWF-300	360	80	80	30	90	300	320	4	7	40	60
VWF-350	420	100	80	30	100	350	375	5	9	65	90
VWF-400	470	120	90	30	100	400	420	5	9	65	90
YWF-450	520	120	90	30	100	450	475	5	9	65	90
YWF-500	565	140	90	30	140	500	525	6	10	85	120
VWF-550	625	140	100	30	140	550	575	6	10	85	120
YWF-600	680	165	100	30	140	600	625	6	10	85	120
YWF-630	730	165	100	35	140	630	657	6	10	85	120
