T35-11 low noise axial flow fan high power wall type cylinder duct forced ventilation exhaust fan

描述

Specification:

T35-11 series axial flow fan is composed of impeller, casing, rectifier, motor and other components. It is a new type of fan improved and designed on the basis of t30-11 in China. It has the characteristics of reasonable results, round hub, reduced flow loss, high blade strength, low noise, large air volume, high efficiency, wide range of performance parameters and simple installation. It adopts advanced forward swept blades Low noise inner rotor fan special motor direct drive.

This series of fans are suitable for conveying non explosive, non corrosive and non obvious dust gas. The ambient temperature shall not exceed 60 °, which is widely used for ventilation or strong heating heat dissipation in general projects, warehouses, offices and houses. It can also be installed in series at intervals in long exhaust pipes to improve the pressure in the pipes. When the casing is removed, it can also be used as a free fan.

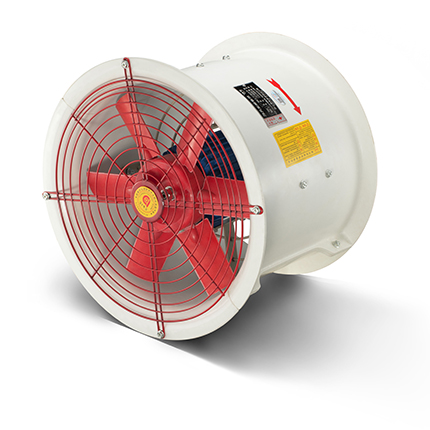

Explosion-proof motors and Aluminum alloy blades

The traditional color still make people happy, and simple tonal collocation, bold stripes can transform bring new look, let you become the new darling.

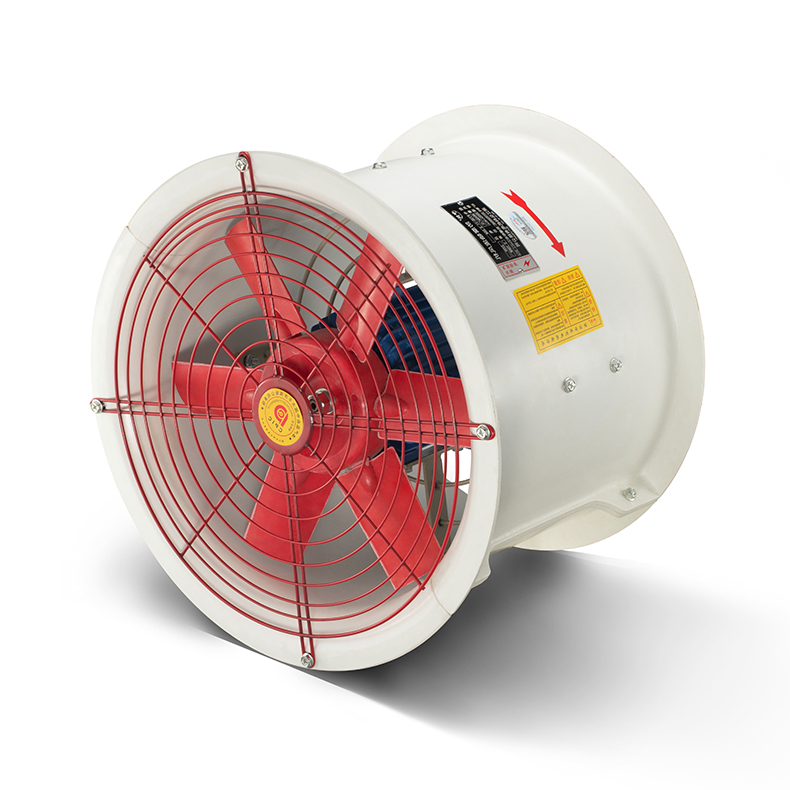

Carbon steel shell

Surface is smooth and flat ,and spray paint treatment by high temperature

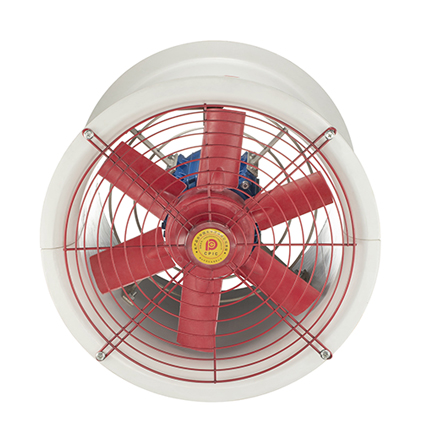

Cast aluminum fan blade

The fan blades run smoothly with large air volume and low noise

Product details

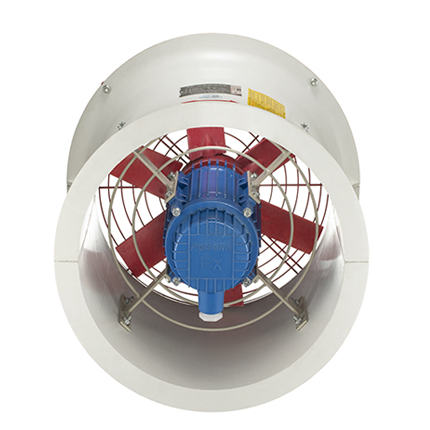

9mm safety net cover, pure copper core wire, cast aluminum explosion-proof motor

Technique parameters:



Model	Diameter of impeller(mm)	Speed(RPM)	Flow(m3/h)	Pressure(Pa)	Power(KW)
2.8	280	2900	2921	186	0.5
		1450	1464	48	0.09
3.15	315	2900	4141	237	0.37
		1450	2072	59	0.12
3.55	355	2900	5965	300	0.75
		1450	2977	71	0.18
4	400	2900	8513	380	1.1
		1450	4263	95	0.25
4.5	450	1450	6070	120	0.37
5	500	1450	8327	149	0.55
		960	5566	64	0.37
5.6	560	1450	11682	186	1.1
		960	7724	81	0.37
6.3	630	1450	16639	236	1.5
		960	11016	101	0.75
7.1	710	1450	23815	300	3
		960	15766	131	0.75
8	800	1450	34073	380	5.5
		960	22556	167	1.5
9	900	960	32119	211	3
10	1000	960	44062	261	4
11.2	1120	960	61091	337	7.5

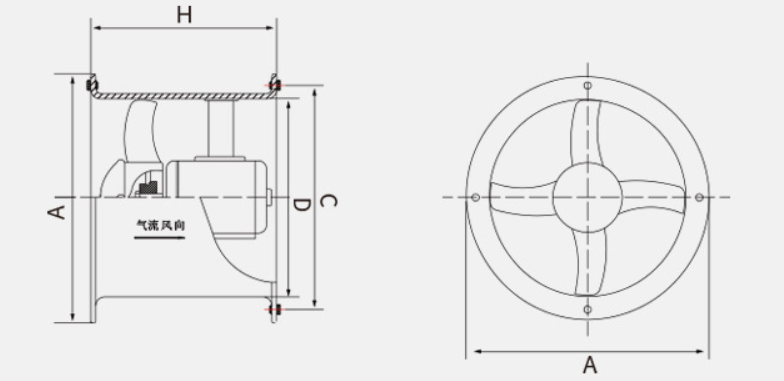

Specification model	A	D	C	H	Mounting holes	Number of blades
T35-11 2.8#	323	282	308	291	4-Φ7.5	4
T35-11 3.15#	354	317	340	291	4-Φ7.5	4
T35-11 3.55#	298	363	382	343	4-Φ7.5	4
T35-11 4#	450	412	432	345	4-Φ7.5	4
T35-11 4.5#	502	459	481	354	4-Φ7.5	4
T35-11 5#	550	512	531	375	4-Φ7.5	4
T35-11 5.6#	608	567	586	413	Adjustable fan blade	4
T35-11 6.3#	680	637	657	485	Adjustable fan blade	4
T35-11 7.1#	765	708	735	495	Adjustable fan blade	4
T35-11 8#	850	795	823	500	Adjustable fan blade	/
T35-11 9#	946	908	936	685	Adjustable fan blade	/
T35-11 10	1096	1020	1058	695	Adjustable fan blade	/
T35-11 11.2#	1202	1146	1174	695	Adjustable fan blade	/
