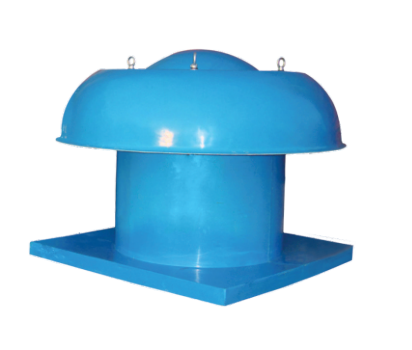

WT35-11 (DWT-I) series roof ventilator

The roof fan is mainly used for ventilating in petroleum, chemical, textile, metallurgical and mechanical plants, offices, warehouses， and other buildings. It can be installed on the
roof and walls according to different structural forms of buildings and use needs. And the temperature of the working medium should be 25℃ with the relative humidity less than 90%. Also, the dust content of the medium (containing solids and impurities) should be less than 100mg/m3.

Power：0.37KW-7.5KW
Air volume：2072m3/h-56909m³/h
Rotating speed：960r/min-2900r/min

Please click the inquiry button below to contact us

Click here to inquire
分类： ,

描述

Specification:

DWT Roof Axial FanExhaust air cooling, strong suction, durable and anti-corrosionFRP body

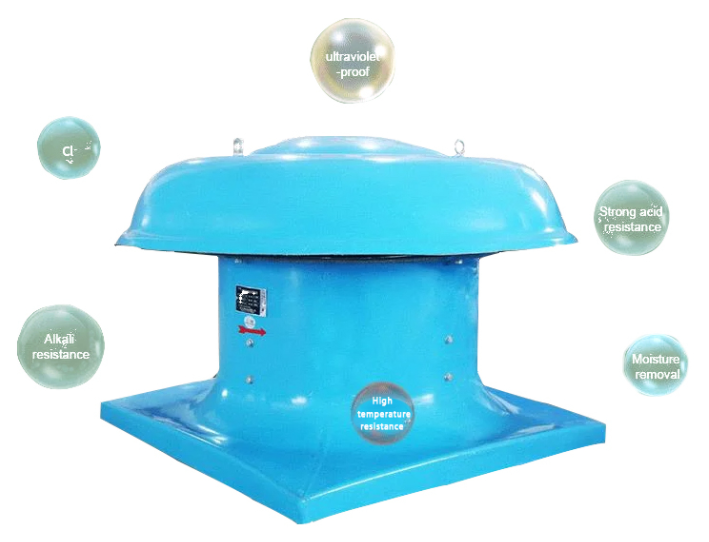

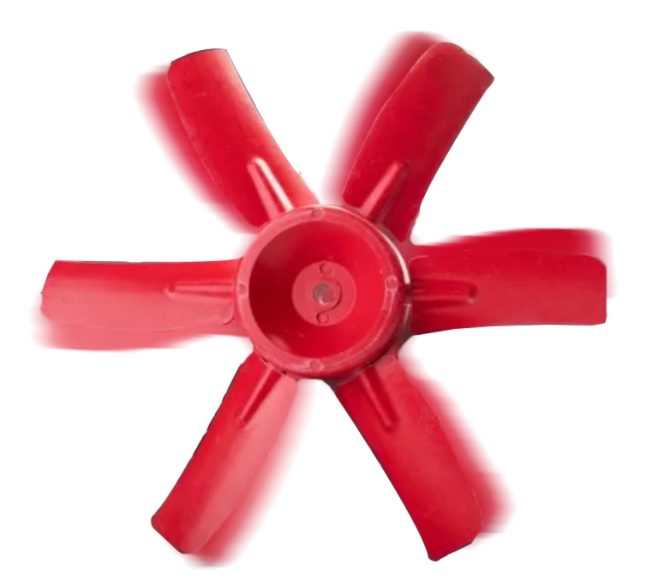

FRP shell, adapt to various acid and alkali environments, anti-corrosion moisture-proof, dust-prooAnti-corrosion and anti-rust of the wind blade,high strength and not easy to deform,stable operation

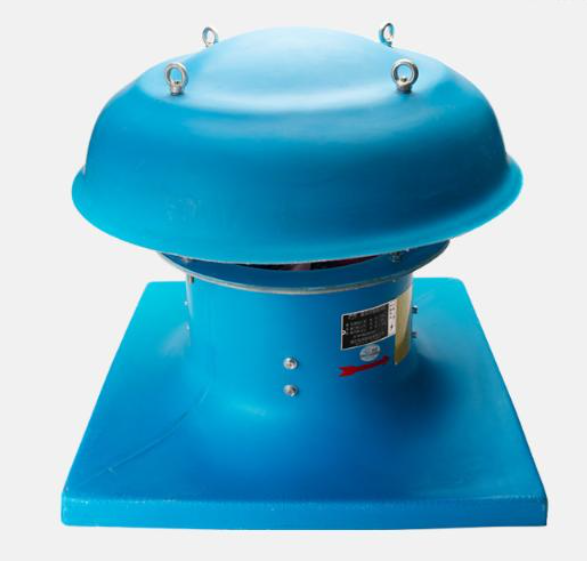

Product Details

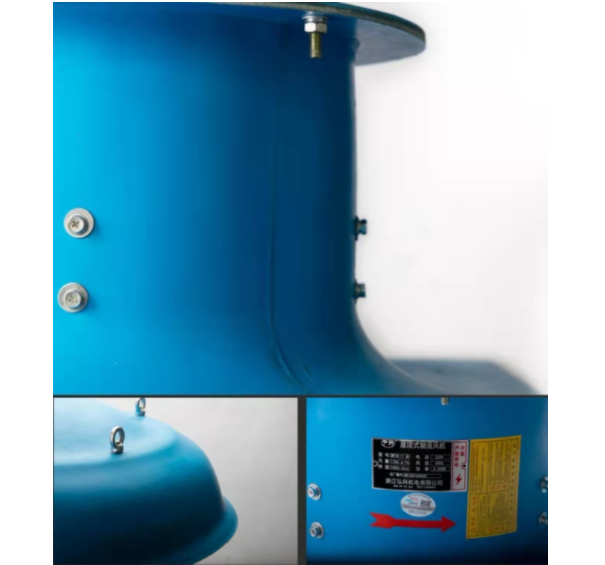

The body is made of glass fiber reinforced plastic, seamlessly integrated, suitable for various harsh environments

Technique parameters:

Machine Voltage(V) Air volumelot(m/h) all pressure(Pa) Power(Kw-P)
3 380 1784 60 0.25-4
380 3202 232 0.37-2
4 380 4800 119 0.55-4
380 9336 474 1.1-2
5 380 9300 185 0.75-4
6 380 16025 294 1.5-4
7 380 20350 373 2.2-4
8 380 25200 474 3-4
9 380 34340 263 4-6
10 380 42300 321 5.5-6
11.2 380 46000 / 7.5-6

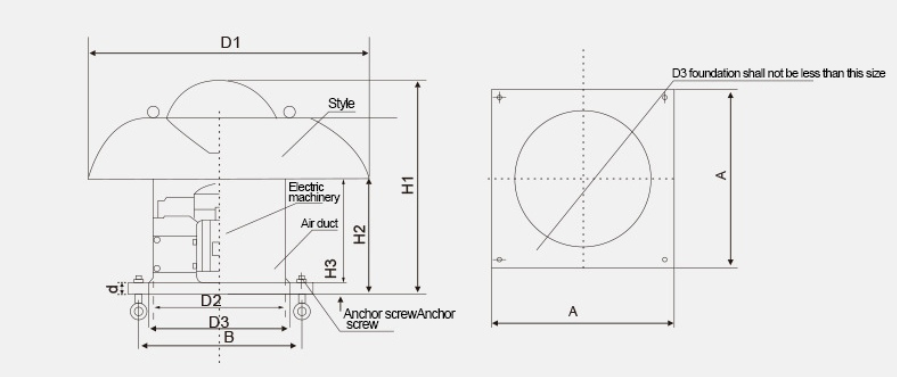

Machinenumber D1 D2 D3 A H1 H2 H3 d Weight(Kg)
3 Φ590 Φ335 Φ435 585 520 340 295 45 8.4
4 Φ655 Φ420 Φ505 655 635 445 405 40 16.2
5 Φ900 Φ520 620 760 610 410 355 55 20
6 Φ1000 Φ620 Φ735 885 690 445 380 65 29
7 Φ1201 Φ720 Φ790 1020 888 610 535 75 44
8 Φ1340 Φ810 Φ925 1110 870 580 530 50 /
9 Φ1650 Φ910 Φ1030 1260 900 600 540 60 /
10 Φ1650 Φ1010 Φ1140 1410 950 650 590 60 /
11.2 Φ1800 Φ1140 Φ1275 1550 1040 700 640 60 /
