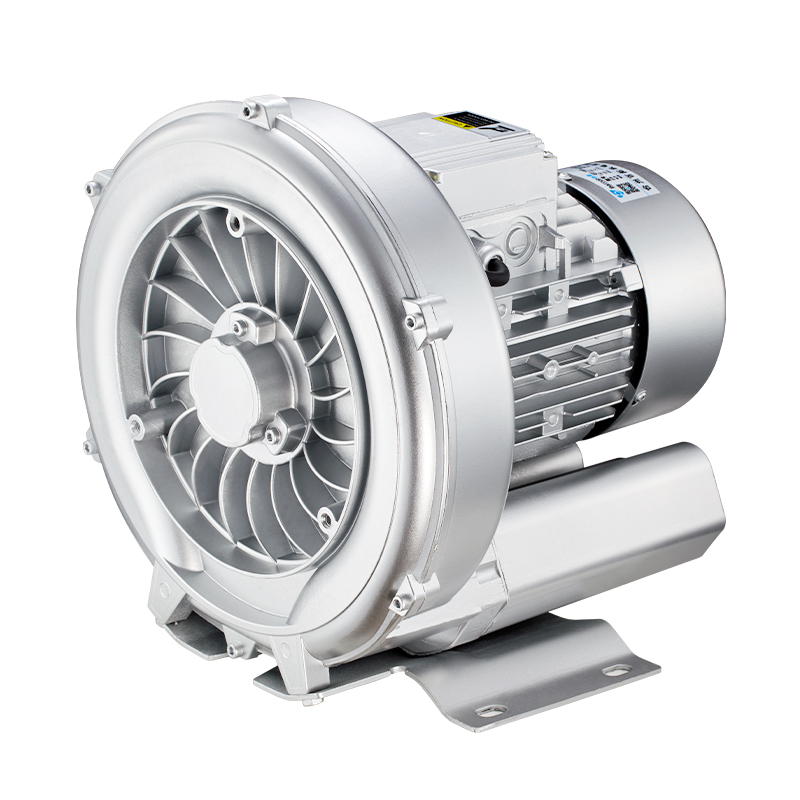

XBG High pressure fan 220V vortex fan electric fan

Description

Specification:

Vortex fan has been widely applied in foreign countries,especially in certain flow and pressure range can replace the air compressor, water ring pump, vane pump, and can greatly reduce equipment investment, especially as the oil industry, light industry, food, textile and environmental protection and other industries, the rapid development of domestic and foreign research and development of vortex blower will unceasingly thoroughly.

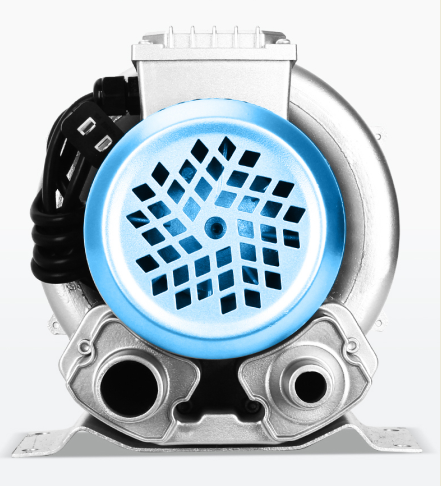

GOOD HEAT DISSIPATION
Surface phosphating electrostatic spray paint
Uniform color,good heat dissipation performance

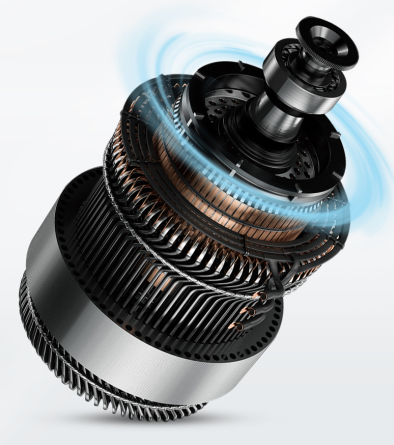

COPPER MOTOR
Copper coil is stable and durable enough to have a long life

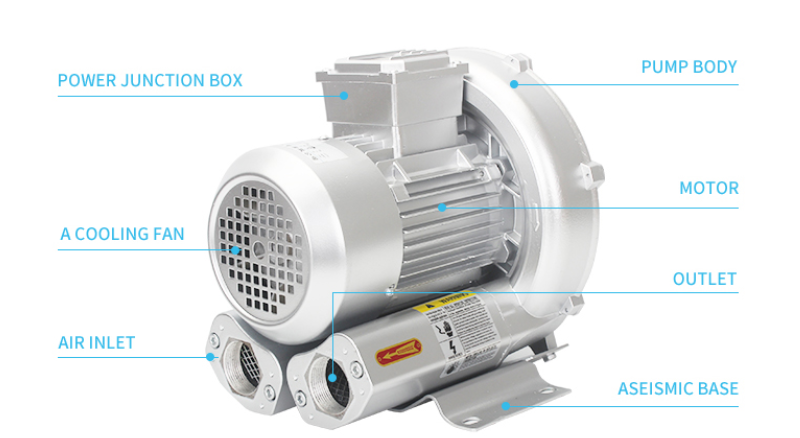

THE DETAILS SHOW
TERMINAL BLOCK
Tightly connected,compact appear appearance,high quailty,high quality and long service life

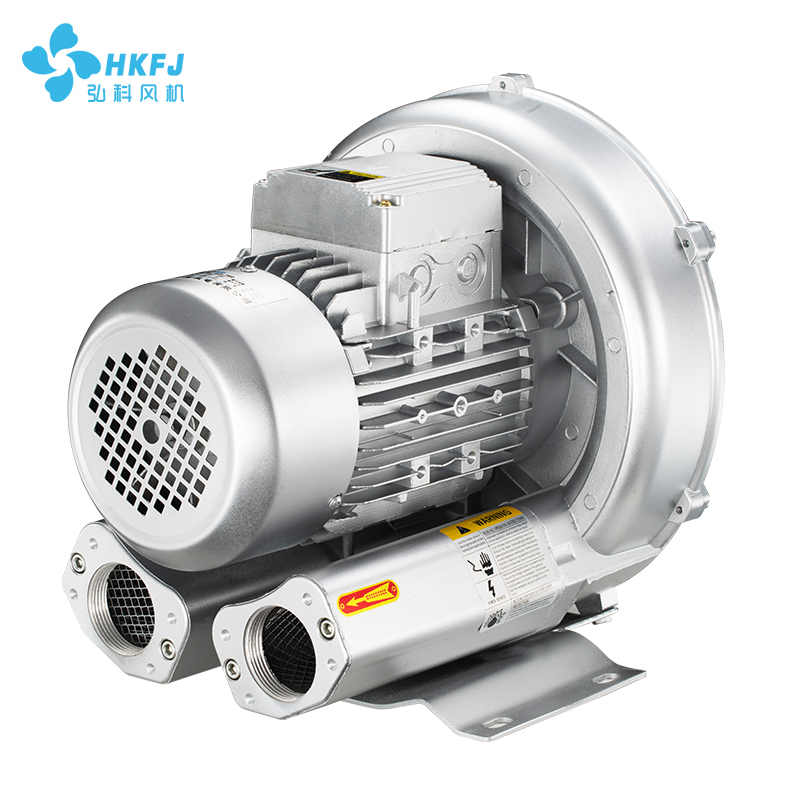

EXPORT DESIGN
The inlet and outlet are equipped with a filter screen ,effectively filter soil impurities,
keep the fan clean inside

Technique parameters:

Model	Power (W)	Voltage (V)	Current (A)	Wind pressure (Pa)	Suction pressure (Pa)
XBG-110	120	220	0.6	5.5	5
XBG-250W	250	220	1.75	8.2	6.7
XBG-212	370	220/380	2/0.97	12	11
XBG-310	550	220/380	3.5/1.2	14	13
XBG-410	750	220/380	6.5/2	21	20
XBG-510	1100	220/380	7.2/3.1	24	22
XBG-511	1500	220/380	9/3.4	27	24/25
XBG-712	3000	380	7	38	35
XBG-713A	4000	380	8.2	45	41
XBG-811	5500	380	12	50	48
XBG-812	7500	380	15.5	56	51
XBG-11KW	11000	380	21.5	62	55
XBG-711	2200	220	10	36	33
